3 - Hopper Module Replacement Procedure

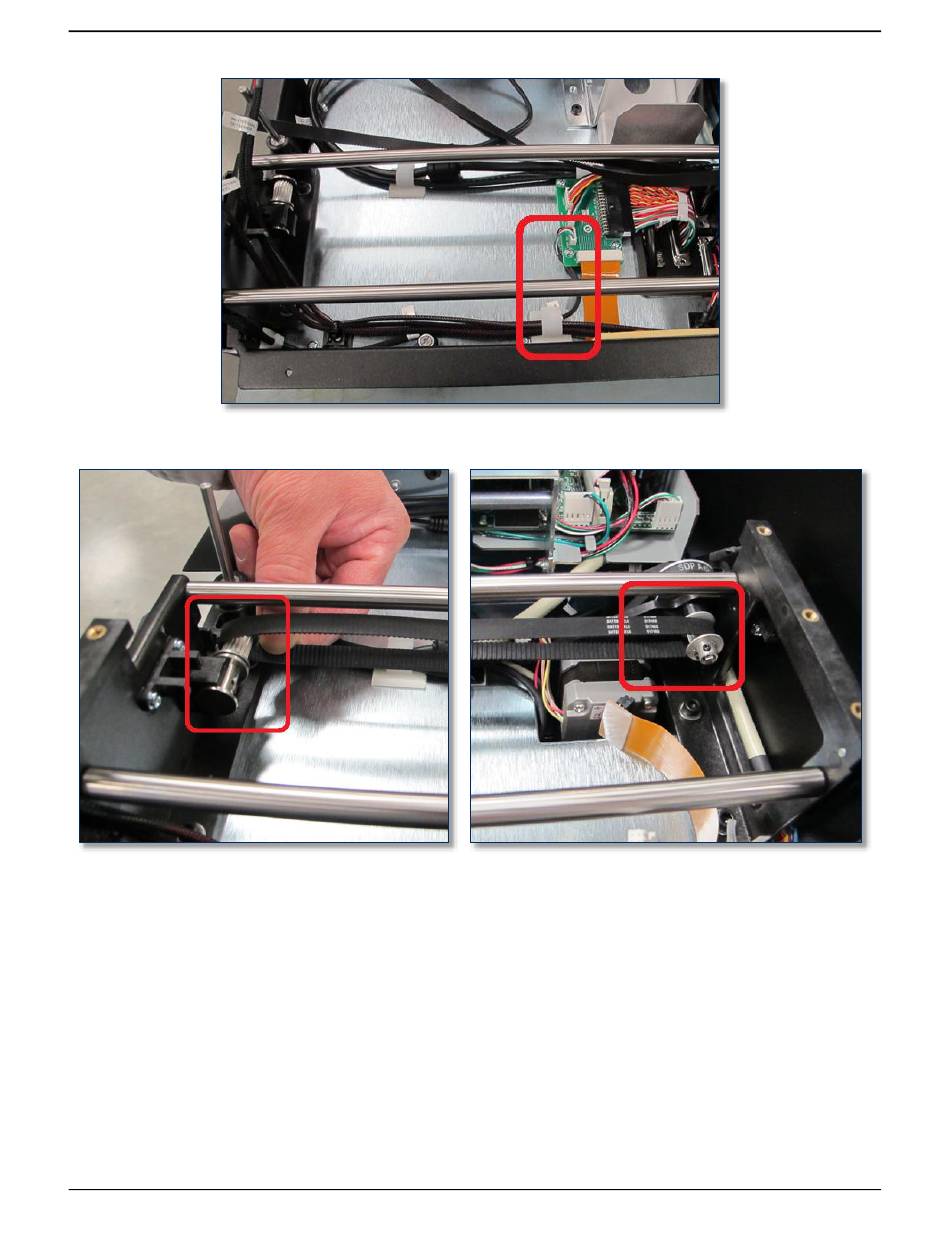

27) Slip the hopper's drive belt over the geared pulleys at the front and rear of the device.
28) Find the belt tensioner screw on the front of the hopper module. Use the 5/32" hex wrench to tighten
the screw so the top and bottom of the drive belt are parallel with each other and the belt feels tight to
your fingers. During testing, the belt should not slip or make grinding sounds. If it does, the tension
may need to be re-adjusted.
ExpressCard 2000| Instant Issuance Card Personalization System | Hopper Module Replacement Procedure
Page 32 of 42 (D99875700-30)
