3 - Hopper Module Replacement Procedure

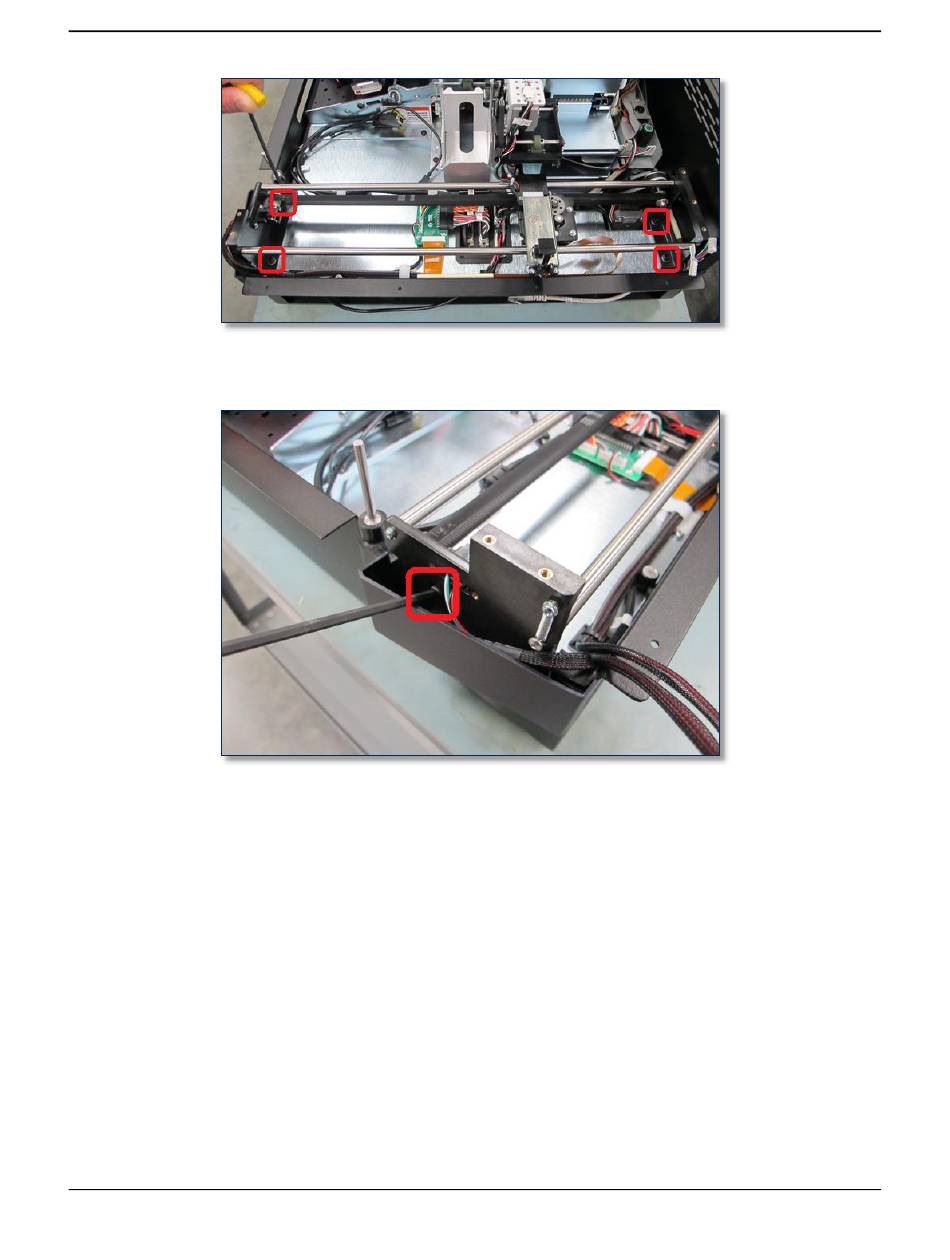

10) Find the belt tension screw on the front of the hopper module. Use the 5/32" hex wrench to loosen
the screw just until the belt is loose enough to slip off the geared pulleys.
11) Slip the hopper shuttle belt completely off the pulley near the rear of the device.
ExpressCard 2000| Instant Issuance Card Personalization System | Hopper Module Replacement Procedure
Page 11 of 42 (D99875700-30)
