3 - Hopper Module Replacement Procedure

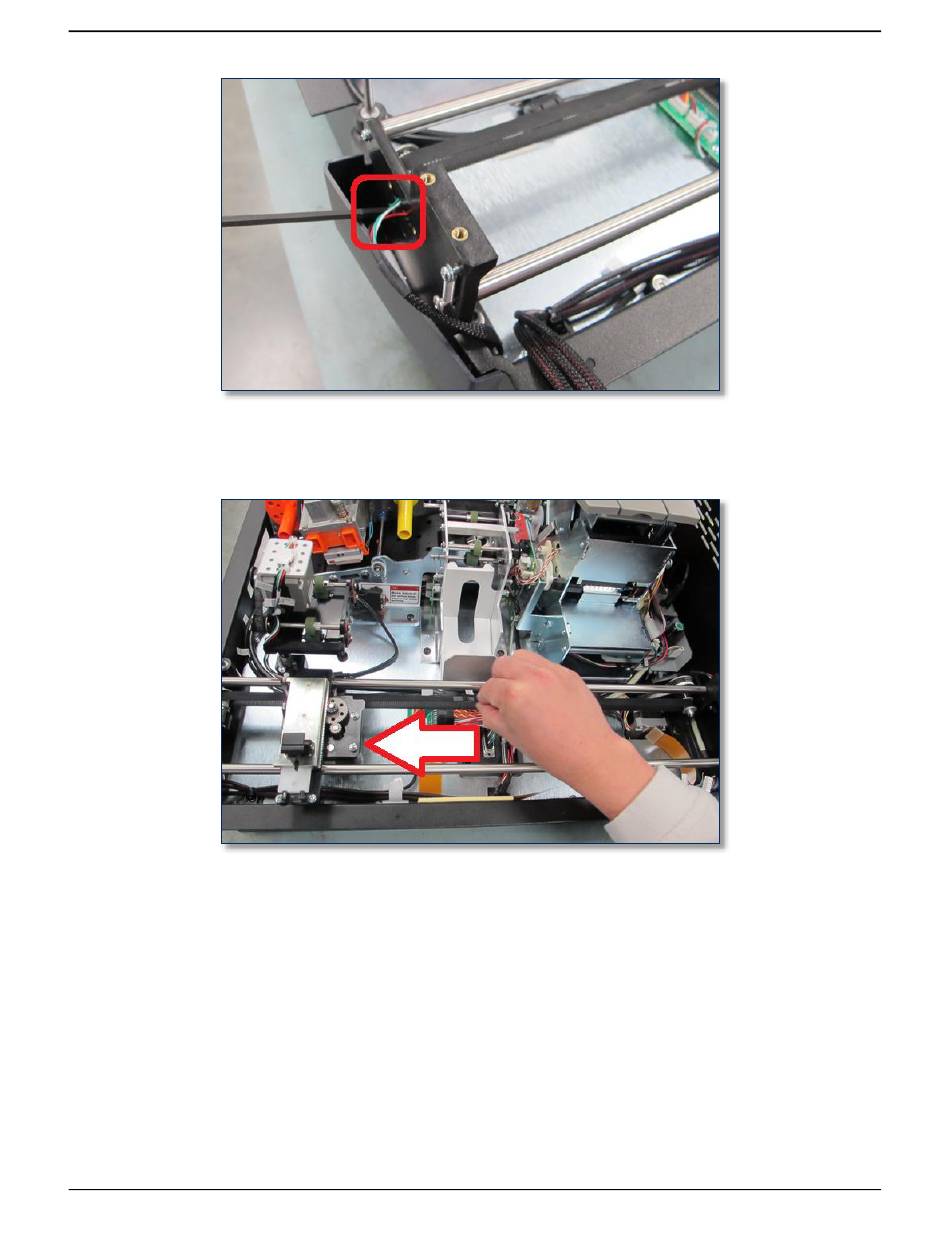

29) Pull on the hopper shuttle drive belt to move the hopper shuttle to the front of the device, just past
hopper 7 and before it rotates to the manual feed slot. Do not pull on the hopper shuttle directly or
you may damage it.
30) Remove the protective backing from the foam tape on the hopper shuttle motor.
ExpressCard 2000| Instant Issuance Card Personalization System | Hopper Module Replacement Procedure
Page 33 of 42 (D99875700-30)
