3 - Hopper Module Replacement Procedure

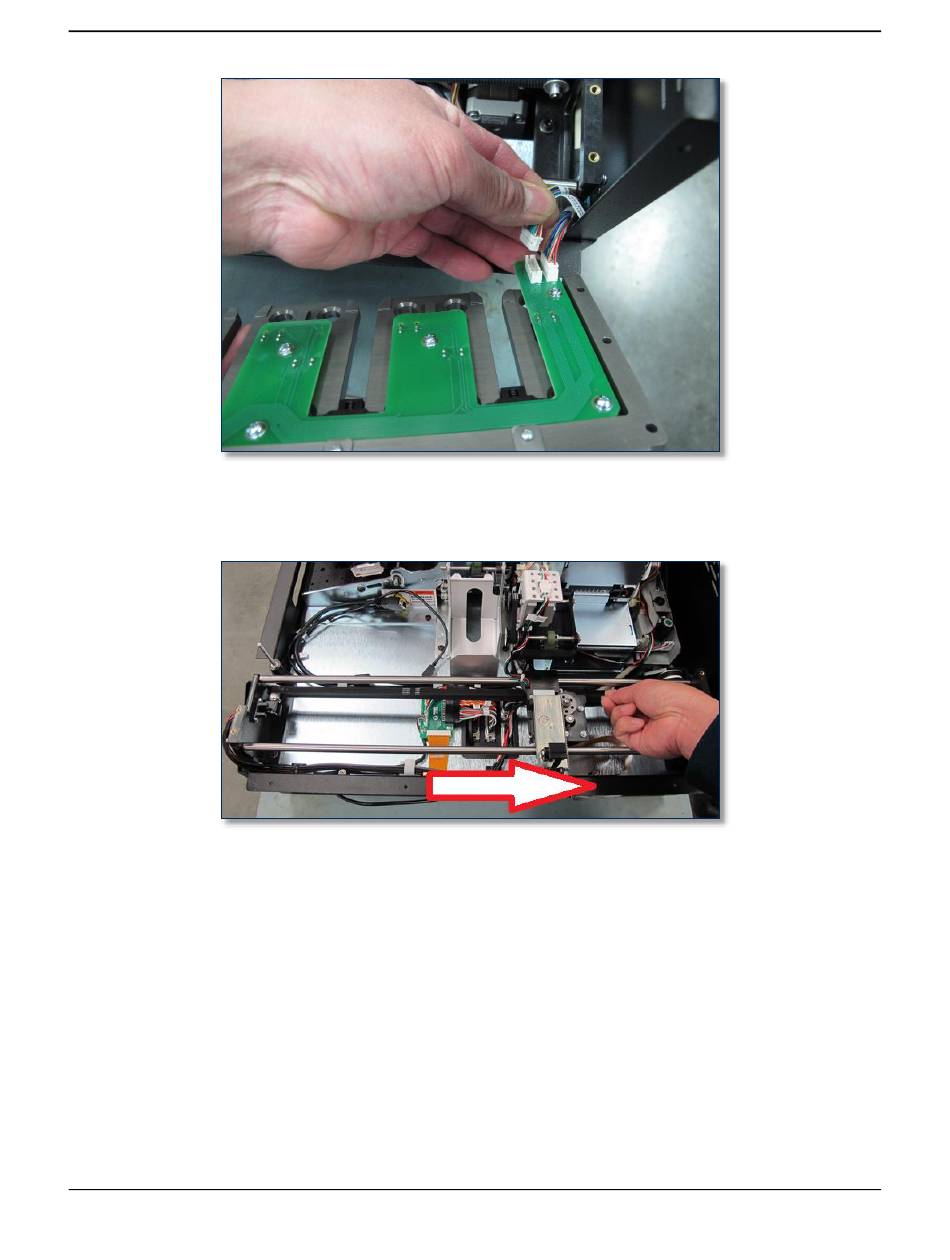

8) Pull on the hopper shuttle drive belt to move the hopper shuttle toward the rear of the device, past the
connectors on the top deck plate. Do not pull directly on the hopper shuttle or you may damage
it.
9) Use the 5/32" ball end hex wrench to remove the four screws and washers that hold the four corners
of the hopper module to the top deck plate, and set them aside for later use.
