3 - Hopper Module Replacement Procedure

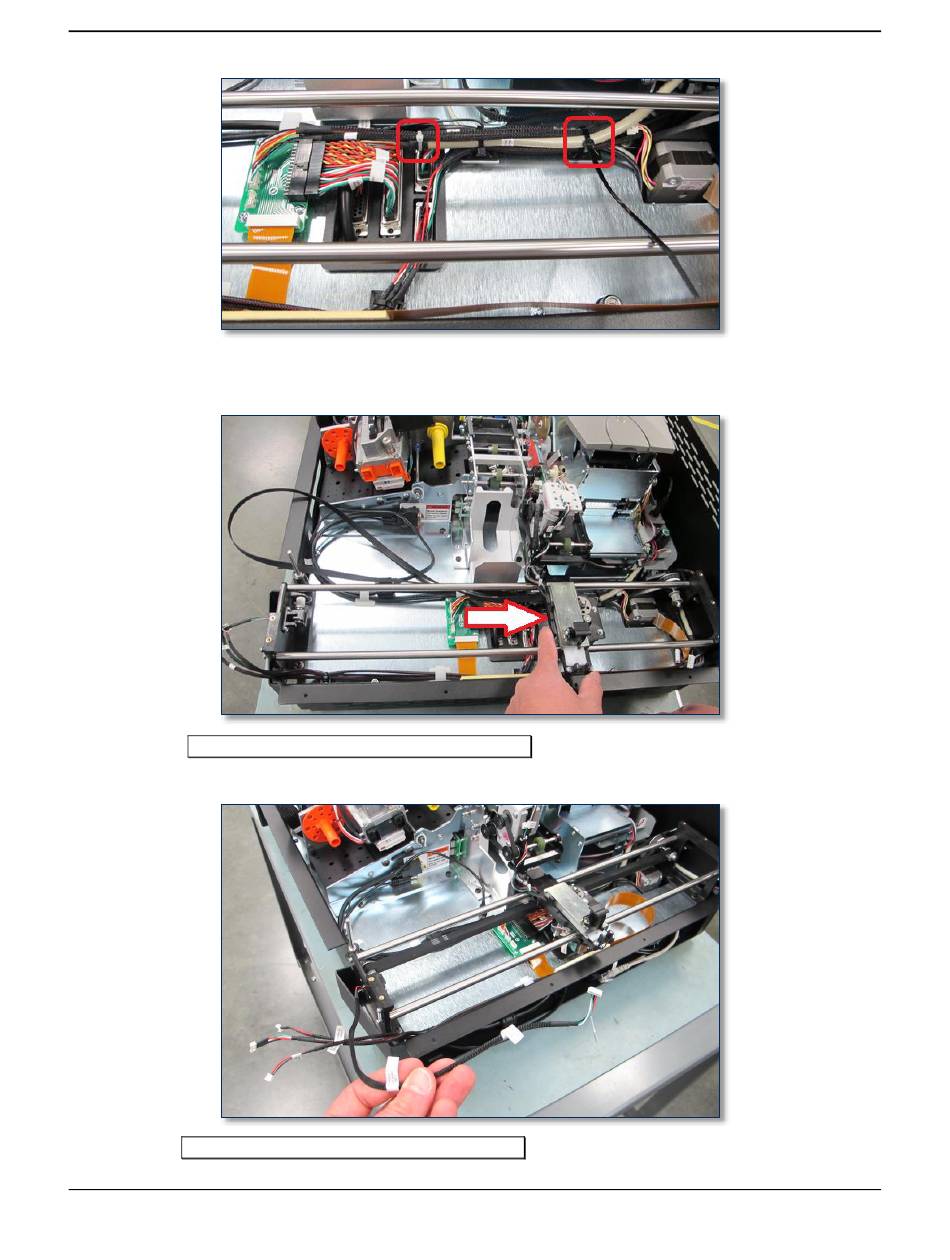

20) Gently push the hopper shuttle toward the rear of the device, past the connectors on the top deck
plate.
21) Locate the
HOPPER SHUTTLE EXC HOME SENSOR
module.
22) Route the
HOPPER SHUTTLE EXC HOME SENSOR
along the right side of the device.
ExpressCard 2000| Instant Issuance Card Personalization System | Hopper Module Replacement Procedure
cable underneath the other cables that run
Page 29 of 42 (D99875700-30)
cable attached to the front of the hopper
