3 - Hopper Module Replacement Procedure

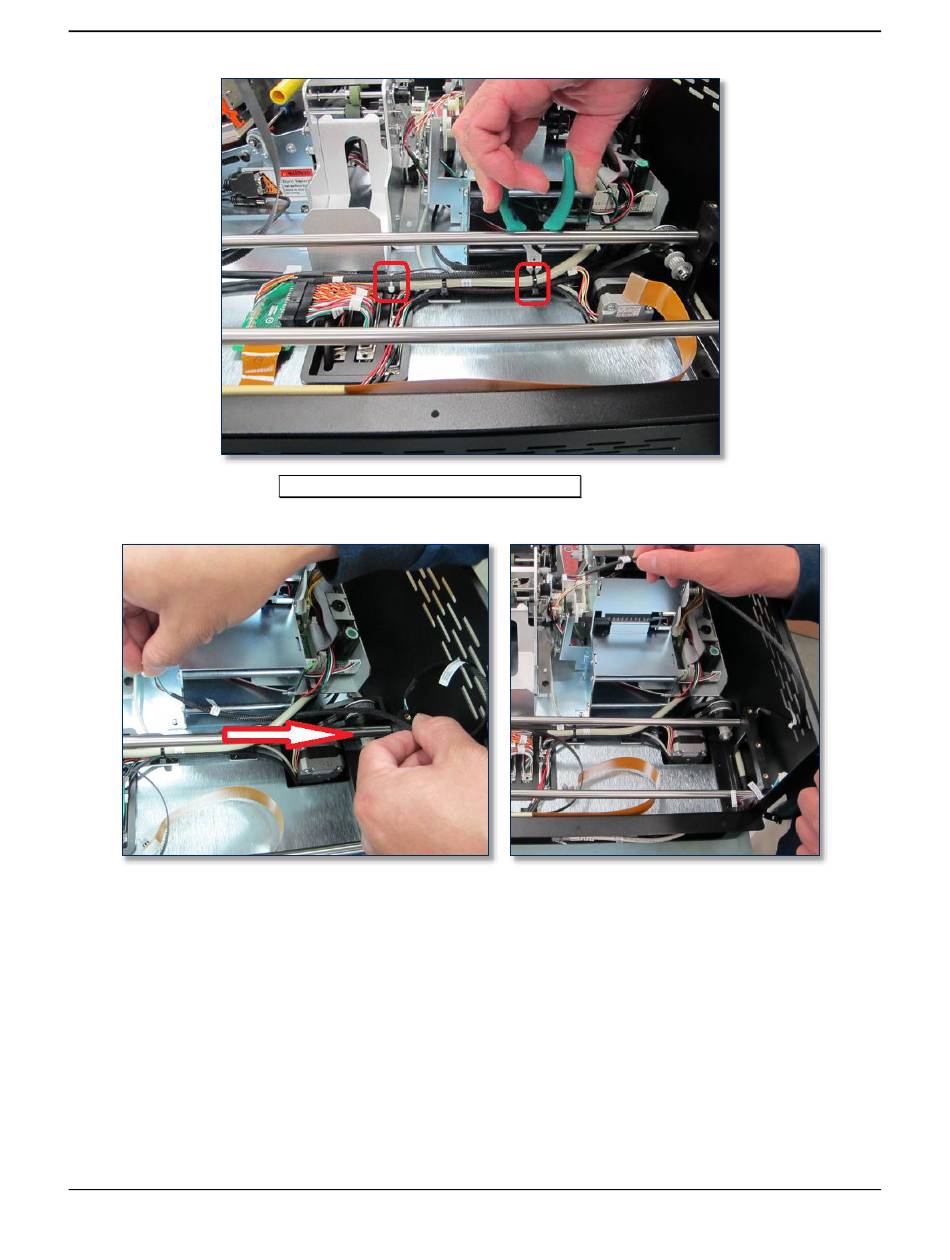

24) Carefully unthread the
cable from its routing path to free it
HOPPER SHUTTLE HOME SENSOR
completely from the device, leaving it connected to the rear of the hopper transport module.
25) Gently push the hopper shuttle to the middle of the device.
ExpressCard 2000| Instant Issuance Card Personalization System | Hopper Module Replacement Procedure
Page 17 of 42 (D99875700-30)
