3 - Hopper Module Replacement Procedure

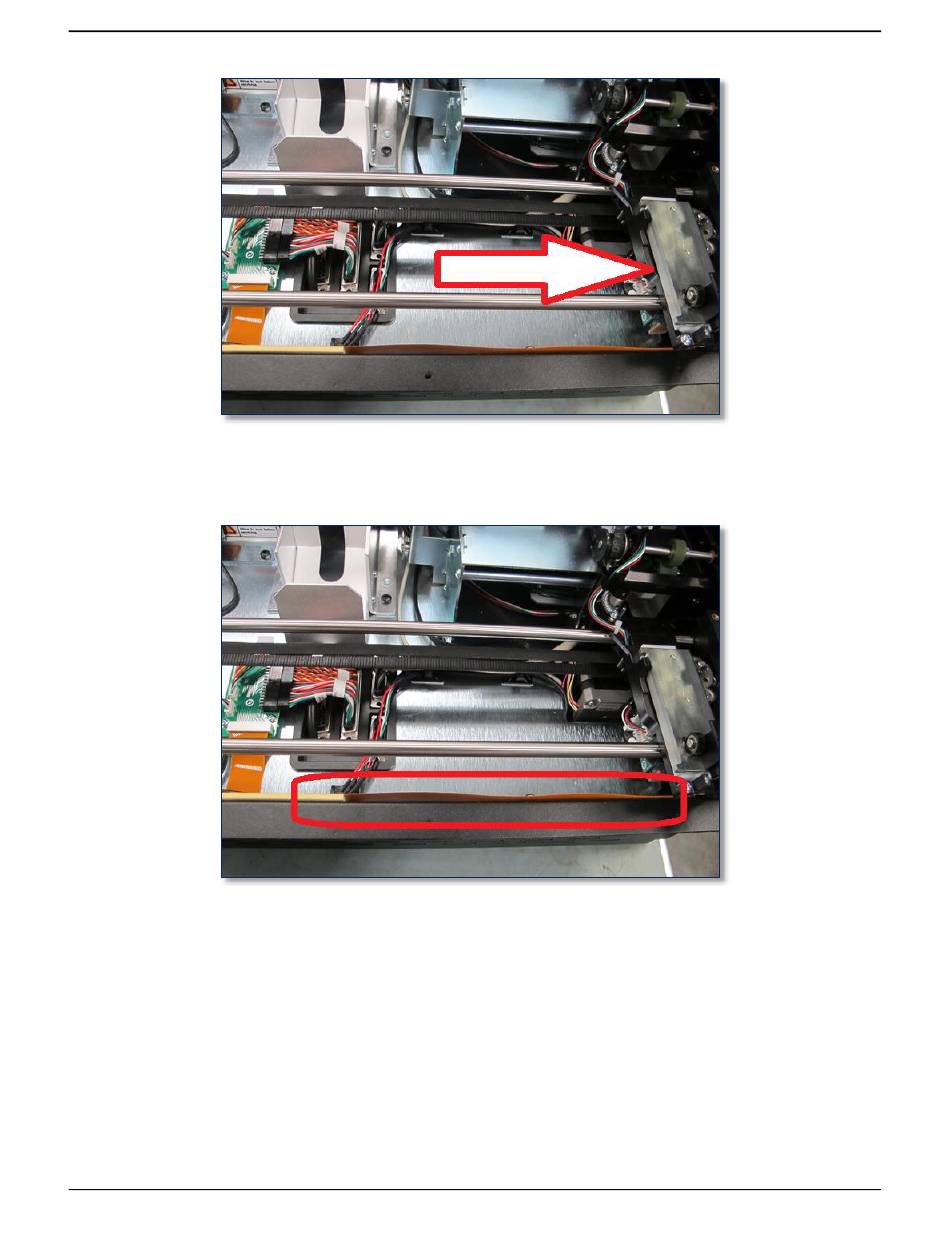

37) Make sure the flex cable naturally finds its way to laying flat against the inside of the case. If it is not
laying flat against the case, the flex cable may need to be replaced or re-installed per the steps in
D998200047 ExpressCard 2000 Hopper Flex Cable Replacement Procedure.
38) Pull on the hopper shuttle drive belt to move the hopper shuttle a few inches toward the front of the
device so it is out of the way of the two legs of the hopper transport module. Do not pull on the
hopper shuttle directly or you may damage it.
