3 - Hopper Module Replacement Procedure

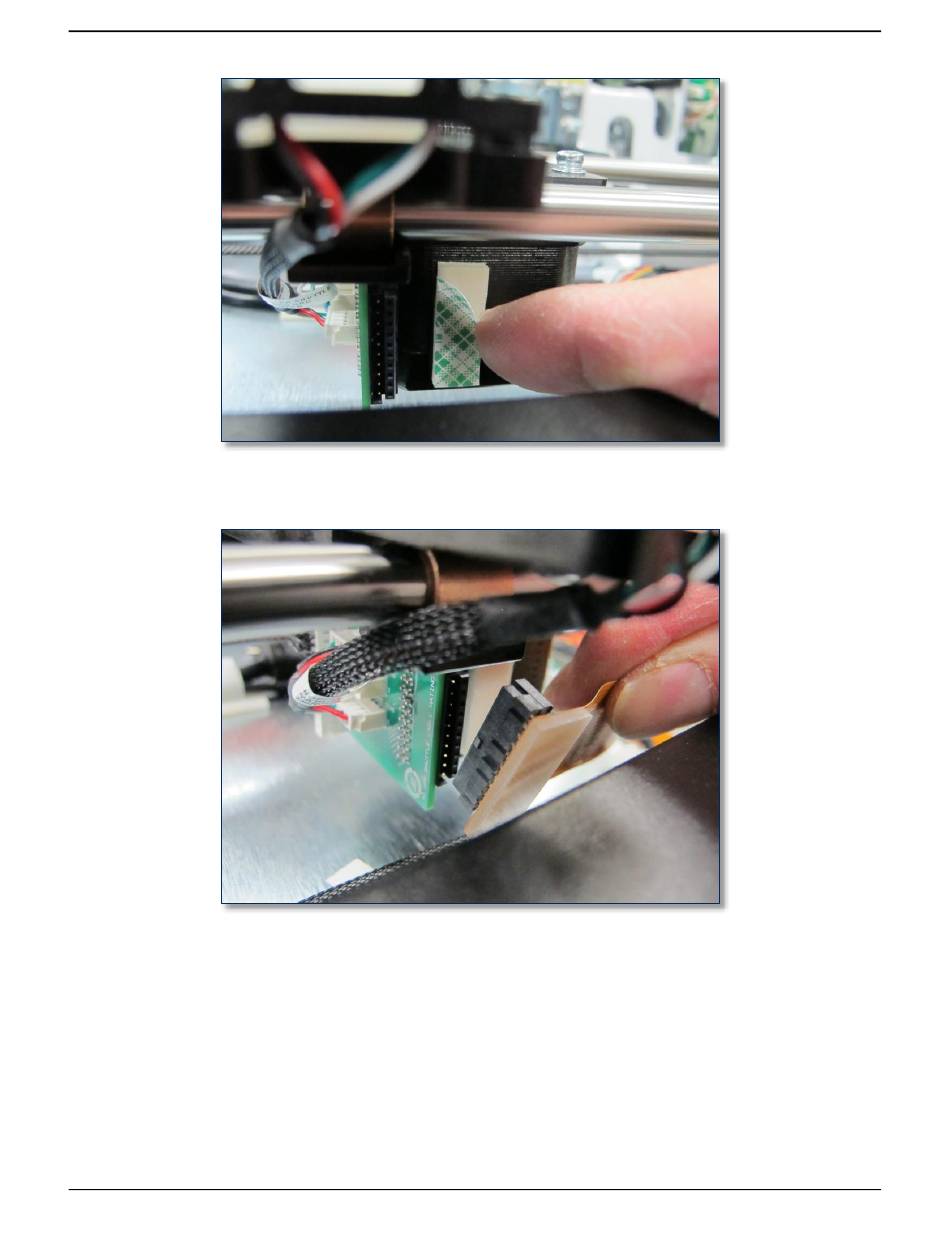

31) Plug the flex cable into the hopper shuttle so it points toward the rear of the device. DO NOT
STICK IT TO THE DOUBLE STICK TAPE.
32) Pull on the hopper shuttle drive belt to move the hopper shuttle all the way to the front of the device,
until it rotates completely into the manual feed position and stops.
ExpressCard 2000| Instant Issuance Card Personalization System | Hopper Module Replacement Procedure
Page 34 of 42 (D99875700-30)
