Machxo2 Fpga; Jtag Interface Circuits; Figure 7.4. J1 Header Landing And Led Array Callout; Table 7.7. Machxo2 And Machxo3 Fpga Interface Reference - Lattice Semiconductor MachXO2 Breakout Board User Manual

J1
1
J1
3.3
TDO
TDI
NC
NC
TMS
GND
TCK
8

7.2.3. MachXO2 FPGA

The MachXO2-7000HE-4TG144C is a 144-pin TQFP package FPGA device which provides up to 114 usable I/O in a 20
mm × 20 mm package. 108 I/O are accessible from the breakout board headers.
Table 7.6. MachXO2 and MachXO3 FPGA Interface Reference
Item
Reference Designators
Part Number
Manufacturer
Web Site

7.2.4. JTAG Interface Circuits

For power and programming an FTDI USB UART/FIFO IC converter provides a communication interface between a PC host and
the JTAG programming chain of the Breakout Board. The USB 5V supply is also used as a source for the 3.3 V supply rail. A USB
mini-B socket is provided for the USB connector cable.
Table 7.7. JTAG Interface Reference
Item
Reference Designators
Part Number
Manufacturer
Web Site
© 2014-2022 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as listed at www.latticesemi.com/legal.
All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.
FPGA-EB-02051-2.3
LCM XO 2-7000HE4TG144C

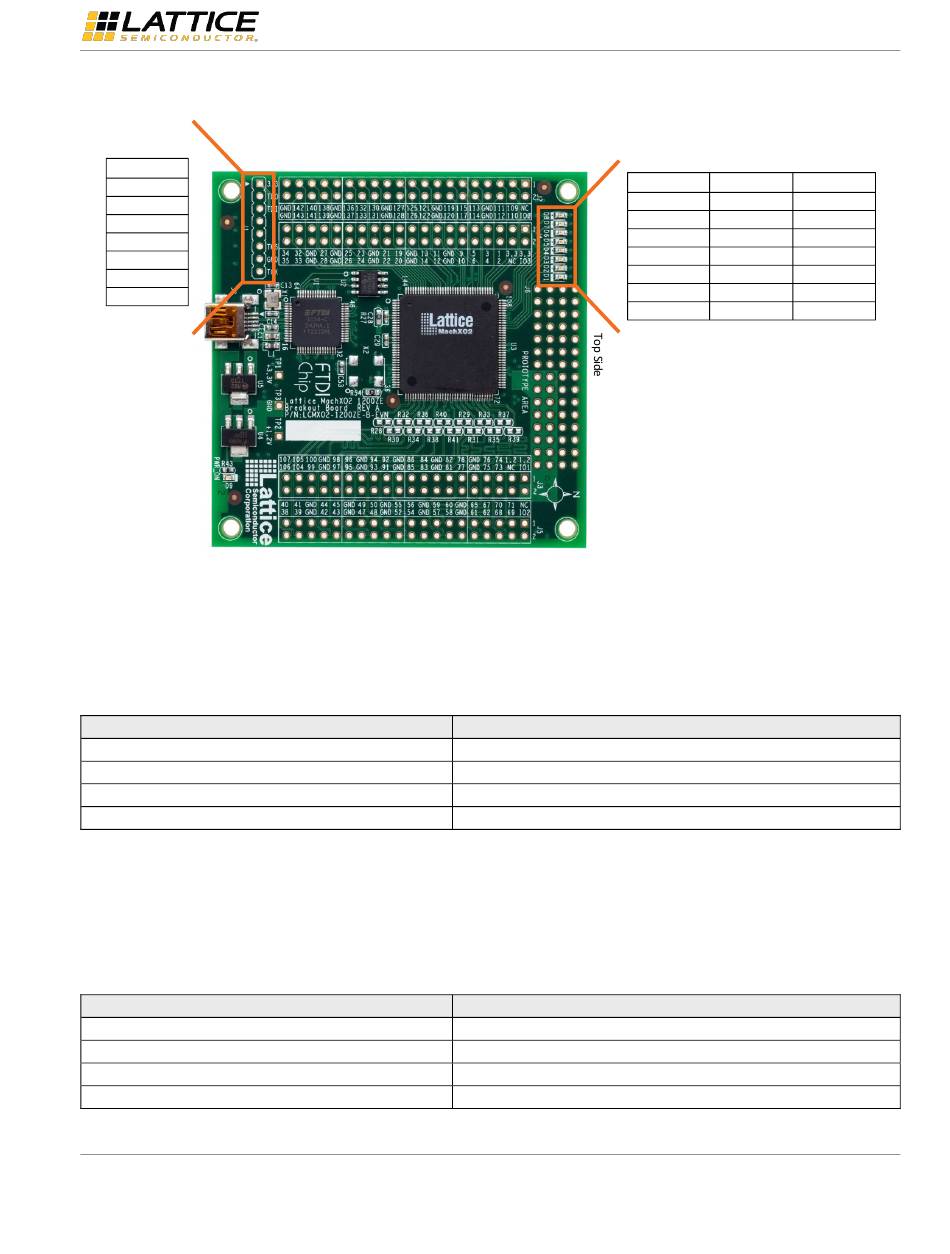

Figure 7.4. J1 Header Landing and LED Array Callout
