MachXO2 Breakout Board Evaluation Kit
Evaluation Board User Guide

7. MachXO2 Breakout Board

This section describes the features of the MachXO2 Breakout Board in detail.

7.1. Overview

The Breakout Board is a complete development platform for the MachXO2 FPGA. The board includes a proto-typing
area, a USB program/power port, an LED array, and header landings with electrical connections to most of the FPGA's
programmable I/O, power, and JTAG pins. The board is powered by the PC's USB port or optionally with external
power. You may create or modify the program files and reprogram the board using Lattice Diamond software.
Bank 3 (–1200ZE)
Bank 3,4, and 5 (–7000HE)
2 × 20 Header
Landing (J4)
© 2014-2022 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as listed at www.latticesemi.com/legal.
All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.
12
Bank 0
2 × 20 Header
Landing (J2)
GPIO
GPIO
MachXO2-7000HE
or 1200ZE device
2 × 20 Header
Landing (J5)
Bank 2

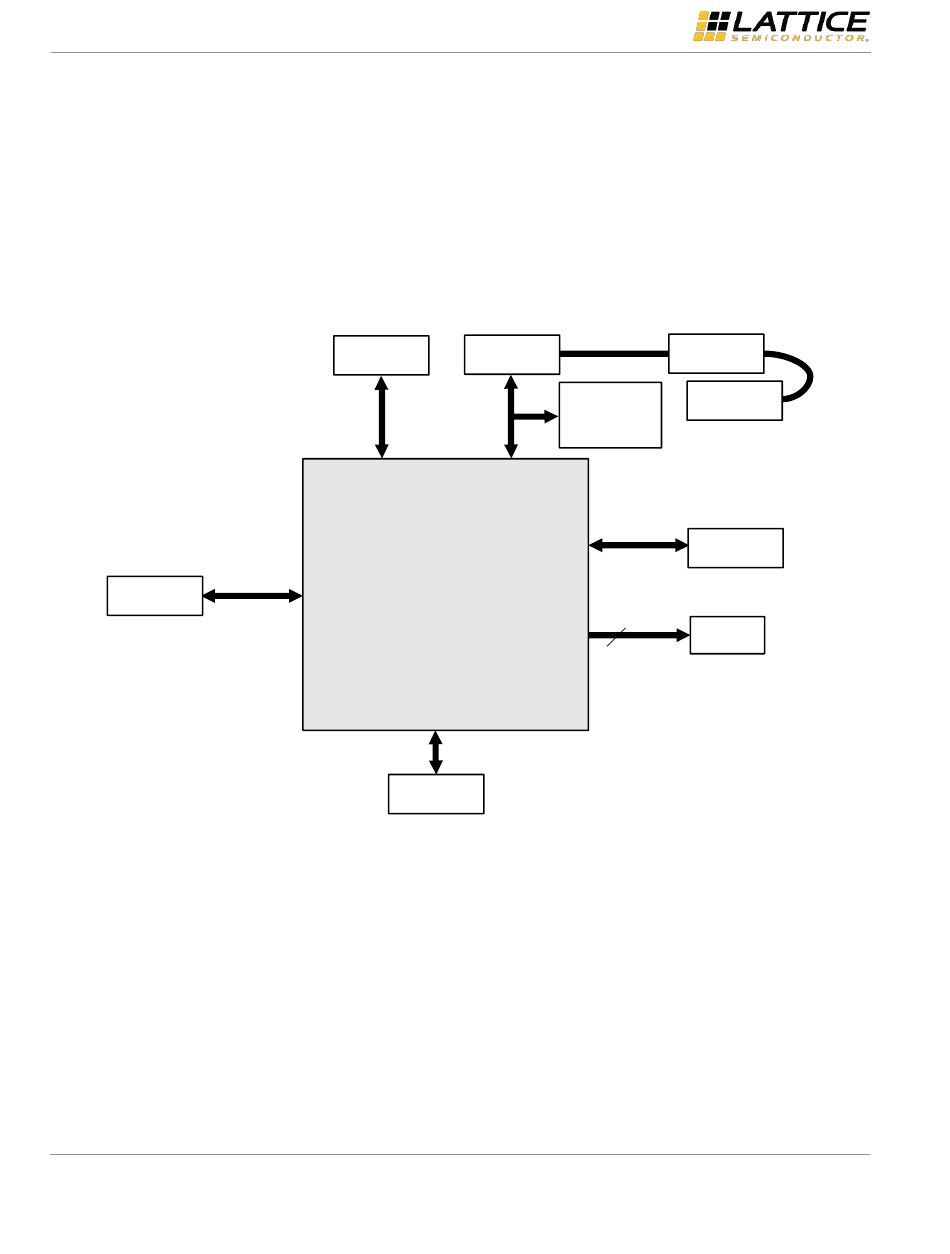

Figure 7.1. MachXO2 Breakout Board Block Diagram

USB
Controller
1 × 8 Header
Landing (J1,
JTAG
Optional JTAG
Programming
Interface)
GPIO
USB Mini B
Socket
A/Mini-B USB
Cable
Bank 1
GPIO
2 × 20 Header
Landing (J3)
8
LED
Array
