CarCheck System PLUS

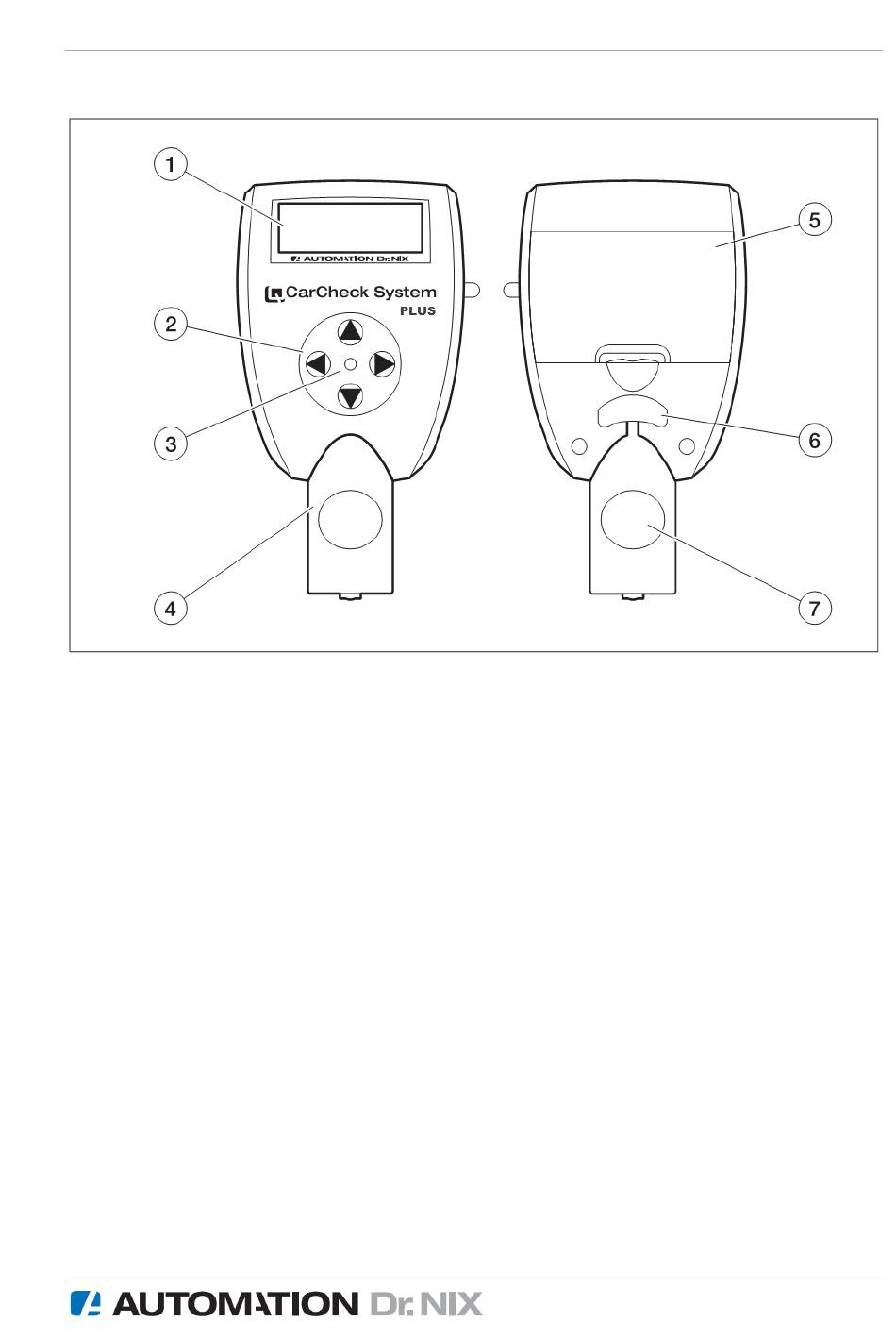

3.2 Controls and Display
1
Display
shows measurements and operation menus
2
Buttons
for operating the device
3
LED
flashes red during active wireless connection and data transmission and green after a
successful measurement
4
Measuring probe
5
Battery compartment
6
Latch
for releasing the locking of the inserted probe or the probe cable
7
Recessed grips
for a safe positioning of the measuring probe
Appendix
8/44
