CarCheck System PLUS

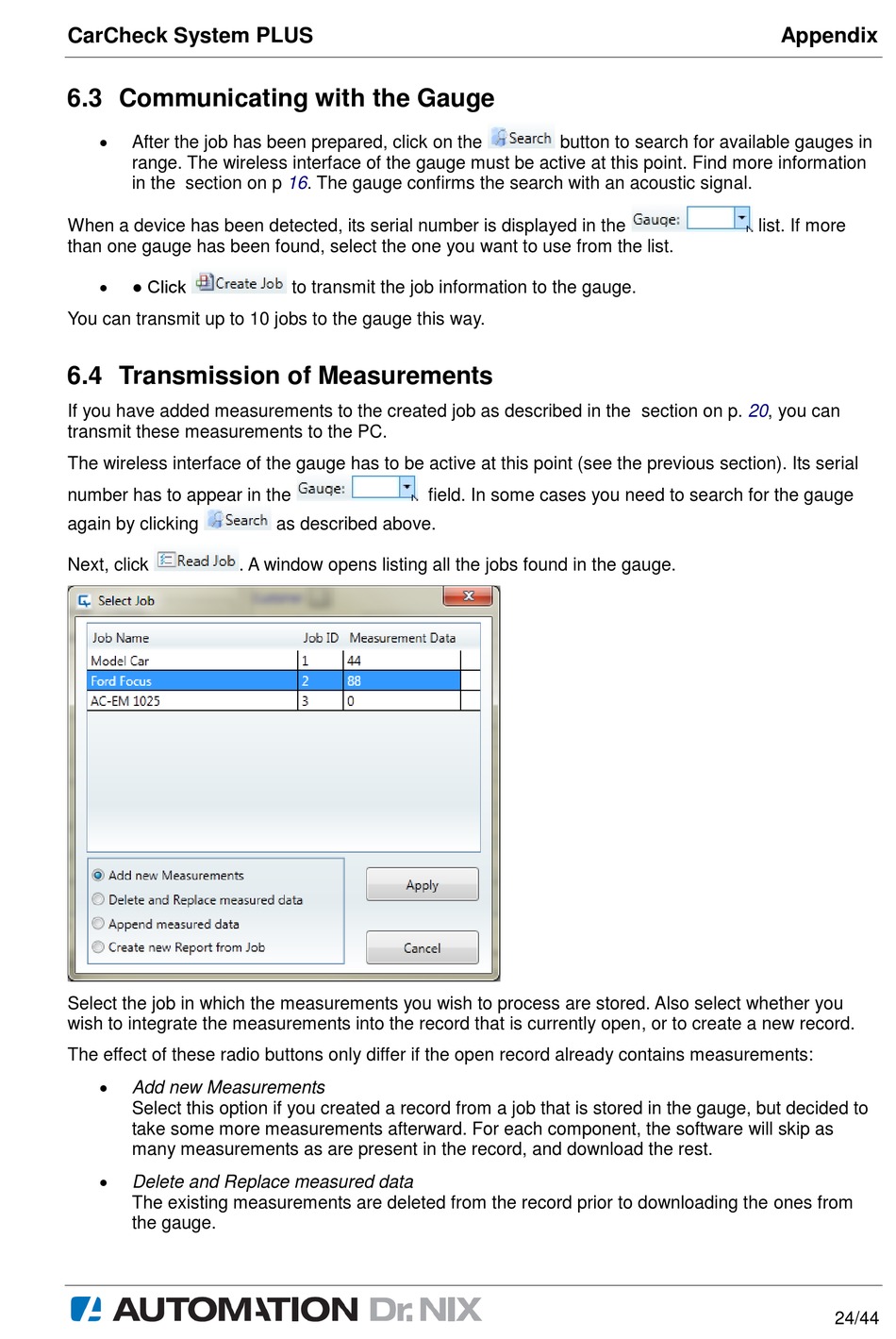

6.3 Communicating with the Gauge


After the job has been prepared, click on the
range. The wireless interface of the gauge must be active at this point. Find more information
in the section on p 16. The gauge confirms the search with an acoustic signal.
When a device has been detected, its serial number is displayed in the
than one gauge has been found, select the one you want to use from the list.

● Click
You can transmit up to 10 jobs to the gauge this way.

6.4 Transmission of Measurements

If you have added measurements to the created job as described in the section on p. 20, you can
transmit these measurements to the PC.
The wireless interface of the gauge has to be active at this point (see the previous section). Its serial
number has to appear in the
again by clicking
Next, click
Select the job in which the measurements you wish to process are stored. Also select whether you
wish to integrate the measurements into the record that is currently open, or to create a new record.
The effect of these radio buttons only differ if the open record already contains measurements:

Add new Measurements
Select this option if you created a record from a job that is stored in the gauge, but decided to
take some more measurements afterward. For each component, the software will skip as
many measurements as are present in the record, and download the rest.

Delete and Replace measured data
The existing measurements are deleted from the record prior to downloading the ones from
the gauge.
to transmit the job information to the gauge.
as described above.
. A window opens listing all the jobs found in the gauge.
button to search for available gauges in
field. In some cases you need to search for the gauge
Appendix
list. If more
24/44
