CarCheck System PLUS Appendix

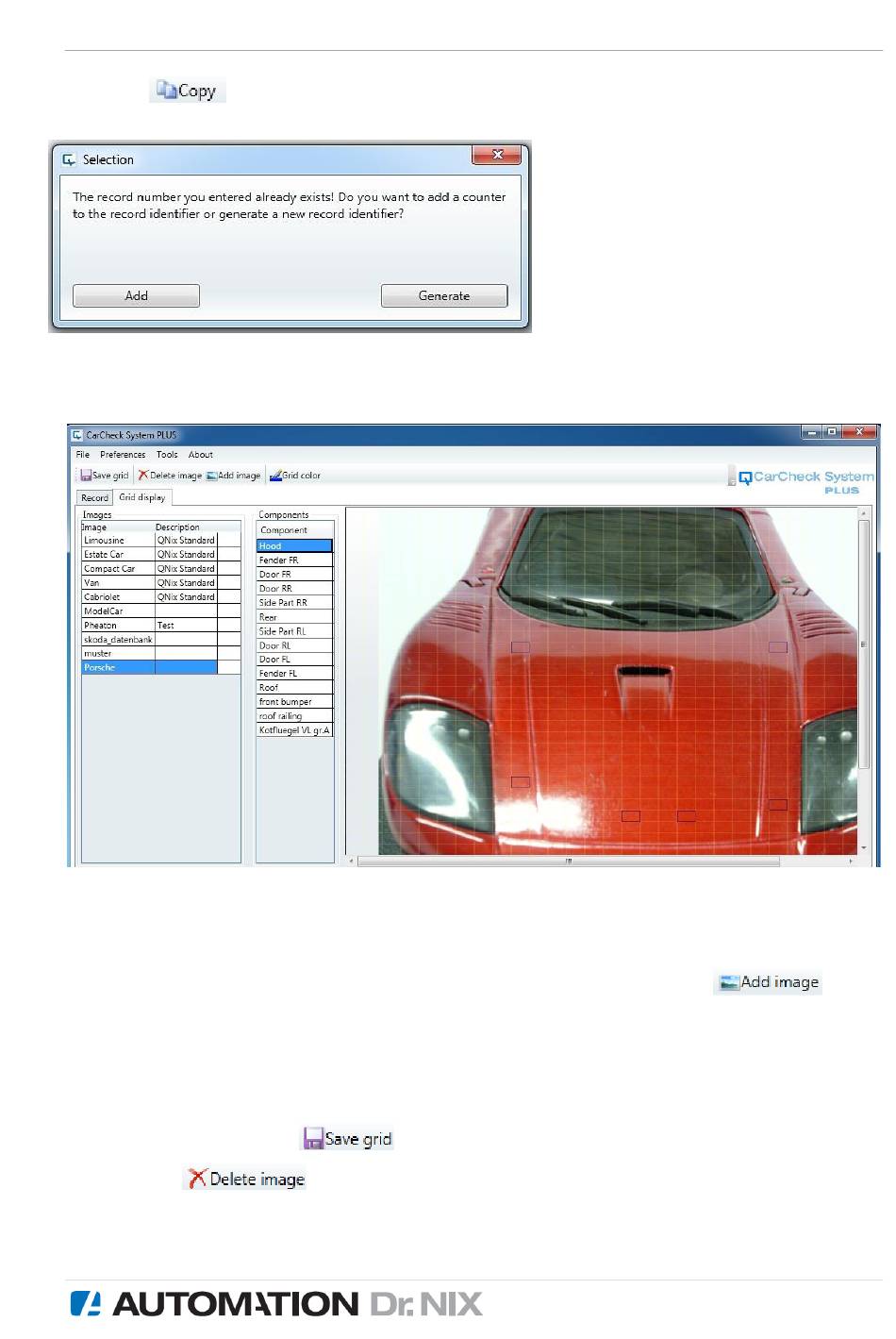

When the button is clicked, the following dialog box appears to offer these options:
7.2.2 The Grid Display View
The purpose of this view is to define the positions of the measurements on an image for the
automated placement of measurements.
From the list on the left-hand side, select the image you wish to use for the automated arrangement of
measurements. If required, you can add further images in this view by clicking on . The
image appears with an overlaying grid.
Now, select a part from the Components list on which you want to place measurements. Then select,
in order, those areas of the grid where you want the measurements to be placed. The selected areas
are highlighted.
Repeat this for all the parts for which you want measurements to be arranged automatically. Save the
created grid using the button .
By clicking on , you can remove images from the list.
