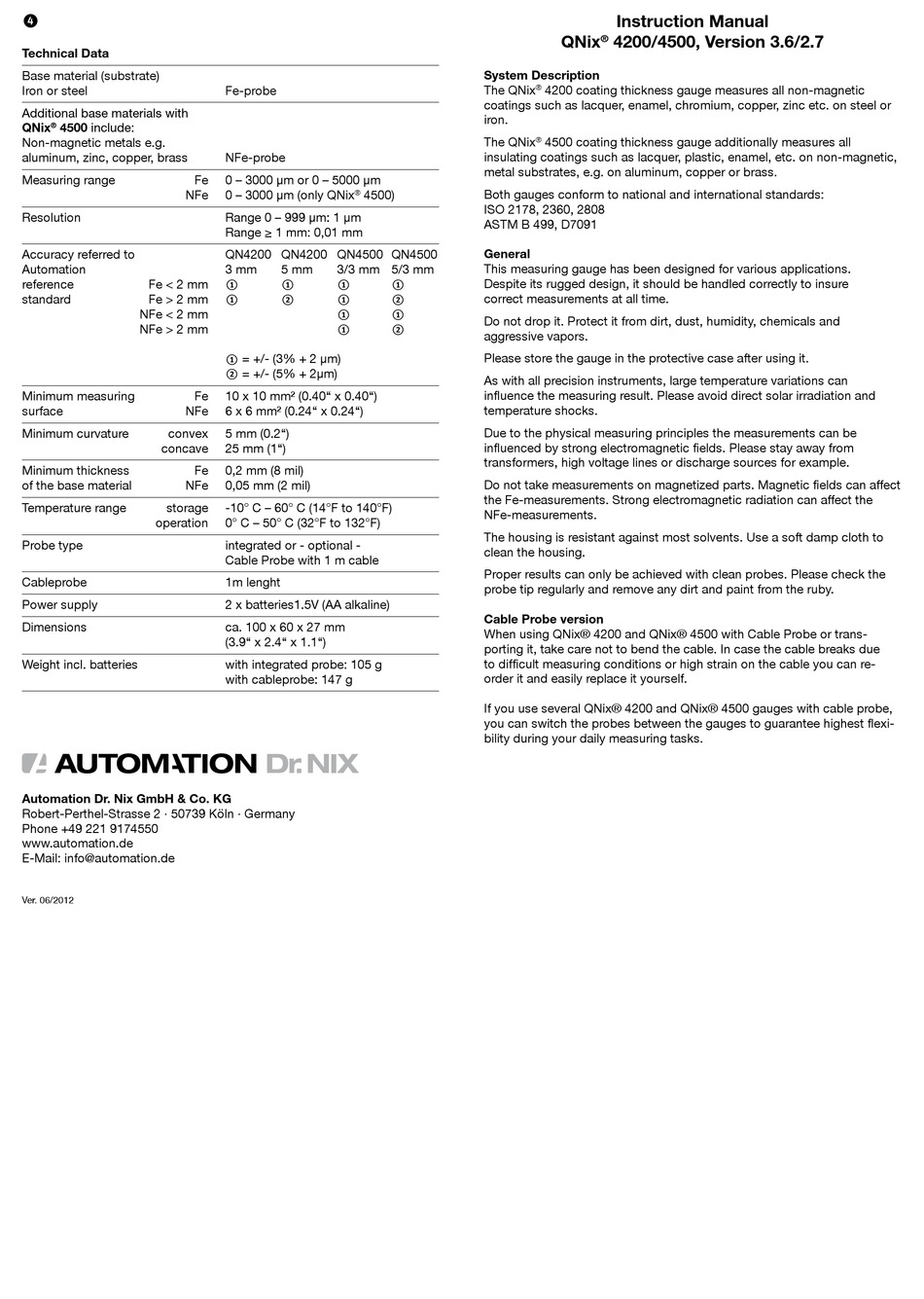

Technical Data
Base material (substrate)
Iron or steel
Additional base materials with
QNix 4500 include:
®
Non-magnetic metals e.g.
aluminum, zinc, copper, brass
Measuring range
NFe
Resolution
Accuracy referred to
Automation
reference Fe < 2 mm
standard Fe > 2 mm
NFe < 2 mm
NFe > 2 mm
Minimum measuring
surface NFe
Minimum curvature convex
concave
Minimum thickness
of the base material NFe
Temperature range storage
operation
Probe type
Cableprobe
Power supply
Dimensions
Weight incl. batteries
Automation Dr. Nix GmbH & Co. KG
Robert-Perthel-Strasse 2 · 50739 Köln · Germany
Phone +49 221 9174550
www.automation.de
E-Mail: info@automation.de
Ver. 06/2012
Fe-probe
NFe-probe
Fe 0 – 3000 µm or 0 – 5000 µm
0 – 3000 µm (only QNix ® 4500)
Range 0 – 999 µm: 1 µm
Range ≥ 1 mm: 0,01 mm
QN4200 QN4200 QN4500 QN4500
3 mm 5 mm 3/3 mm 5/3 mm
1 1 1
1 2 1
1
1
= +/- (3% + 2 µm)
1
= +/- (5% + 2µm)
2
Fe 10 x 10 mm² (0.40" x 0.40")
6 x 6 mm² (0.24" x 0.24")
5 mm (0.2")
25 mm (1")
Fe 0,2 mm (8 mil)
0,05 mm (2 mil)
-10° C – 60° C (14°F to 140°F)
0° C – 50° C (32°F to 132°F)
integrated or - optional -
Cable Probe with 1 m cable
1m lenght
2 x batteries1.5V (AA alkaline)
ca. 100 x 60 x 27 mm
(3.9" x 2.4" x 1.1")
with integrated probe: 105 g
with cableprobe: 147 g
QNix
System Description

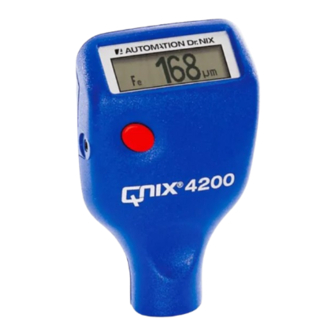

The QNix ® 4200 coating thickness gauge measures all non-magnetic
coatings such as lacquer, enamel, chromium, copper, zinc etc. on steel or
iron.
The QNix 4500 coating thickness gauge additionally measures all
®
insulating coatings such as lacquer, plastic, enamel, etc. on non-magnetic,
metal substrates, e.g. on aluminum, copper or brass.
Both gauges conform to national and international standards:
ISO 2178, 2360, 2808
ASTM B 499, D7091
General
This measuring gauge has been designed for various applications.
Despite its rugged design, it should be handled correctly to insure
1
correct measurements at all time.
2
1
Do not drop it. Protect it from dirt, dust, humidity, chemicals and
2
aggressive vapors.
Please store the gauge in the protective case after using it.
As with all precision instruments, large temperature variations can
influence the measuring result. Please avoid direct solar irradiation and
temperature shocks.
Due to the physical measuring principles the measurements can be
influenced by strong electromagnetic fields. Please stay away from
transformers, high voltage lines or discharge sources for example.
Do not take measurements on magnetized parts. Magnetic fields can affect
the Fe-measurements. Strong electromagnetic radiation can affect the
NFe-measurements.
The housing is resistant against most solvents. Use a soft damp cloth to
clean the housing.
Proper results can only be achieved with clean probes. Please check the
probe tip regularly and remove any dirt and paint from the ruby.
Cable Probe version
When using QNix® 4200 and QNix® 4500 with Cable Probe or trans-
porting it, take care not to bend the cable. In case the cable breaks due
to difficult measuring conditions or high strain on the cable you can re-
order it and easily replace it yourself.
If you use several QNix® 4200 and QNix® 4500 gauges with cable probe,
you can switch the probes between the gauges to guarantee highest flexi-
bility during your daily measuring tasks.
