CarCheck System PLUS Appendix
7.4.3 The Tools Menu
Image Adjustment
In the Record Image view, you can only select a single image to place the measurements on. If you
want to use photos to present your measurement results, this is possible only as far as the relevant
areas can be shown with a single photo.
But it takes at least 2 photos to show all sides of a vehicle body. More photos would make things more
clearly.

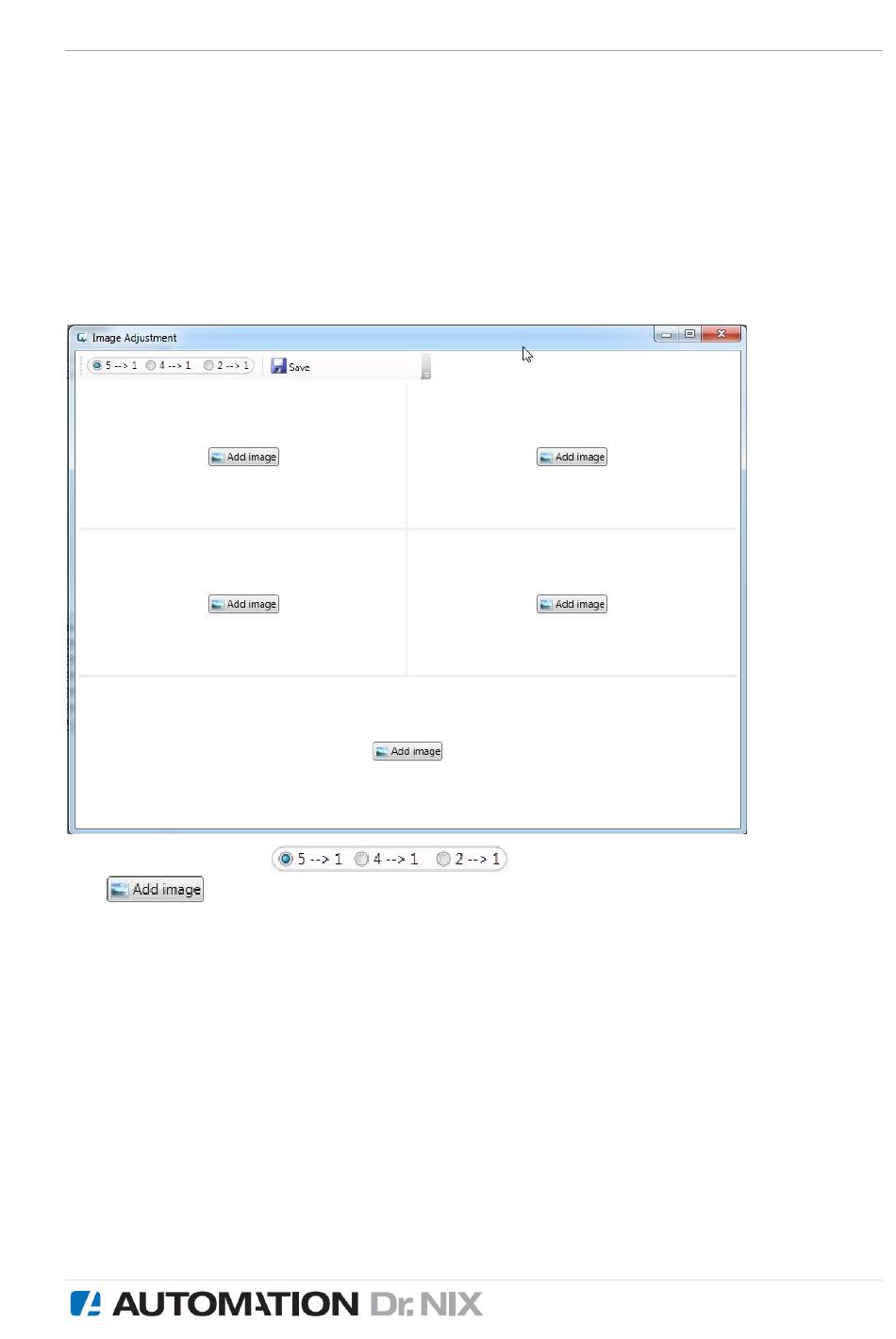

Therefore, a tool is integrated that enables the user to arrange 2, 4 or 5 pictures in a single image file:
Select one of the options for the number of pictures to arrange, then
click in each area to select the picture for it.
