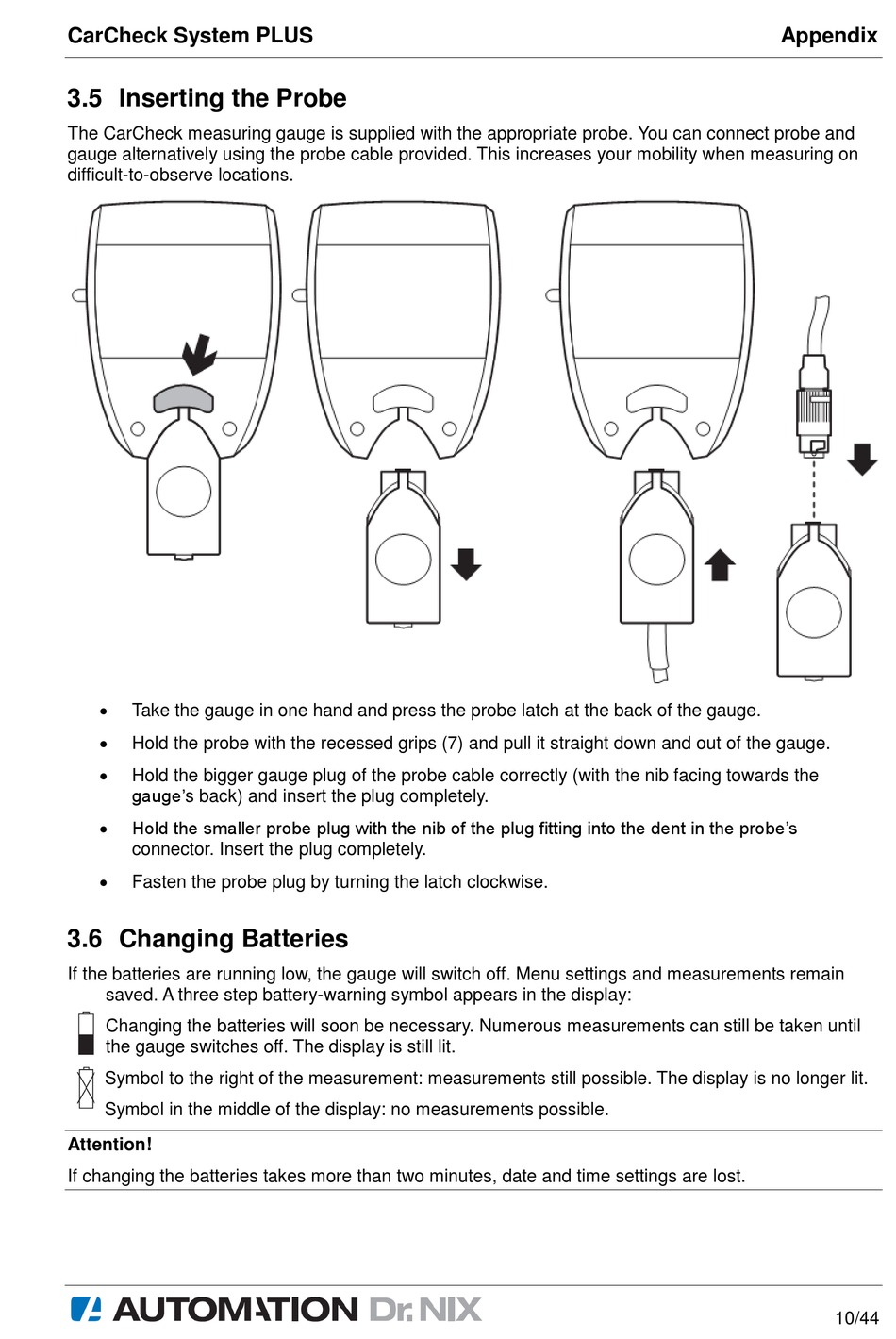

3.5 Inserting the Probe

The CarCheck measuring gauge is supplied with the appropriate probe. You can connect probe and
gauge alternatively using the probe cable provided. This increases your mobility when measuring on
difficult-to-observe locations.

Take the gauge in one hand and press the probe latch at the back of the gauge.

Hold the probe with the recessed grips (7) and pull it straight down and out of the gauge.

Hold the bigger gauge plug of the probe cable correctly (with the nib facing towards the
gauge's back) and insert the plug completely.

Hold the smaller probe plug with the nib of the plug fitting into the dent in the probe's
connector. Insert the plug completely.

Fasten the probe plug by turning the latch clockwise.

3.6 Changing Batteries

If the batteries are running low, the gauge will switch off. Menu settings and measurements remain
saved. A three step battery-warning symbol appears in the display:
Changing the batteries will soon be necessary. Numerous measurements can still be taken until
the gauge switches off. The display is still lit.
Symbol to the right of the measurement: measurements still possible. The display is no longer lit.
Symbol in the middle of the display: no measurements possible.
Attention!
If changing the batteries takes more than two minutes, date and time settings are lost.
