CarCheck System PLUS
Attention:
The deletion of the measurements in the record operates directly on the database. If the
transmission of the measurements fails, or the program is closed during the operation, you
will end up with a record without measurements, although you did not save the changes
explicitly. You will have to repeat the transmission of the measurements in this case.

Append measured data
The existing measurements are retained, and the measurements from the gauge will be
appended to them. Attention: if the gauge contains measurements that already exist in the
record, they will exist twice in the record afterward.

Create new Record from Job
This option will create a new job, with the name of the job taken from the gauge, and
download the corresponding measurements in one step.
Click to start the transmission and close the dialog box.
The measurements appear on the screen in the Measurement data section.

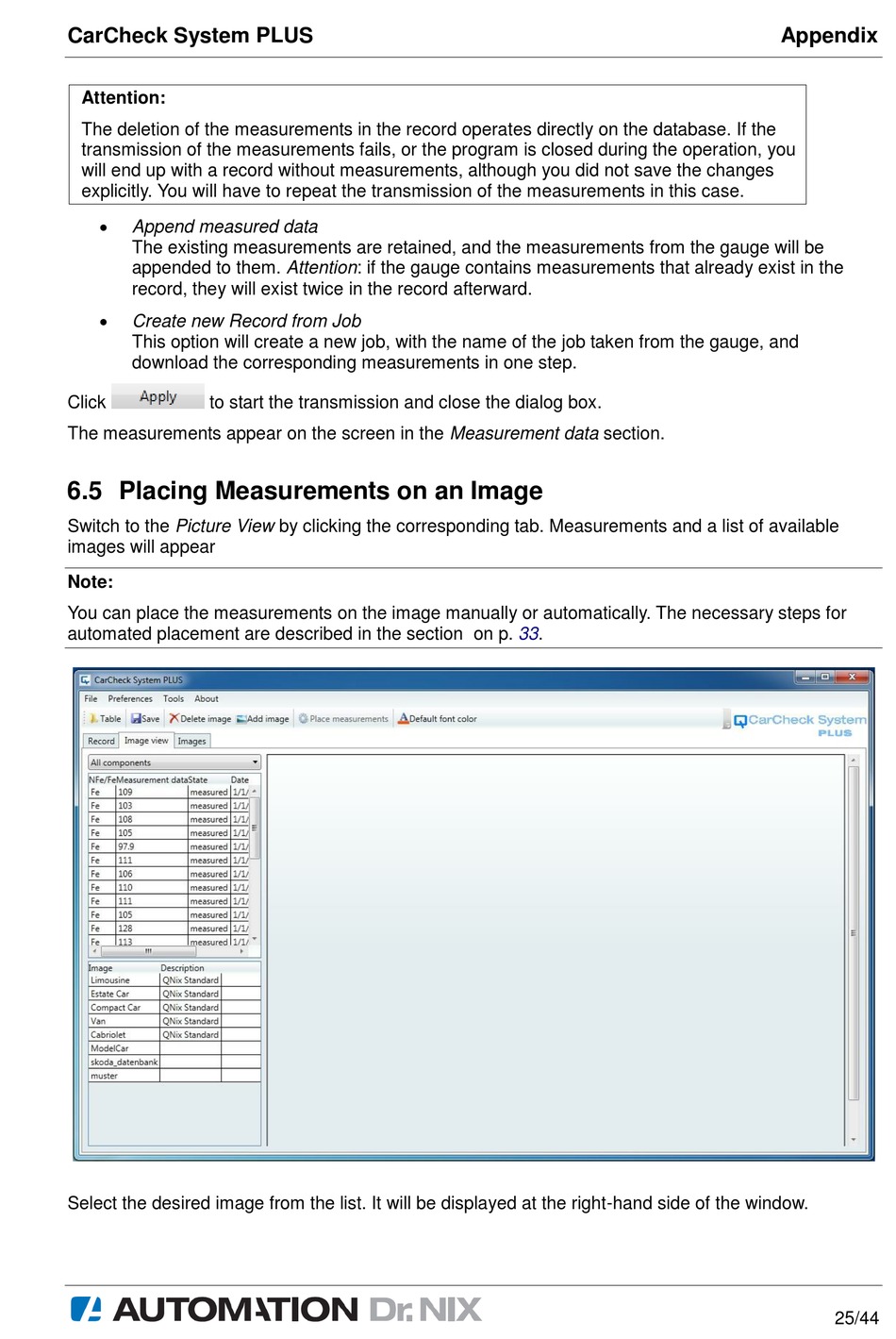

6.5 Placing Measurements on an Image

Switch to the Picture View by clicking the corresponding tab. Measurements and a list of available
images will appear
Note:
You can place the measurements on the image manually or automatically. The necessary steps for
automated placement are described in the section on p. 33.
Select the desired image from the list. It will be displayed at the right-hand side of the window.
