- Page 1 Instruction Manual Coating Thickness Gauge 1500 Optionally with Memory...
-
Page 2: System Description

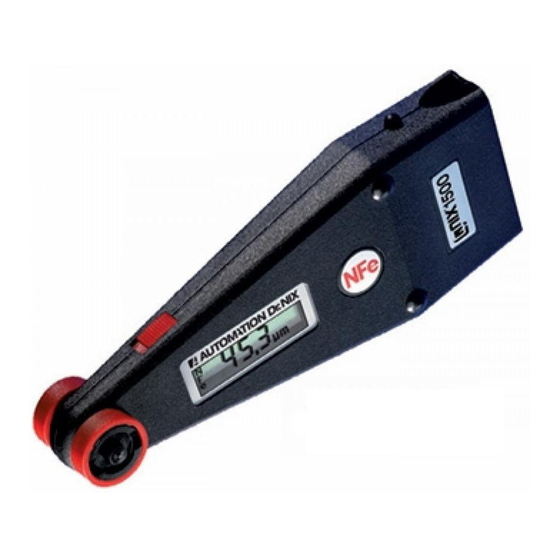

1500 is a part of the product line of non-destructive coating thickness measurement gauges manufactured by Automation Dr. Nix GmbH & Co. KG in Köln, Germany. Designed for the future, this gauge is characterized by its many applications and wide measuring range of up to 5 mm. It is also characterized by its robust construction as well as by other advantages already known from our other gauges. -
Page 3: Maintenance And Handling
3900 values can be stored and statistically evaluated. Optionally, a special software for statistical evaluation can be supplied. ® The QNix 1500 complies with national (DIN) and international (ISO, BS, ASTM) standards and regulations: DIN 50981, 50984; ISO 2178, 2360, 2808; BS 5411(3, 11), 3900 (c, 5); ASTM B499, D1400, D7091 Maintenance and Handling This gauge incorporates the latest electronic technology in... -
Page 4: Temperature Range
While there is a value visible on the display, push both slides simultaneously forward and hold for more than one second. The reading will change to the other dimension. Gauges with memory can be switched from μm to mil using the optionally available software. - Page 5 Hold the gauge according to the drawing and slightly press the probe onto the surface so that the ring around the probe is evenly placed. If the value indicated on the zero plate or on your uncoated substrate is not within the basic tolerance, the gauge should be adjusted (gauges with a memory must not be in the Memory Mode).
- Page 6 measured value is immediately indicated on the display accompanied by a ”Beep“. The display shows ”ERR“ (error) if the QNix® 1500 is placed incorrectly and ”INFI“ (infinite) if the measurement is out of range. The same will be displayed, if measurements on non- metallic substrates taken.
- Page 7 a double ”Beep“ and the value will be displayed. After approx. 1 second, the display changes and gives you the number of the measurements just taken. Both readings will be displayed alternately, e.g. the display will show N 14 (number of measurement) and 124 μm (last measured value).
- Page 8 and let it go. Immediately, you will see the letters ”AE“ for ”Average“ and a number giving you the number of all measurements in the respective block. This information is followed by the display of ”μm“ or ”mil“ and the value itself, representing the average or mean value of all measurements taken in the present block.
- Page 9 statistical evaluation on your PC is optionally available. For further information concerning ”Data Processing“ please refer to the software. Possible Display Information 1. Fe = Measurement on steel or iron substrates 2. NFe = Measurement on non-ferrous metallic substrates 3. ERR = Incorrect handling 4.
-
Page 10: Technical Data
Technical Data Substrate steel or iron NFe: non-ferrous metallic substrates as aluminum, zinc, copper, brass, stainless steel Measuring Range 0.0 – 5000 μm or 0.00 – 200 mil convertible by slide or by software Display of Values from 0.0 – 999 in μm from 1.00 –... - Page 12 Automation Dr. Nix GmbH & Co. KG Robert-Perthel-Str. 2 50739 Köln, Germany Tel. +49 (0) 221 91 74 55-0 Fax +49 (0) 221 17 12 21 info@automation.de www.automation.de 03/09...
