CarCheck System PLUS

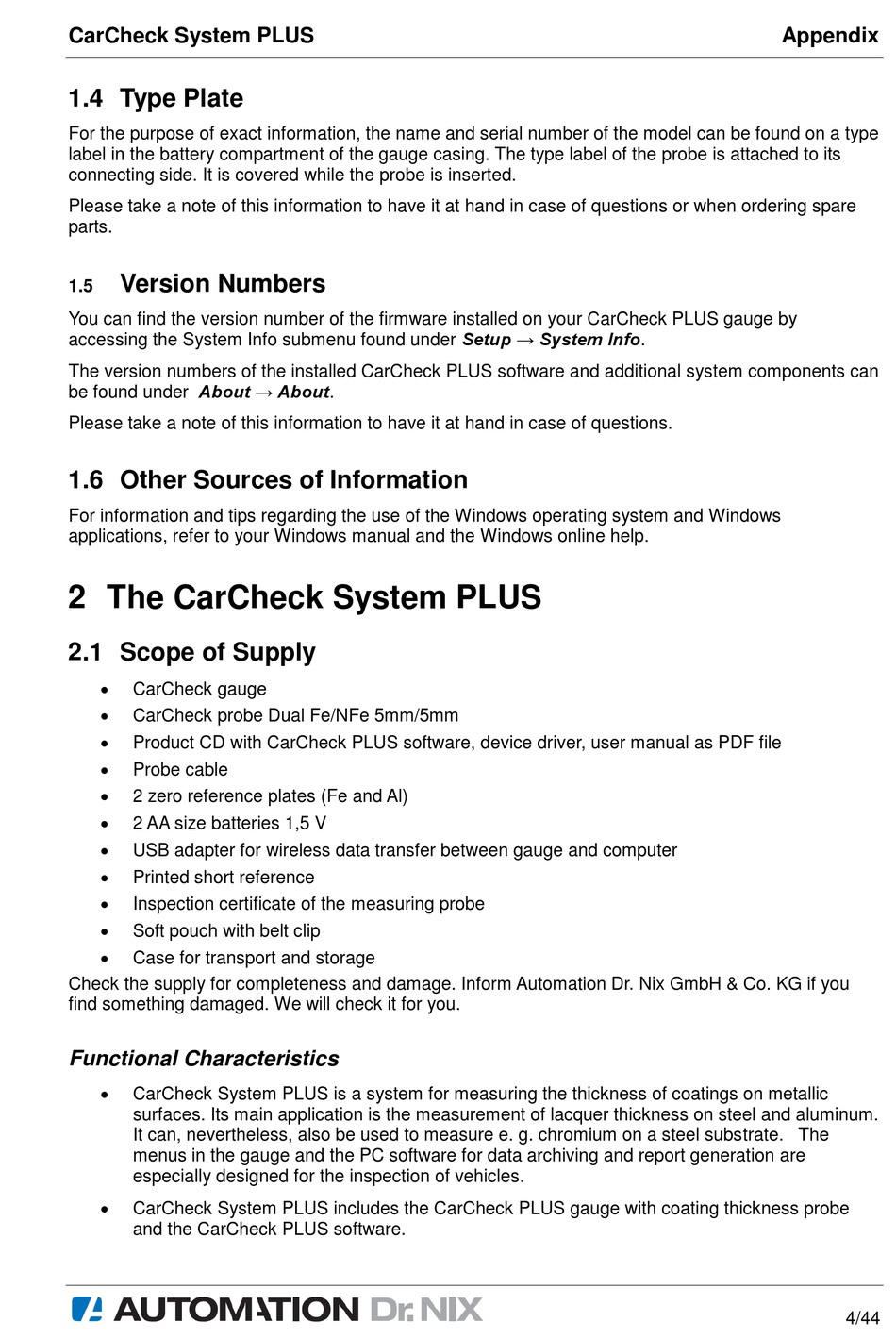

1.4 Type Plate

For the purpose of exact information, the name and serial number of the model can be found on a type
label in the battery compartment of the gauge casing. The type label of the probe is attached to its
connecting side. It is covered while the probe is inserted.
Please take a note of this information to have it at hand in case of questions or when ordering spare
parts.

Version Numbers

1.5
You can find the version number of the firmware installed on your CarCheck PLUS gauge by
accessing the System Info submenu found under Setup → System Info.
The version numbers of the installed CarCheck PLUS software and additional system components can
be found under About → About.
Please take a note of this information to have it at hand in case of questions.

1.6 Other Sources of Information

For information and tips regarding the use of the Windows operating system and Windows
applications, refer to your Windows manual and the Windows online help.

2 The CarCheck System PLUS

2.1 Scope of Supply


CarCheck gauge

CarCheck probe Dual Fe/NFe 5mm/5mm

Product CD with CarCheck PLUS software, device driver, user manual as PDF file

Probe cable

2 zero reference plates (Fe and Al)

2 AA size batteries 1,5 V

USB adapter for wireless data transfer between gauge and computer

Printed short reference

Inspection certificate of the measuring probe

Soft pouch with belt clip

Case for transport and storage
Check the supply for completeness and damage. Inform Automation Dr. Nix GmbH & Co. KG if you
find something damaged. We will check it for you.
Functional Characteristics

CarCheck System PLUS is a system for measuring the thickness of coatings on metallic
surfaces. Its main application is the measurement of lacquer thickness on steel and aluminum.
It can, nevertheless, also be used to measure e. g. chromium on a steel substrate. The
menus in the gauge and the PC software for data archiving and report generation are
especially designed for the inspection of vehicles.

CarCheck System PLUS includes the CarCheck PLUS gauge with coating thickness probe
and the CarCheck PLUS software.
Appendix
4/44
