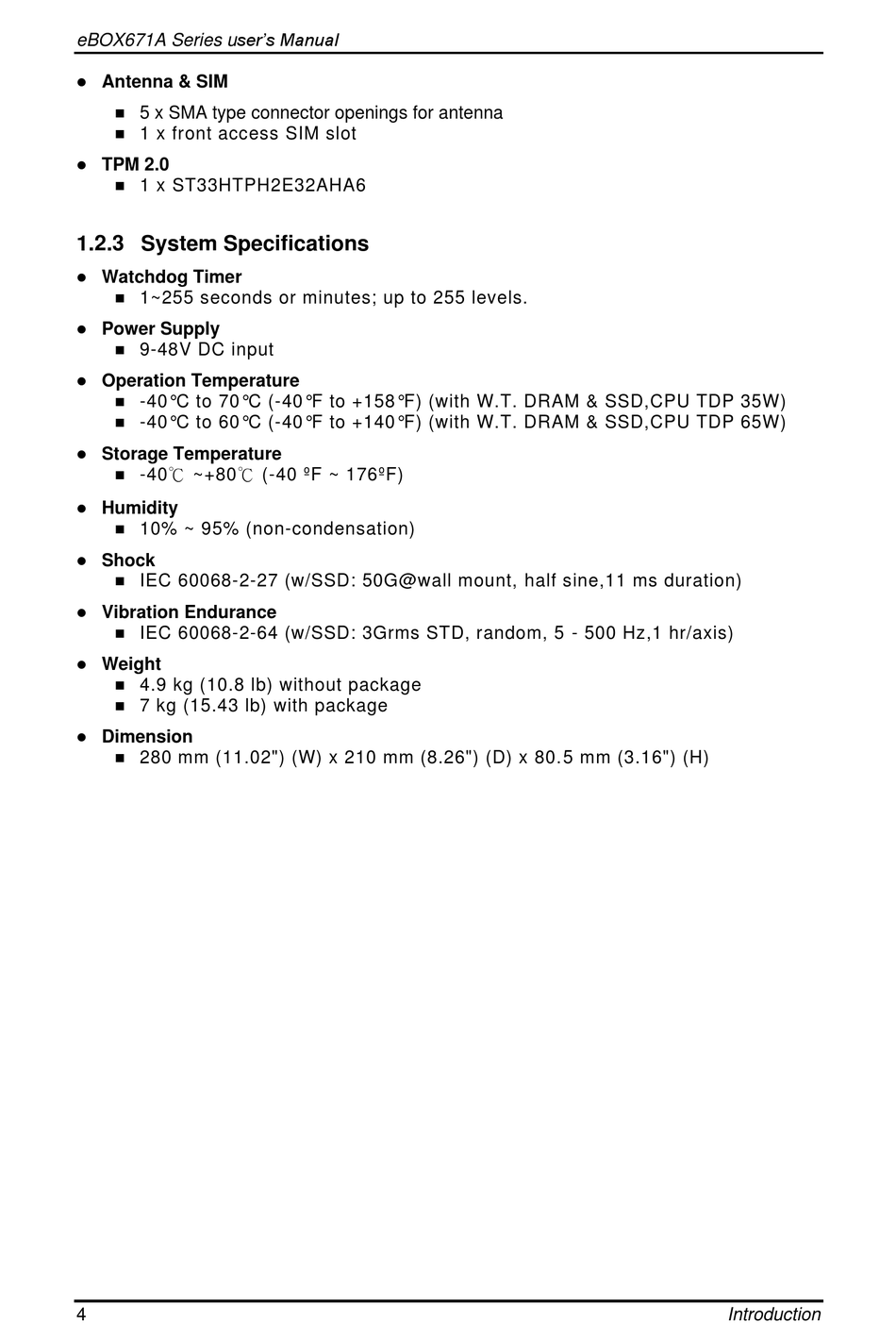

eBOX671A Series user's Manual
⚫ Antenna & SIM
◼ 5 x SMA type connector openings for antenna
◼ 1 x front access SIM slot
⚫ TPM 2.0
◼ 1 x ST33HTPH2E32AHA6

1.2.3 System Specifications

⚫ Watchdog Timer
◼ 1~255 seconds or minutes; up to 255 levels.
⚫ Power Supply
◼ 9-48V DC input
⚫ Operation Temperature
◼ -40°C to 70°C (-40°F to +158°F) (with W.T. DRAM & SSD,CPU TDP 35W)
◼ -40°C to 60°C (-40°F to +140°F) (with W.T. DRAM & SSD,CPU TDP 65W)
⚫ Storage Temperature
◼ -40℃ ~+80℃ (-40 ºF ~ 176ºF)
⚫ Humidity
◼ 10% ~ 95% (non-condensation)
⚫ Shock
◼ IEC 60068-2-27 (w/SSD: 50G@wall mount, half sine,11 ms duration)
⚫ Vibration Endurance
◼ IEC 60068-2-64 (w/SSD: 3Grms STD, random, 5 - 500 Hz,1 hr/axis)
⚫ Weight
◼ 4.9 kg (10.8 lb) without package
◼ 7 kg (15.43 lb) with package
⚫ Dimension
◼ 280 mm (11.02") (W) x 210 mm (8.26") (D) x 80. 5 mm (3.16") (H)
4 Introduction
