eBOX671A Series user's Manual

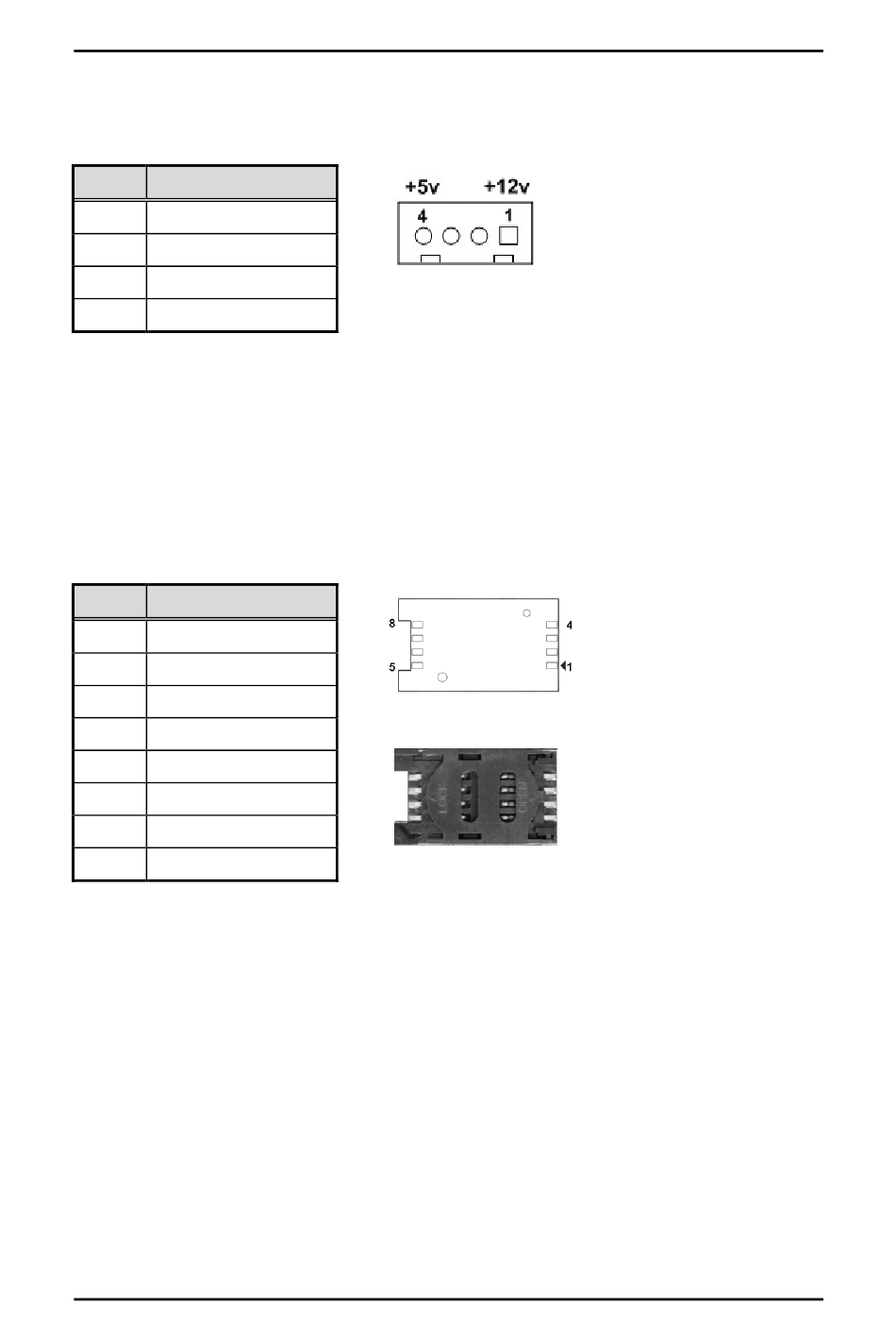

3.3.12 SATA Power Connector (CN10,CN11)

Based on CN10、CN11 to offer the SATA power for SATA 2.5" HDD/SSD.
Pins Signals
1 +12V level
2 GND
3 GND
4 +5V level

3.3.13 SIM Card Slots (SCN1, CN22)

The eBOX671A includes two SIM slots: SCN1 on top side of the system that support M.2 Key
B (for CN26), CN22 on bottom side that support mini PCIe slot (for CN20). It is mainly used in
wireless network application on CN20 and CN26.
Pins Signals
1 PWR
2 RST
3 CLK
4 NC
5 GND
6 VPP
7 I/O
8 NC
28
SCN1
CN22
Jumper & Connector Settings
