eBOX671A Series user's Manual

2.4 Installation of Mini PCIe Module (Full-size)(CN17,CN20)

Step 1 Turn off the system and unplug the power cord.

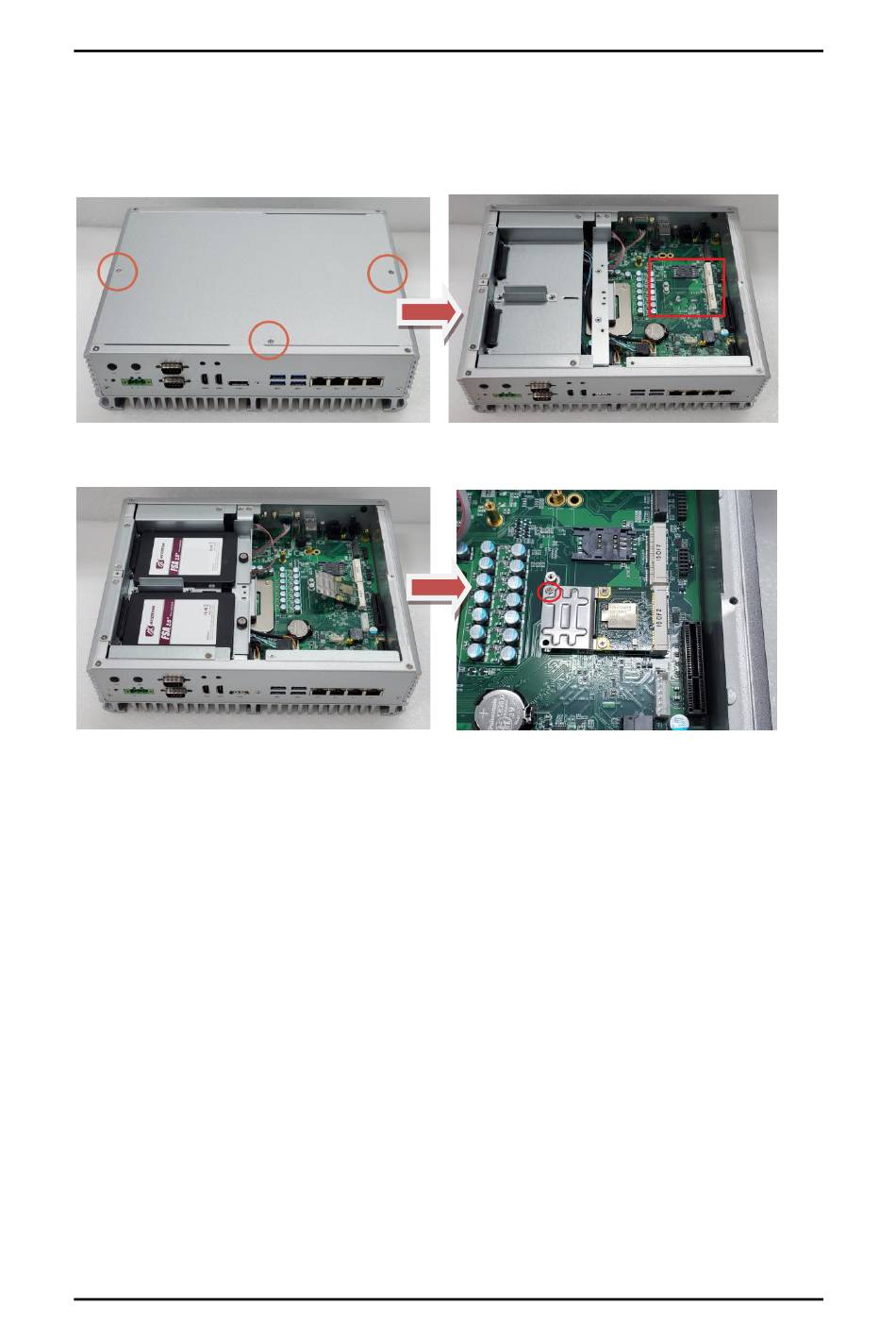

Step 2 Loosen three screws to remove bottom cover and locate PCIe mini

card slot within the red line as marked.

Step 3 Insert a mini PCIe module into the sockets and then fasten the screw.

Step 4

Put the bottom cover and fasten all screws back onto the system.

Hardware Installation
