2.3 Installation of M.2 Mini PCIe Module (CN26)

Step 1 Turn off the system and unplug the power cord.

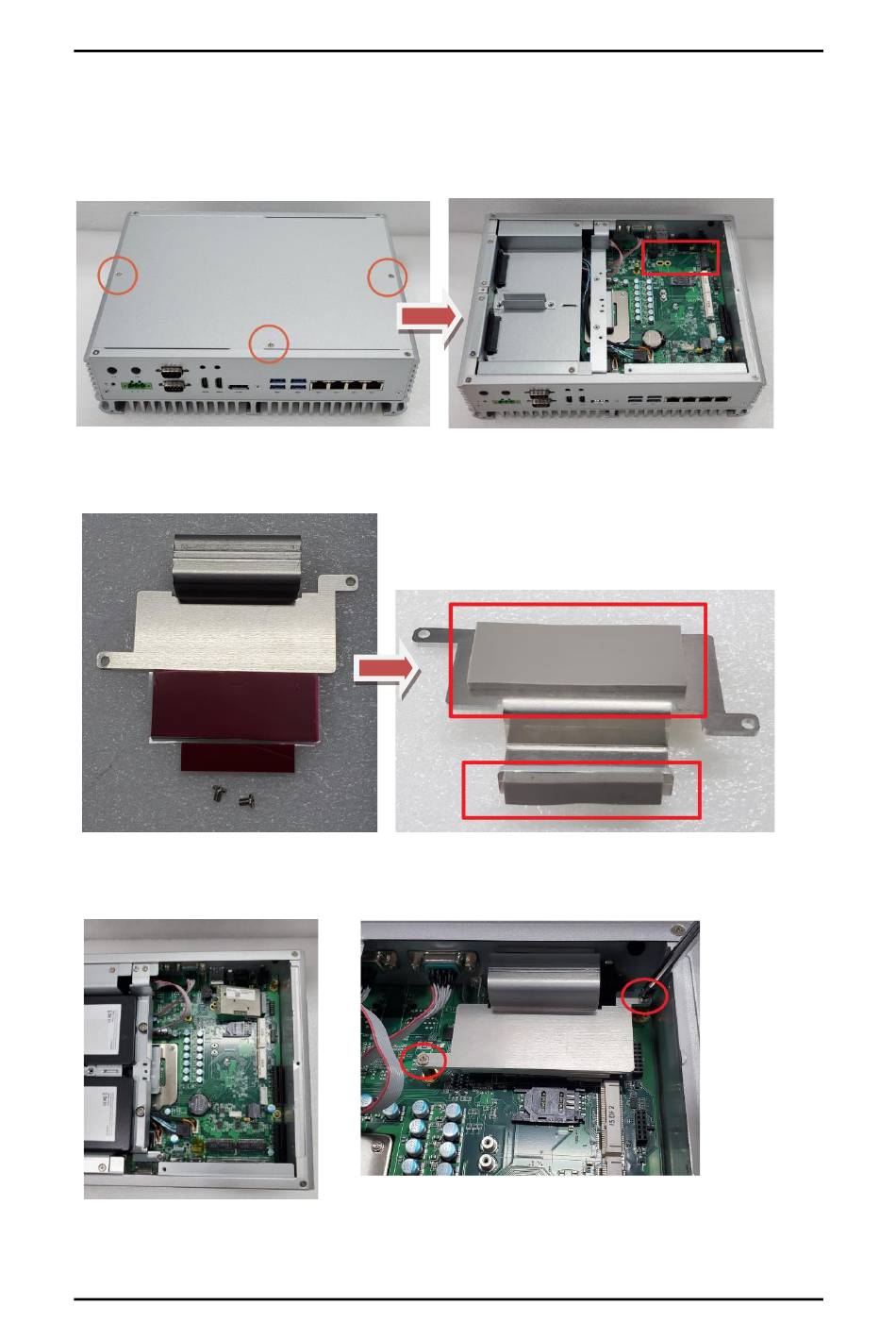

Step 2 Loosen three screws to remove bottom cover and locate M.2 mini card

slot within the red line as marked.

Step 3 Please use the M.2 bracket and thermal pad from accessory, attached

the thermal pad on bracket as below red marked,

Step 4 Insert the M.2 mini card and fasten the two screws of the bracket.

Make sure the direction is correct.

Step 5

Put the bottom cover and fasten all screws back onto the system.

Hardware Installation

eBOX671A Series user's Manual
