3.3.9

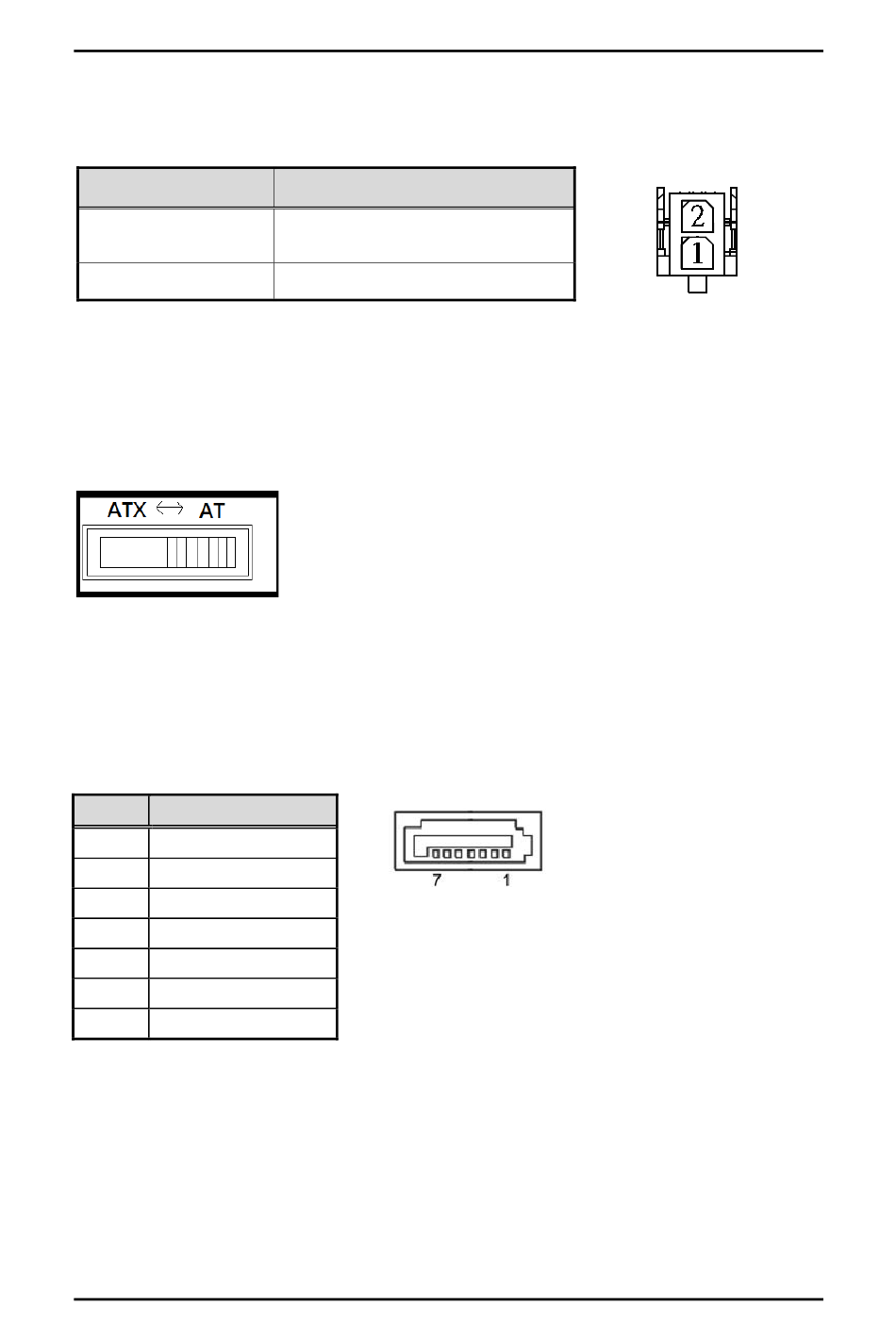

Remote Power Switch Connector (PWRBT1)

One 2-pin connector output for remote power on/off switch.
Functions
Short(1-2)
Open

3.3.10 ATX/AT Quick Switch

If you set ATX /AT switch to AT mode, the system will be automatically power on without
pressing soft power button during power input; we can use this switch to achieve auto power
on demand.
3.3.11 SATA Connector (SATA1 & 2)
These Serial Advanced Technology Attachment (Serial ATA or SATA) connectors are for
high-speed SATA interfaces. They are computer bus interfaces for connecting to devices
such as hard disk drives. This board has two SATA 3.0 ports with 6Gb/s performance.
Pins Signals
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
Jumper & Connector Settings
Descriptions
Turn on/off system
Keep system status
