Figure 2-2. Tracer AV (back) security cables installed after NTEP certification.
2.3
Cable Connections
The
Tracer AV
provides several cable connections: one for the power cord, one to accommodate the load cell,
communications, remote displays, and keypads. Figure 2-3 shows the assignments for the
Details on pin assignments are shown in Table 2-1 through Table 2-5.
Power Cord
Connection

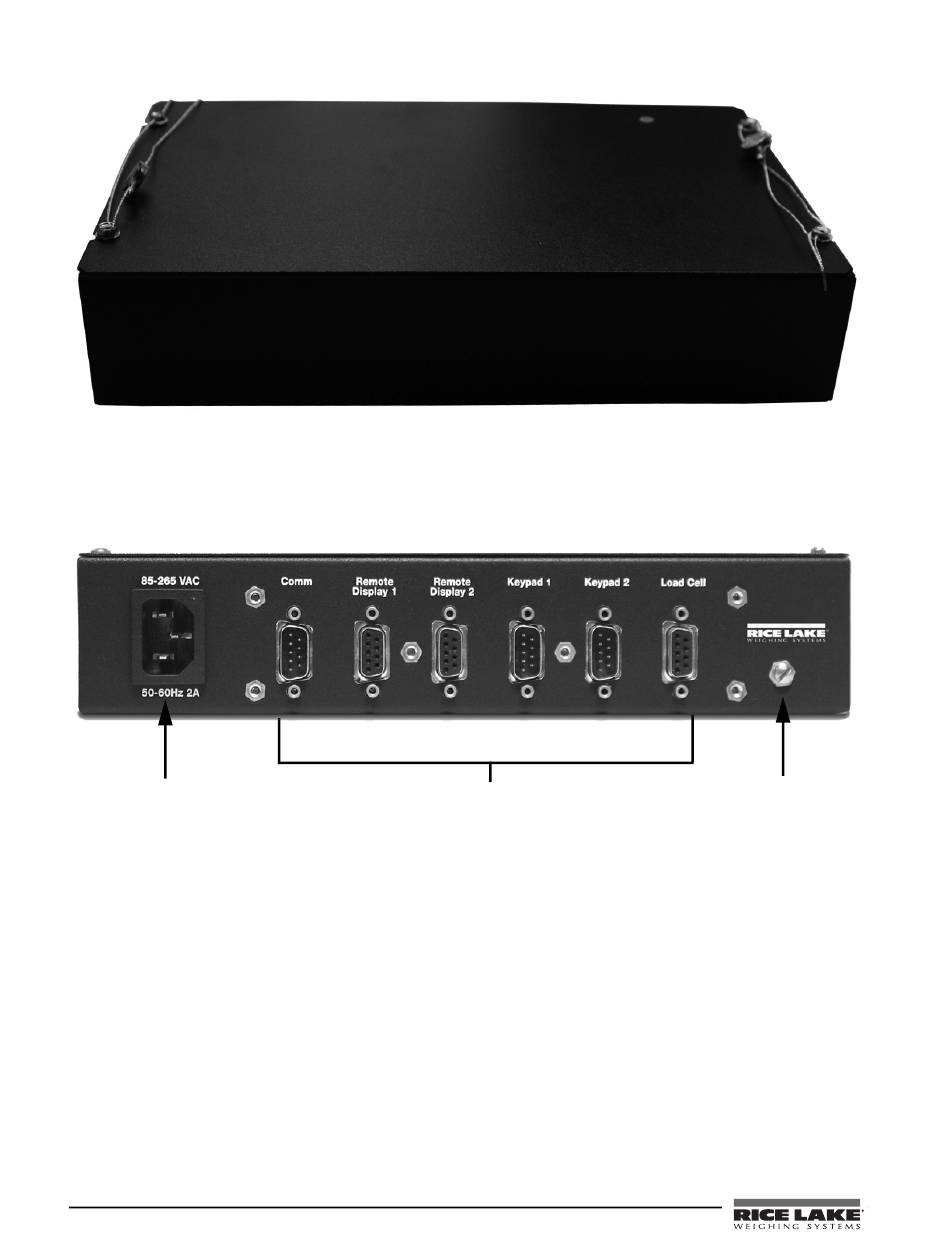

Figure 2-3. Tracer AV Power Cord Connection, DB-9 Connections, and Setup Switch Access Screw.
4
Tracer AV Installation Manual
DB-9 Connections
connections.
Tracer AV
Remove Screw to
Access Setup Switch
