Setpoint Menu

DEFCAL
CONFIG
SETPT1
ENABLE
OFF
ON
SETPNT Menu
Parameter Choices
Level 2 submenus
SETPT1 ENABLE
SETPT2 KIND
VALUE
TRIP
BNDVAL
Level 3 submenus
ENABLE OFF
ON
KIND GROSS
NET
VALUE number
TRIP HIGHER
LOWER
INBAND
OUTBND
BNDVAL number
HYSTER number
ACCESS OFF
ON
FORMAT CALIBR SERIAL
XXXXXXX
SETPT2
Same as SETPT1
KIND V ALUE
GROSS number
NET

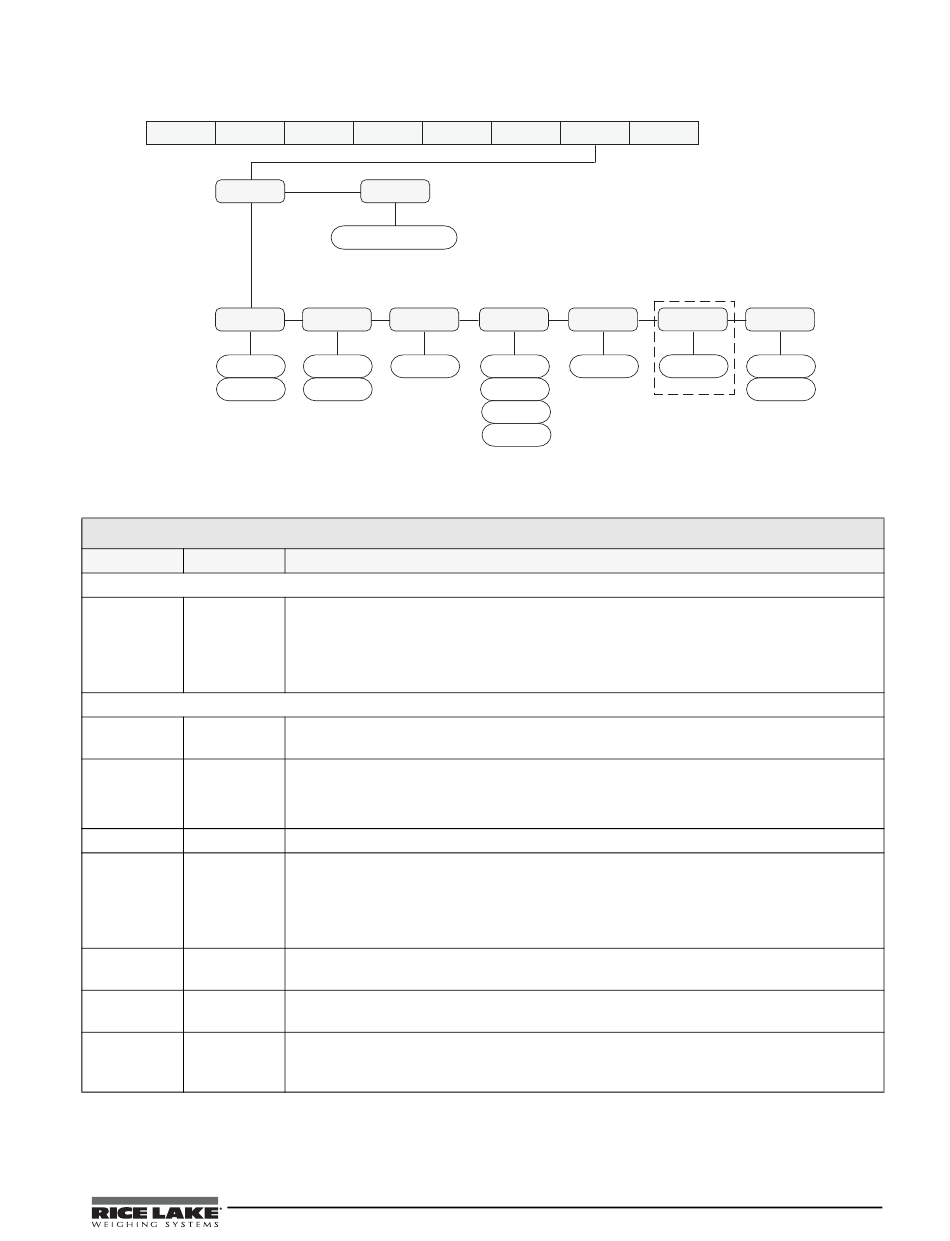

Figure 3-10. Setpoint Menu
Specifies settings for setpoint enable, kind, weight value, trip, and band value used by the
setpoint
Turns setpoint ON or OFF.
Specifies the setpoint kind and determines whether function is based on GROSS or NET
weight.
GROSS or NET setpoint kinds can be used.
Displays and edits the setpoint value
Trips the setpoint when the weight is higher or lower than the setpoint value, or is within or
outside of the band value. LOWER means the output is active until you reach weight. If trip is
HIGHER, the output is active when the setpoint is met or exceeded. INBAND means the
output is active if the weight is within the band value. If trip is OUTBND, the output is active
when the weight is outside of the band value.
The band value for either INBAND or OUTBND trip setpoints. BNDVAL is ignored unless trip is
set to INBAND or OUTBND.
Specifies a band around the setpoint value that must be exceeded before the setpoint, once
off, can trip on. If TRIP = HiGHER or LOWER.
Front panel access to setpoints. Specify OFF if setpoints will not be used. ON enables
operator to turn setpoints on/off, change value, or change BANDVAL via front panel entry
during weigh mode.
Table 3-9. Setpoint Menu Parameters
PROGRM SETPNT VERS
XXXXXXX
XXXXXXX
TRIP BNDVAL
HIGHER number
LOWER
If TRIP = HIGHER/
INBAND
OUTBAND
Description
Tracer AV Installation Manual - Configuration
HYSTER ACCESS
number OFF
ON
LOWER
