Companding involves using a piecewise linear approximation of the following equations (as set out by
ITU-T G.711 standard) for data compression:
-law (where =255 for the U.S. and Japan):
F(x) = ln( 1 + |x|) / ln( 1 + )
A-law (where A=87.6 for Europe):
F(x) = A|x| / ( 1 + lnA)
F(x) = ( 1 + lnA|x|) / (1 + lnA)
The companded data is also inverted as recommended by the G.711 standard (all 8 bits are inverted
for -law, all even data bits are inverted for A-law). The data will be transmitted as the first 8 MSB's of
data.
Companding converts 13 bits (-law) or 12 bits (A-law) to 8 bits using non-linear quantization. The
input data range is separated into 8 levels, allowing low amplitude signals better precision than that of
high amplitude signals. This is to exploit the operation of the human auditory system, where louder
sounds do not require as much resolution as quieter sounds. The companded signal is an 8-bit word
containing sign (1-bit), exponent (3-bits) and mantissa (4-bits).
BIT7 BIT[6:4]
SIGN EXPONENT
Table 51 8-bit Companded Word Composition
120
100
80
60
40
20
0
0 0.1 0.2

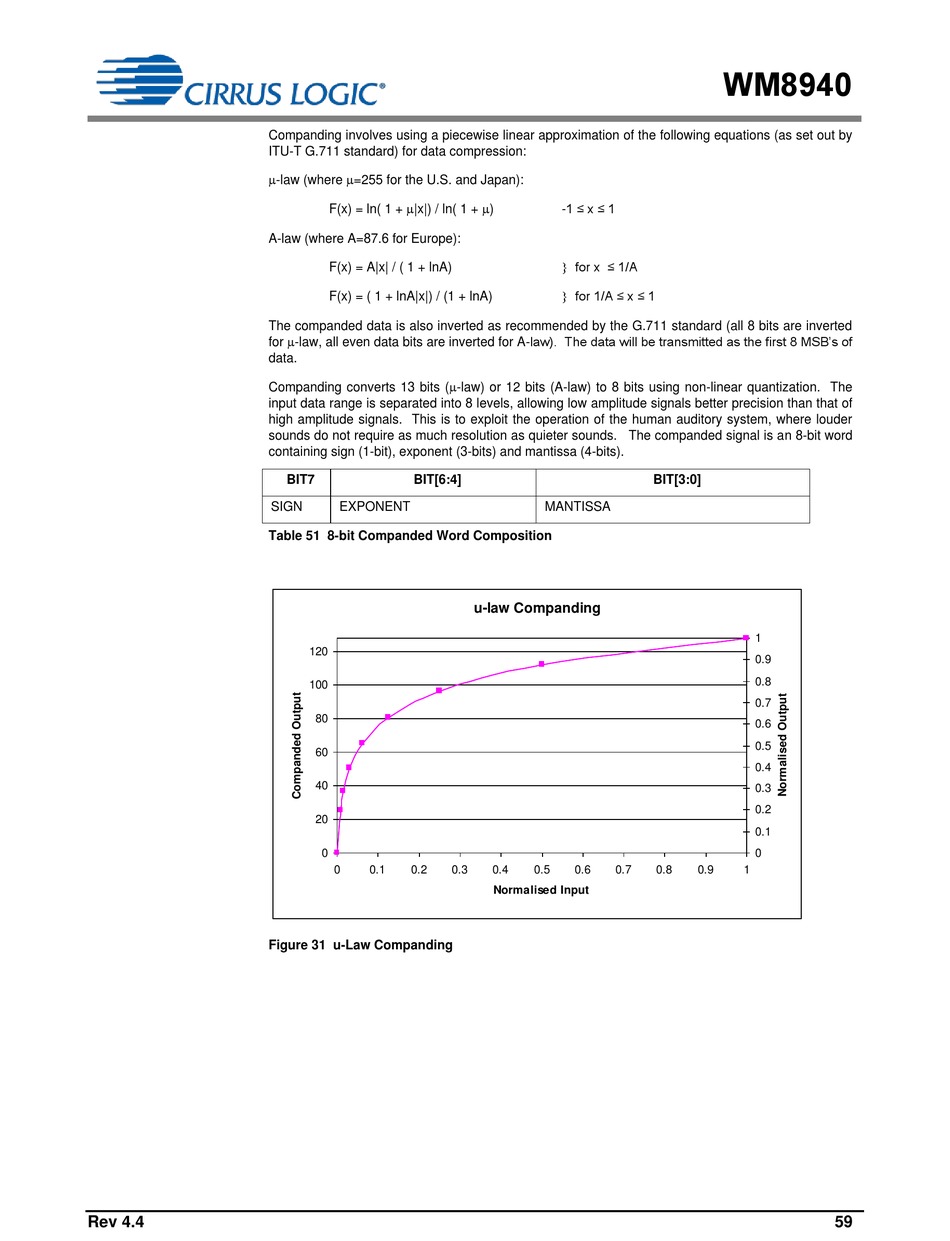

Figure 31 u-Law Companding
-1 ≤ x ≤ 1
 for x ≤ 1/A
 for 1/A ≤ x ≤ 1
MANTISSA
u-law Companding
0.3 0.4 0.5 0.6 0.7
Normalised Input
WM8940
BIT[3:0]
1
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0.8 0.9 1
