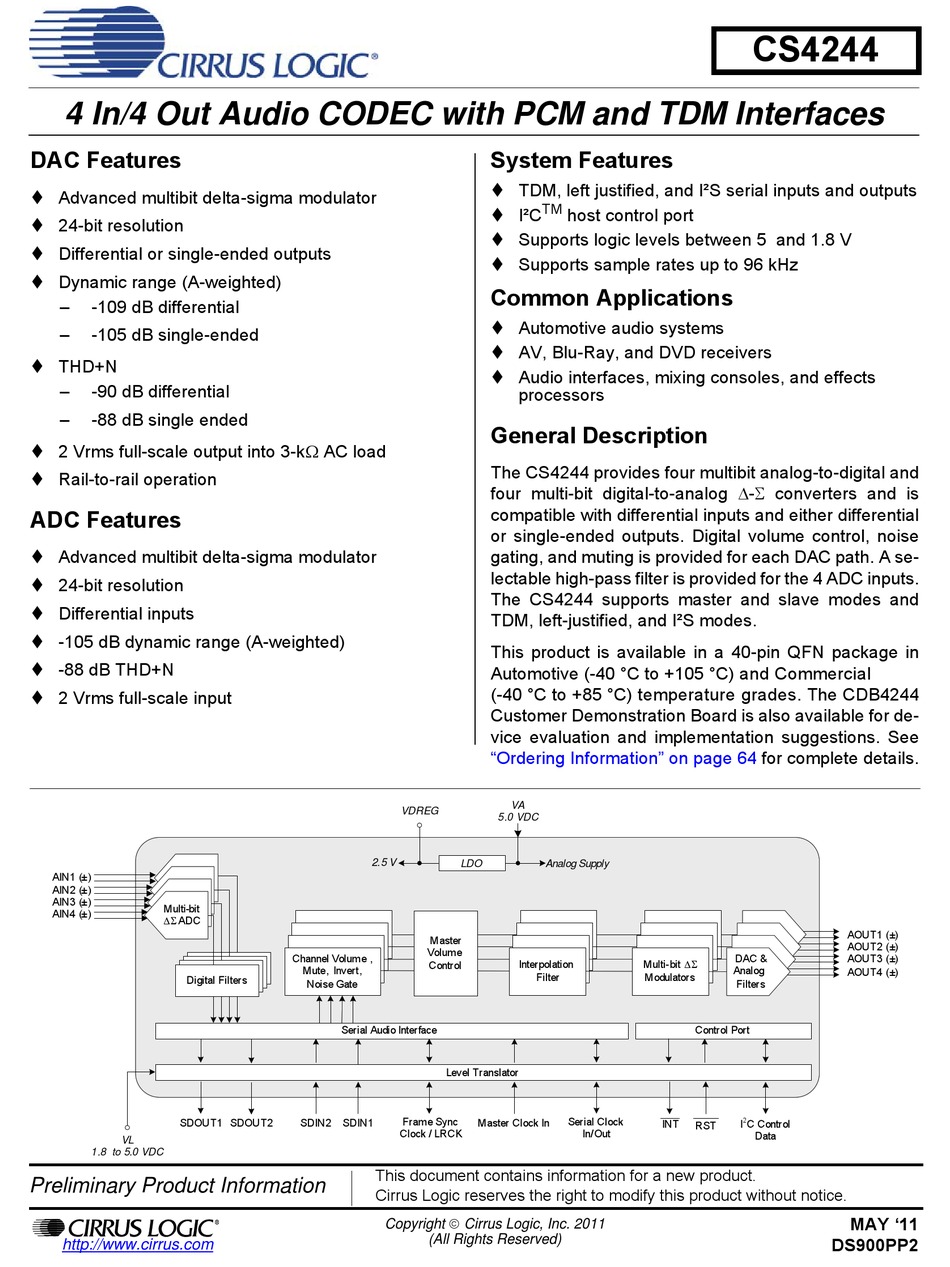

4 In/4 Out Audio CODEC with PCM and TDM Interfaces
DAC Features
Advanced multibit delta-sigma modulator
24-bit resolution
Differential or single-ended outputs
Dynamic range (A-weighted)
–
-109 dB differential
–
-105 dB single-ended
THD+N
–
-90 dB differential
–
-88 dB single ended
2 Vrms full-scale output into 3-k AC load
Rail-to-rail operation
ADC Features
Advanced multibit delta-sigma modulator
24-bit resolution
Differential inputs
-105 dB dynamic range (A-weighted)
-88 dB THD+N
2 Vrms full-scale input
AIN1 (±)
AIN2 (±)
AIN3 (±)
Multi-bit
AIN4 (±)
ADC
Digital Filters
SDOUT1
VL
1.8 to 5.0 VDC
Preliminary Product Information
http://www.cirrus.com
VDREG
2.5 V
Channel Volume ,
Mute, Invert ,
Noise Gate
Serial Audio Interface
Frame Sync
SDOUT2
SDIN2
SDIN1
Clock / LRCK
This document contains information for a new product.
Cirrus Logic reserves the right to modify this product without notice.
Copyright Cirrus Logic, Inc. 2011
System Features
TDM, left justified, and I²S serial inputs and outputs
TM
I²C
host control port
Supports logic levels between 5 and 1.8 V
Supports sample rates up to 96 kHz
Common Applications
Automotive audio systems
AV, Blu-Ray, and DVD receivers
Audio interfaces, mixing consoles, and effects
processors
General Description
The CS4244 provides four multibit analog-to-digital and
four multi-bit digital-to-analog - converters and is
compatible with differential inputs and either differential
or single-ended outputs. Digital volume control, noise
gating, and muting is provided for each DAC path. A se-
lectable high-pass filter is provided for the 4 ADC inputs.
The CS4244 supports master and slave modes and
TDM, left-justified, and I²S modes.
This product is available in a 40-pin QFN package in
Automotive (-40 °C to +105 °C) and Commercial
(-40 °C to +85 °C) temperature grades. The CDB4244
Customer Demonstration Board is also available for de-
vice evaluation and implementation suggestions. See
"Ordering Information" on page 64
VA
5.0 VDC
LDO
Analog Supply
Master
Volume
Interpolation
Control
Filter
Level Translator
Serial Clock
Master Clock In
In/Out
(All Rights Reserved)
CS4244
for complete details.
DAC &
Multi-bit
Analog
Modulators
Filters
Control Port
2
INT
I
C Control
RST
Data
AOUT1 (±)
AOUT2 (±)
AOUT3 (±)
AOUT4 (±)
MAY '11
DS900PP2
