Appendix A: Interface Specifications

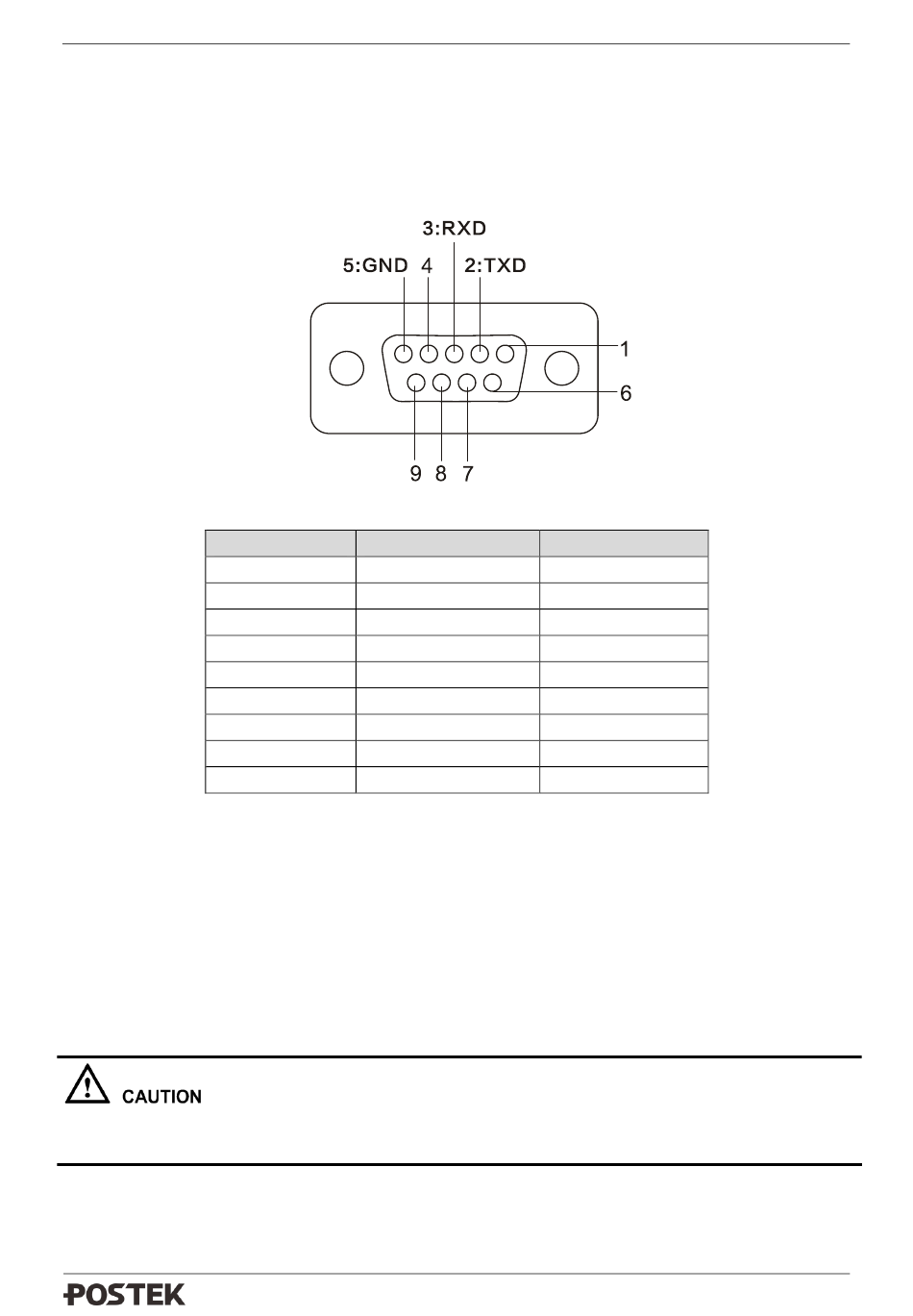

The RS232 connector on the printer is a DB9F:
Baud rate: 9600, 19200, 38400, 57600
Data format: 8 data bits, 1 start bit or 1 stop bit.
Flow control: None. If you are using software or drivers under the Windows environment, the flow
control must be set to "hardware."
Any communications port can transmit data from the host (RS232, Ethernet, or USB). Preliminary
communications settings are not required since the printer will automatically detect which port is
active.
Never send data from 2 ports at the same time. Data cannot be sent to more than one port
simultaneously or data corruption and print errors may occur.
Number Description
1
2
3
4
5
6
7
8
9
Definition
/
Out
In
/
- Ground
/
/
/
/
Appendix A: Interface Specifications
/
TX
RX
/
/
/
/
/
