Postek I Series User Manual

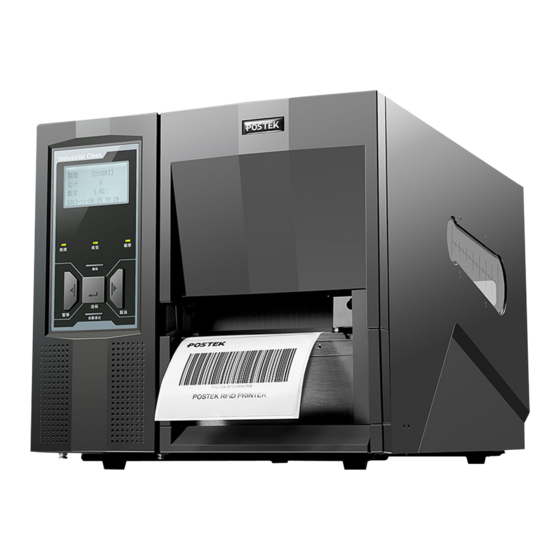

Barcode label printer
Hide thumbs Also See for I Series:
Table of Contents

Advertisement

Quick Links

I S e r i e s B a r c o d e L a b e l P r i n t e r

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Postek I Series

Summary of Contents for Postek I Series

  • Page 1 I S e r i e s B a r c o d e L a b e l P r i n t e r...
  • Page 2 © 2008-2012 by Postek Electronics Co., Ltd. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of Postek. No patent liability is assumed, with respect to the use of the information contained herein.
  • Page 3 (see FCC Notice). Static electricity that accumulates on the surface of the human body or other objects can damage the print head or electronic components in the I Series printer. Observe proper electrostatic safety precautions when handling.

  • Page 4: Table Of Contents

    I Series User’s Manual Table of Contents Preface ................................1 Important Notice, Read Me First........................1 Chapter 1: Introduction ........................... 2 Printer Specifications................................2 Contents of Box ..................................3 Packing List ................................3 Chapter 2: Setup and Use ..........................4 Setting up the Printer ................................4 Main Parts and Structures ............................4...

  • Page 5: Preface

    This manual explains how to set up and begin using your I Series printer. It also provides detailed information on configuring your printer, basic operations, care and troubleshooting.

  • Page 6: Chapter 1: Introduction

    I Series User’s Manual Chapter 1: Introduction Chapter 1: Introduction Printer Specifications Mode I200 I300 Printing method Direct Thermal & Thermal Transfer Printing resolution 203 dpi (8 dots/mm) 300 dpi (11.8 dots/mm) Max printing speed 6 ips (152.4 mm/s) 6 ips (152.4 mm/s) Max printing width 4.25″...

  • Page 7: Contents Of Box

    1 pc Warranty card 1 pc *CD-ROM pack 1 pc *Note: CD-ROM pack includes I Series printer driver, I Series User’s Manual and the Programming Manual, and label software. Ribbon I Series Printer CD ROM Figure 1: Printer and Accessories...

  • Page 8: Chapter 2: Setup And Use

    I Series User’s Manual Chapter 3: Operations and Settings Chapter 2: Setup and Use Setting up the Printer Before setting up the printer consider the following: 1. Make sure there is adequate space around the printer for loading consumables and proper ventilation.
  • Page 9 I Series User’s Manual Chapter 3: Operations and Settings Figure 3 1. Platen Roller 5. Bolt ESD Brush 2. Printhead Module 6. Positioning Arm – Media Roll 10. Lever 3. Ribbon Supply Spindle 7. External Media Loading Opening 11. Media Sensor Cover Plate 4.
  • Page 10 I Series User’s Manual Chapter 3: Operations and Settings Figure 4 1. RS-232 Serial Port 3. PS/2 Port 5. AC In Port 2. USB Port 4. Power Switch 6. Ethernet Port Figure 5 Media Sensor Handle Ribbon Path Media Guide Slide...

  • Page 11: Connecting The Printer

    The I Series printer supports RS-232 Serial and USB interface connections. Note: When connecting the I Series printer to a computer via the USB interface cable, make sure to utilize the same USB port used during the driver installation process, which enables the printer to retrieve needed commands or data from the PC.

  • Page 12: Loading The Ribbon

    I Series User’s Manual Chapter 3: Operations and Settings Loading the Ribbon Note: Load ribbon only when using the thermal transfer printing method. Remove any ribbon that may be loaded when using the direct thermal printing method. To install the ribbon: Lift to open the right cover of the printer.

  • Page 13: Loading The Media

    Chapter 3: Operations and Settings Loading the Media I Series printers can be operated in three different modes: Standard mode, Peel-off mode, and Cutting mode. In Standard mode, each printed label remains on the backing liner. In Peel-off mode, each printed label is peeled away from the backing liner manually.

  • Page 14: Peel-Off Mode

    To load media into the I Series printer while using Peel-off Mode, follow the Standard Mode procedures. Cutting Mode: Using the I Series in Cutting Mode requires an optional rotary cutter. See an authorized Postek Reseller for additional information. With the optional rotary cutter, the media loading instructions are provided.
  • Page 15 I Series User’s Manual Chapter 3: Operations and Settings Handle Media Sensor Pointer Media Sensor Handle Figure 9 Slide the Media Sensor Handle to adjust the position of the Media Sensor Pointer (white arrow), making sure it is pointing to the label (not anywhere outside of the label).

  • Page 16: Chapter 3: Operations And Settings

    The power switch is on the back panel of the printer. The symbols on the switch are defined as follows: ━ —ON 〇 —OFF The Front Panel The Front Panel of the I SERIES printer consists of: Three Indicator Lamps: MEDIA, READY and RIBBON T hree multi function buttons : PAUSE, FEED and CANCEL Indicator Lamps The three lamps indicate the status of the printer (please refer to Chapter 4: Troubleshooting, for error indicators).

  • Page 17: Lcd Display

    I Series User’s Manual Chapter 3: Operations and Settings Panel Buttons The five buttons have different functions based on the mode of the operation is performed. Mode Function FEED Feed one label - Press once to pause current print job...

  • Page 18: Lcd Panel Operation

    I Series User’s Manual Chapter 3: Operations and Settings LCD Panel Operation LCD can display printer status, printed label quantity, error messages, and can also assist in configuring the printer. 1. Examples of LCD display Ready to print READY [203DPI] Total = number of pages printed.
  • Page 19 Default: Disable Options: Enable, Disable. Dump Mode Default: Disable. Return Return to main menu. Tear-off Offset Positioning Offset The increment, per I Series model are as follows: Cutting Offset – I200 is 0.125mm – I300 0.085 mm Peeling Offset Offset settings...

  • Page 20: Tear-Off

    I Series User’s Manual Chapter 3: Operations and Settings Tear-Off Grab printed label Tear down Figure 10 1. Press MENU to enter setup menu: Common Settings → Tear Off, select Enable. 2. Follow the directions shown in Figure 10 to tear off the label.

  • Page 21: Manual Peel-Off

    I Series User’s Manual Chapter 3: Operations and Settings Manual Peel-Off a. Press the printed label downwards b. Press the label to printer c. Remove the label Figure 11 1. Press MENU to enter setup menu: Common Settings → Manual Peel Off, select Enable.

  • Page 22: Cutting Mode

    I Series User’s Manual Chapter 3: Operations and Settings Cutting Mode Note: The Rotary Cutter Kit is an optional accessory. 1. Turn on the printer and enter the Setup Menu by pressing the Setup/Exit button on the Front Panel. 2. Enable the cutter under the Common Setting submenu.
  • Page 23 I Series User’s Manual Chapter 3: Operations and Settings Figure 13...

  • Page 24: Adjusting The Pressure Of The Printhead

    #1 towards Increase or Decrease as required. Then first fasten screw #1, then the #2. Windows Driver and Label Software The I Series printer driver is packaged with the printer in the CD-ROM pack, and is compatible with the following operating systems: ...

  • Page 25: Chapter 4: Maintenance

    7. Use a cotton swab dipped in anhydrous isopropyl alcohol. Rub the swab along the Printhead until the swab no longer accumulates ink 8. Let the Printhead dry before using the I Series again. Cleaning the Platen Roller The Platen Roller, located at the exit point and underneath labels, supports the labels as they feed out of the printer. The roller can accumulate debris from consumables, such as dirt, sand, dust or glue.

  • Page 26: Cleaning The Printer Interior

    I Series User’s Manual Chapter 4: Maintenance Cleaning the Printer Interior Over time, the printer’s interior may collect dust or debris from the consumables. It is advised to periodically clean the printer’s interior in order to prevent the accumulated debris from damaging internal parts.

  • Page 27: Chapter 5: Troubleshooting

    Media sensor is broken Contact an authorized POSTEK service provider for technical support. Note: If you are using continuous media without gaps or black lines, please make sure the correct Media Type settings are input in PosLabel software.

  • Page 28: Miscellaneous

    1. Check the interface cable for proper connection. 2. Ensure the I Series printer is powered on. If the trouble still exists, please contact an authorized POSTEK service provider for technical support. Data Sent but Not Printing 1. Ensure the correct driver is chosen in the label software.

  • Page 29: Poor Printing Quality

    Recovery After the miscellaneous has been cleared, press the CANCEL button to clear the alarm or restart the printer to resume the printing automatically. Note: For errors not listed here, please contact an authorized POSTEK Service Provider for further assistance.

  • Page 30: Appendix A: Interface Specifications

    I Series User’s Manual Appendix A: Interface Specifications Appendix A: Interface Specifications RS232 Serial The RS232 connector on the printer is a DB9F: Direction Definition Ground Connection with host: Host 25S Printer 9P Host 9S Printer 9P TX 2 ……… 3 RX RX 2 ………...

  • Page 31: Appendix B: Ascii Table

    I Series User’s Manual Appendix B: ASCII Table Appendix B: ASCII Table “ XOFF & ‘ < > Note: The € sign is included in the embedded table at DEC128 or HEX 80...
  • Page 32 0 3 . 0 7 1 3 . 0 1 1 H e a d q u a r t e r s U S O p e r a t i o n s P o s t e k E l e c t r o n i c s C o . , L t d . P o s t e k T e c h n o l o g i e s , I n c .

This manual is also suitable for:

I200I300
