iQ200 User's Manual
6. Position the media roll in the middle of the Spindle, using the ruler on the Media Spindle for
alignment. See Figure 2-11.
7. Thread the media under the Media Guide Rod, over and pass the Platen Roller to the front of
the printer.
8. Slide the Media Guides to the edge of the media, making sure that the media remains flat and is
placed in the middle of the Tear-off Bar. This can be checked with the ruler on the Tear-off Bar.
See Figure 2-12.
9. Press down the Handle of the Printhead to lock the Printhead, then close the right cover. See
Figure 2-13.

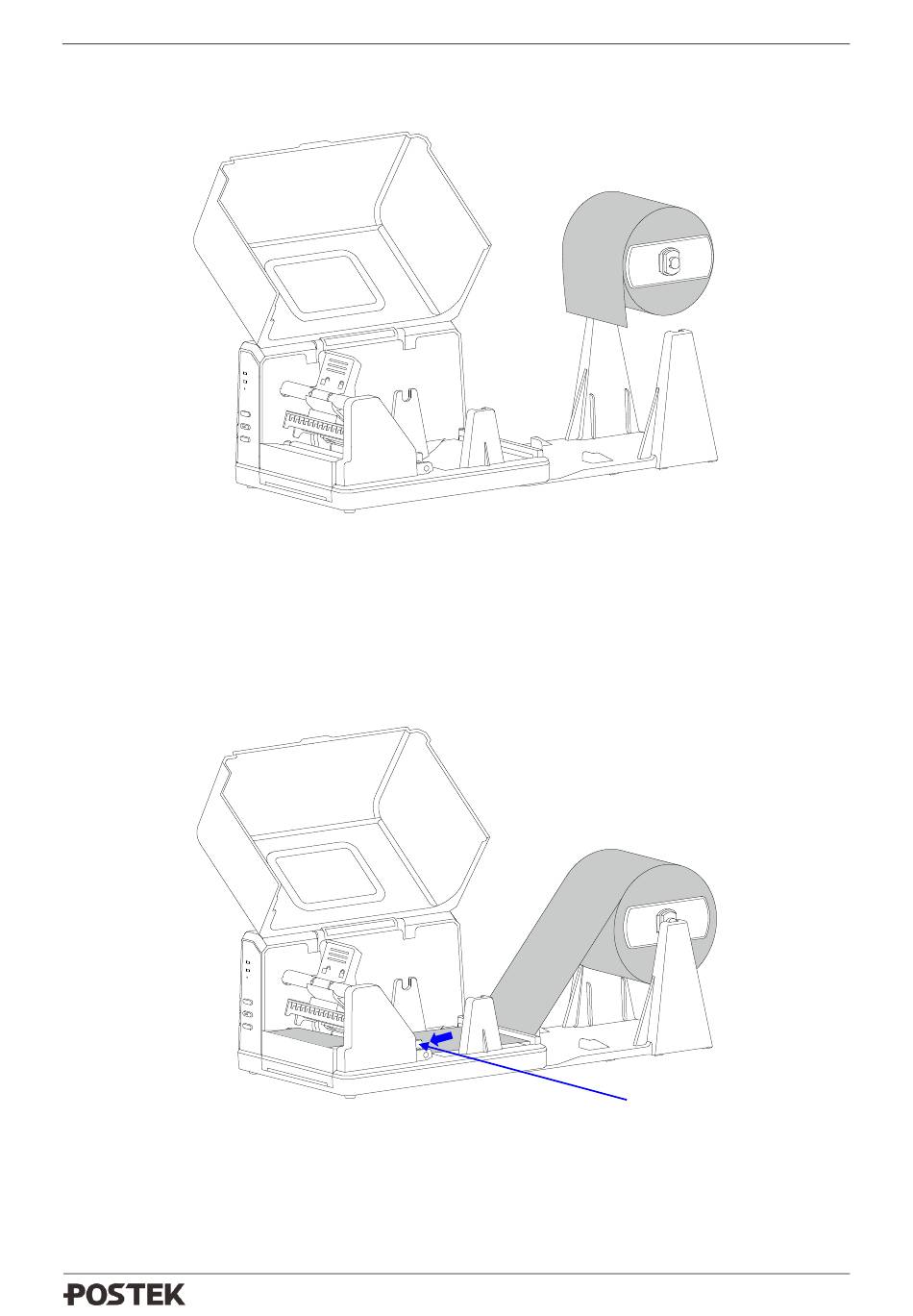

Figure 2-11 Load the Media
Figure 2-12 Thread the Media
Chapter 2: Setup and Use
Media Guide
14
