iQ200 User's Manual

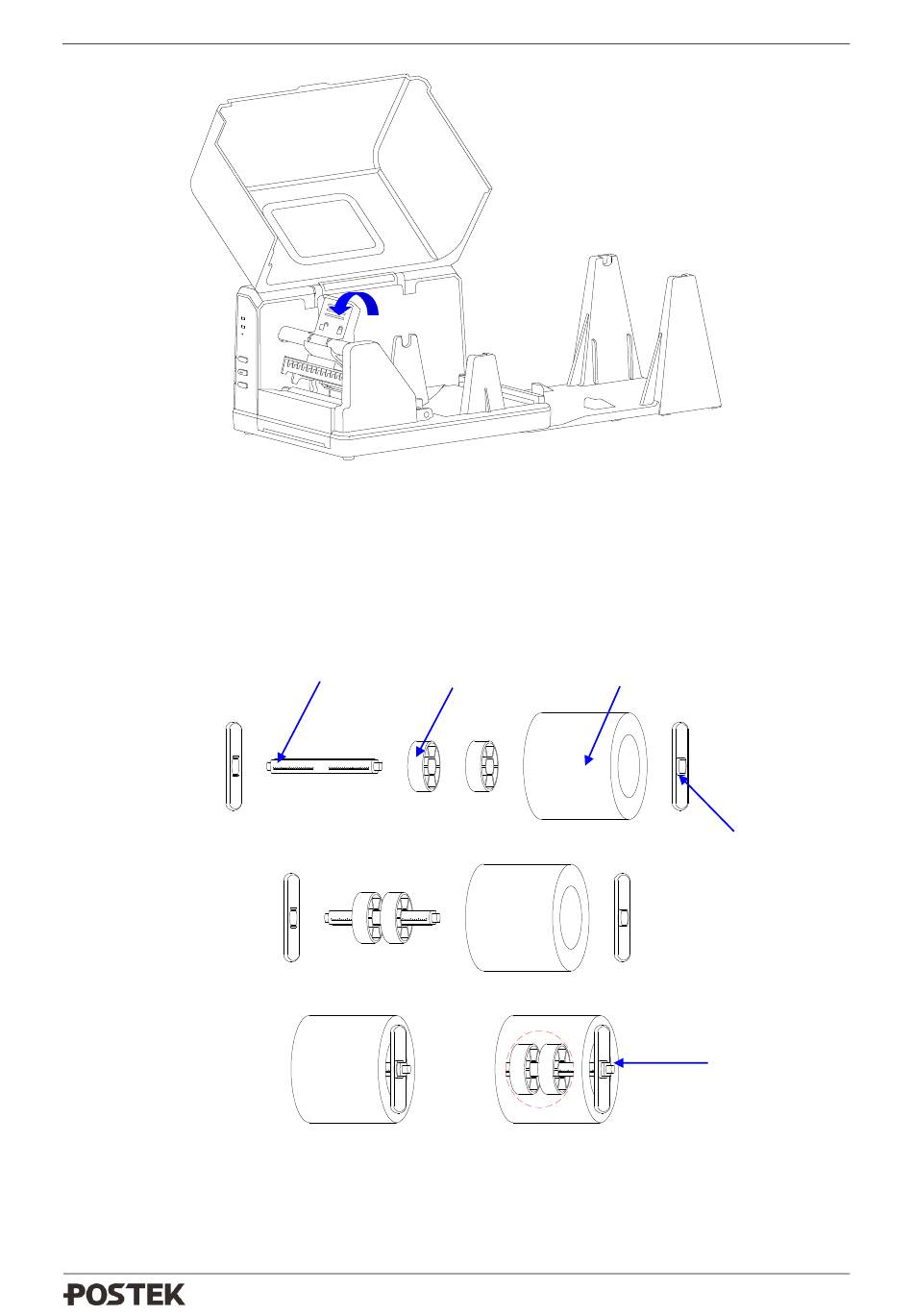

3. Load a roll of media (labels facing up) on the Media Spindle, then slide the two Media Roll
Guides, with smooth sides facing toward the media, onto the Media Spindle from each end until
both Media Roll Guides touch the media. When placing a roll of media with a 3" ID core,
please slide the two Core Adapters onto the Media Spindle first, as shown in Figure 2-10.
5. Place the entire unit onto the External Media Stand.
Figure 2-9 Lift the Handle
Media Spindle Media Roll Adaptors
Figure 2-10 Place Media Roll on Media Spindle
Media Roll
4.
Chapter 2: Setup and Use
Media Roll Guide
Media Roll
Module correctly
fitted with Spindle
and Guides
13
