3. Place the entire unit into the printer's Media Compartment.
4. Position the media roll in the middle of the Spindle, using the ruler on the Media Spindle for
alignment. See Figure 2-6.
Media Spindle
Media Roll Adaptors

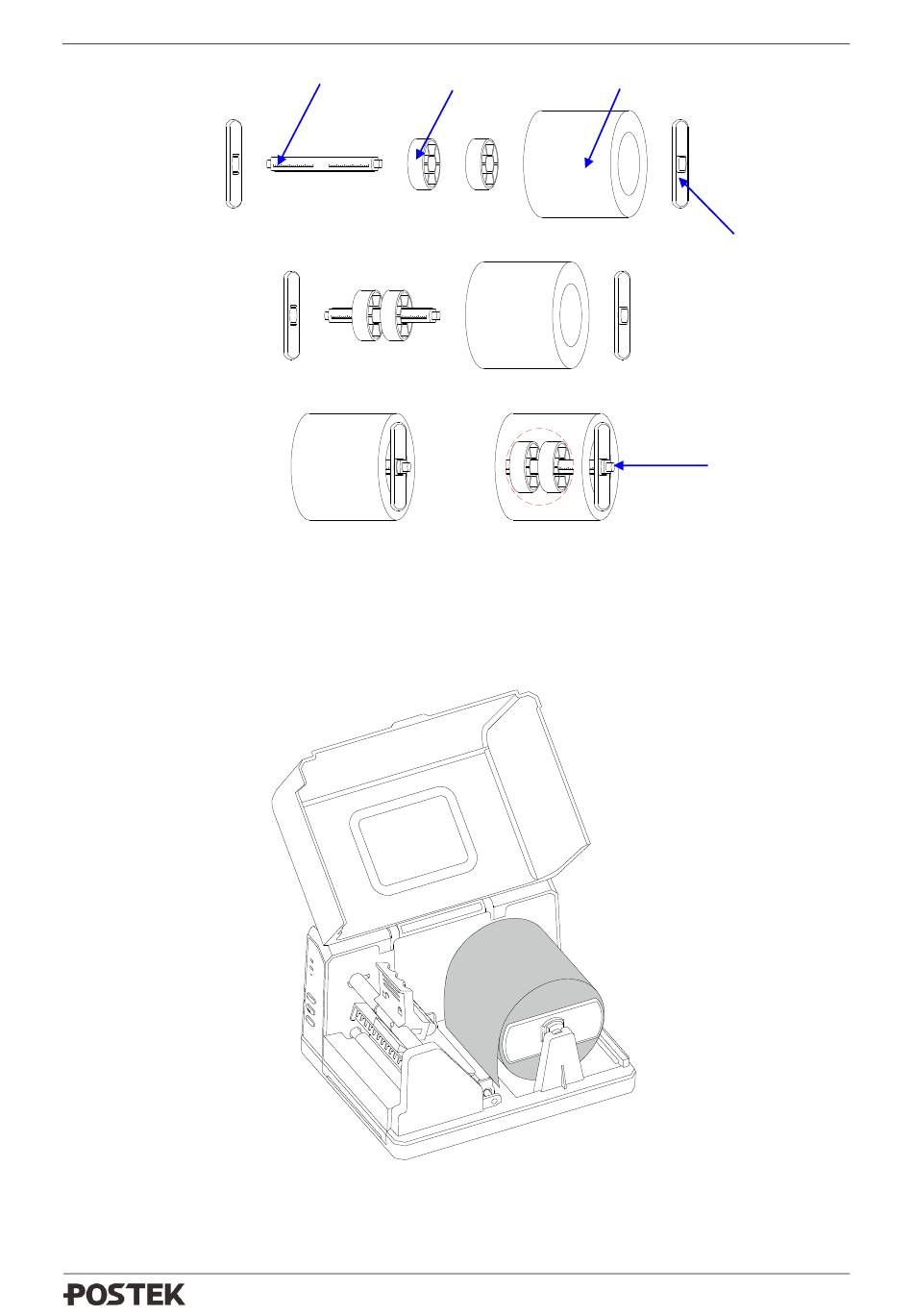

Figure 2-5 Place Media Roll on Media Spindle
Figure 2-6 Load the Media
Chapter 2: Setup and Use
Media Roll
Media Roll Guide
Media Roll
Module correctly
fitted with Spindle
and Guides
