3.1.4 DIP Switches

The DIP Switch is located on the back of the printer, as shown in Figure 3-2.
Position
1
2
3
4
5
6
7&8

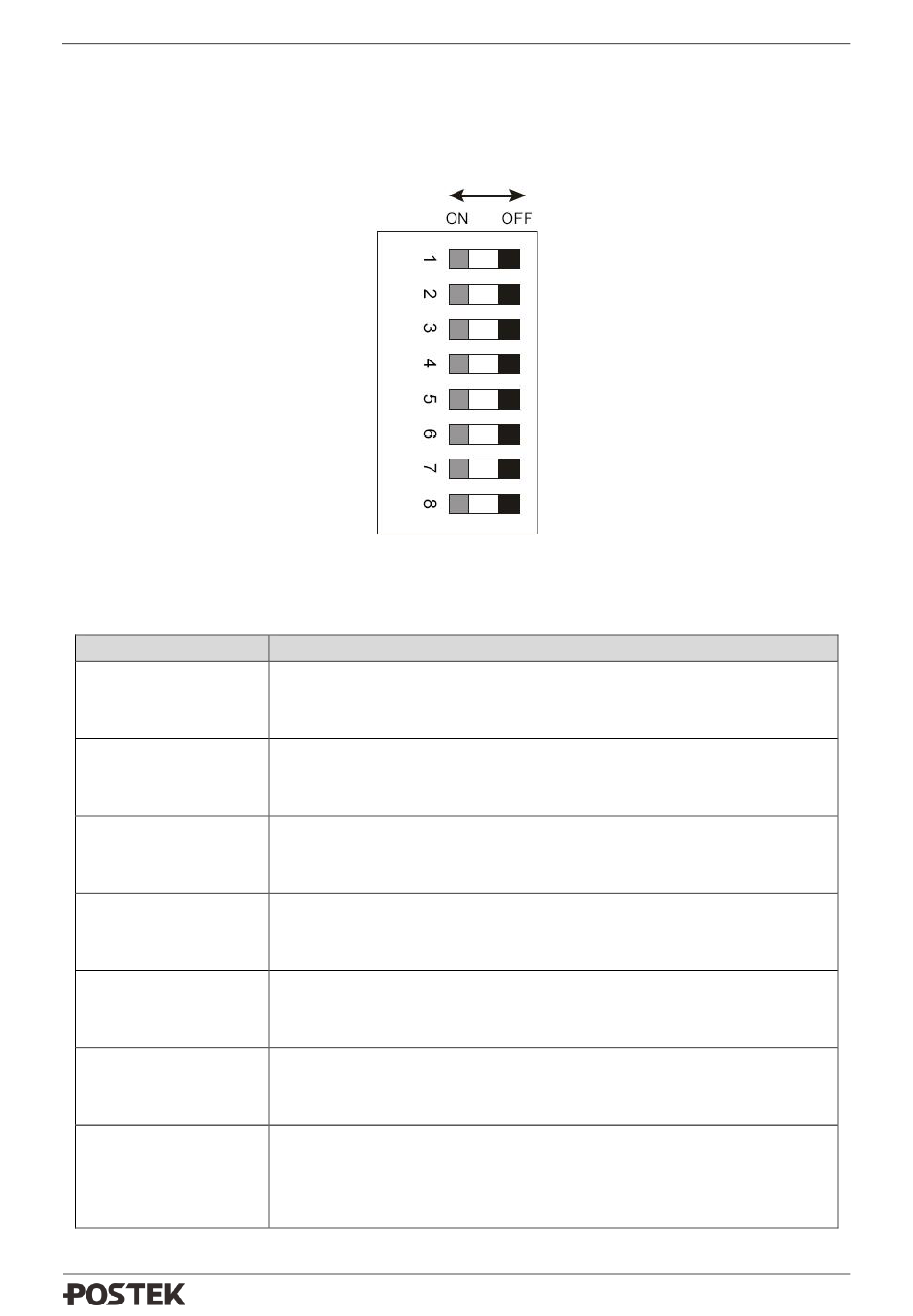

Figure 3-2 DIP Switch
Table 3-3 DIP Switch Description
Corresponding Functions
Set printing mode
ON: Direct Thermal
OFF: Thermal Transfer
Set Tear-off Mode
ON: Tear-off Mode enabled
OFF: Tear-off Mode disabled
Set Cutter Mode (Only available on models with Cutter installed)
ON: Cutter Mode enabled
OFF: Cutter Mode disabled
Set Peeler Mode (Only available on models with Peeler installed)
ON: Peeler Mode enabled
OFF: Peeler Mode disabled
Set the media sensor type
ON: Transmissive
OFF: Reflective
Set DHCP (Dynamic Host Configuration Protocol)
ON: Enabled
OFF: Disabled
Set serial BAUD-RATE
BAUD-RATE for each combination:
7 OFF & 8 OFF: 9600
7 ON & 8 OFF: 19200
