2.4 Changing the Position of Reflective Media Sensor

1. Open the media sensor cover on the bottom side of the printer and loosen the screws.
2. Move the media sensor to the appropriate position. See Figure 2-18.
3. Fix the screws back and put back the media sensor cover.
Media sensor cover

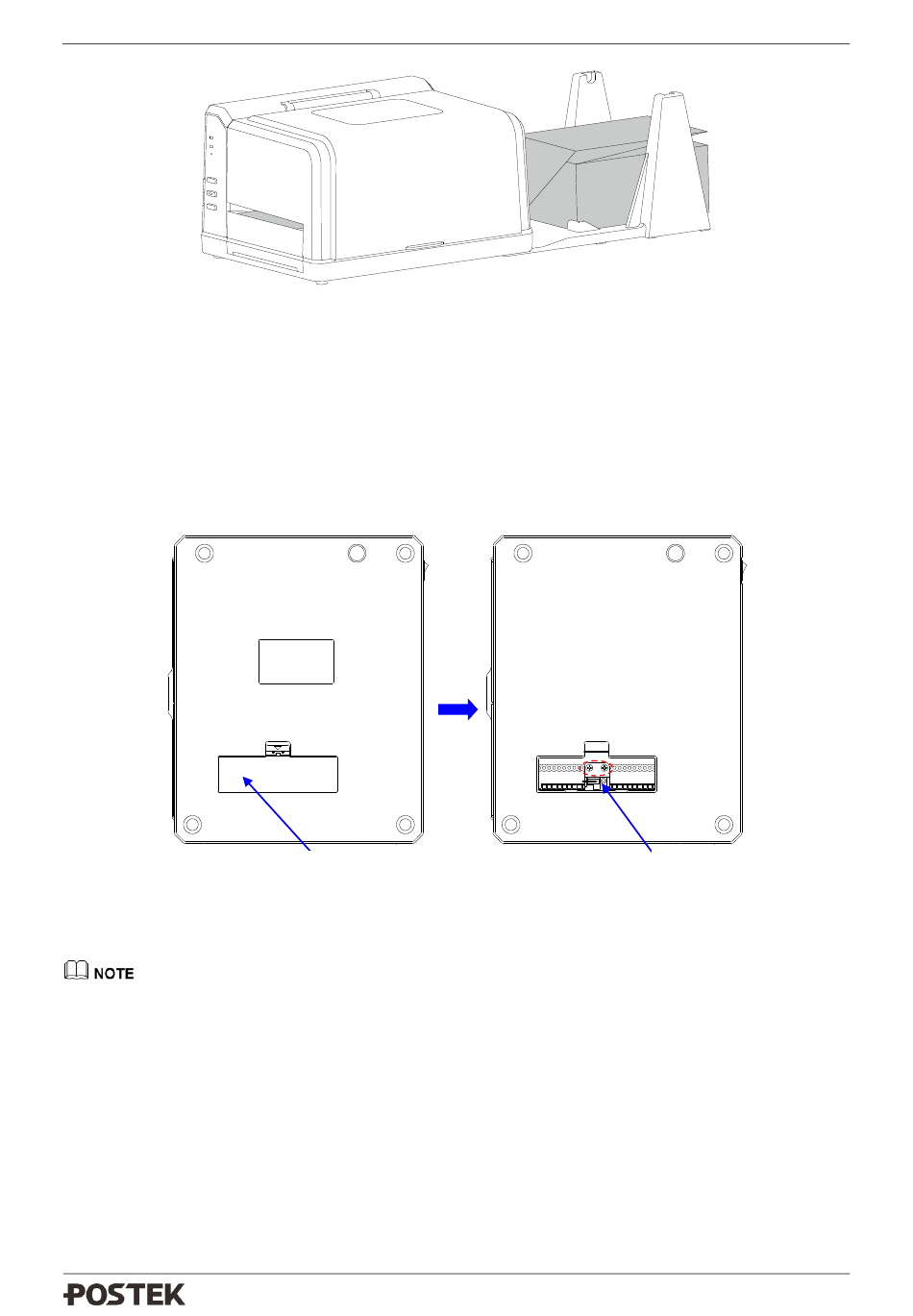

Figure 2-18 Change the Reflective Media Sensor Position
Technically, the Transmissive Sensor is designed to detect a gap, hole or notch between labels,
⚫
the Reflective Sensor is for detecting black marks. However, in many cases, the Reflective
Sensor also can be used to detect gap, hole or notch. When choose Reflective Sensor to detect
gap between labels, please refer to Figure 2-19(a) (b) (c) to adjust the position of the sensor for
different media types as shown, the sensor shall be placed between the dotted lines.
Figure 2-17 Fanfold Label Loaded
Chapter 2: Setup and Use
screw
