6. Hardware installation
This section describes how to install the IMMI module hardware. For information on configuring the
IMMI module software, see

6.1. Required items

You need the following items to install the IMMI module:
• One M6 nut
• One M6 washer
• A TX20 Torx screwdriver
• A box cutter with a 2.5cm (max) blade
• Cutting nippers

6.2. Installing the IMMI module

To install the IMMI module
1. Power down the control box and disconnect the mains cable from the power source.
2. Remove the plate cover on the side of the control box.
Keep the screws and the tooth lock washers to continue installing the hardware.

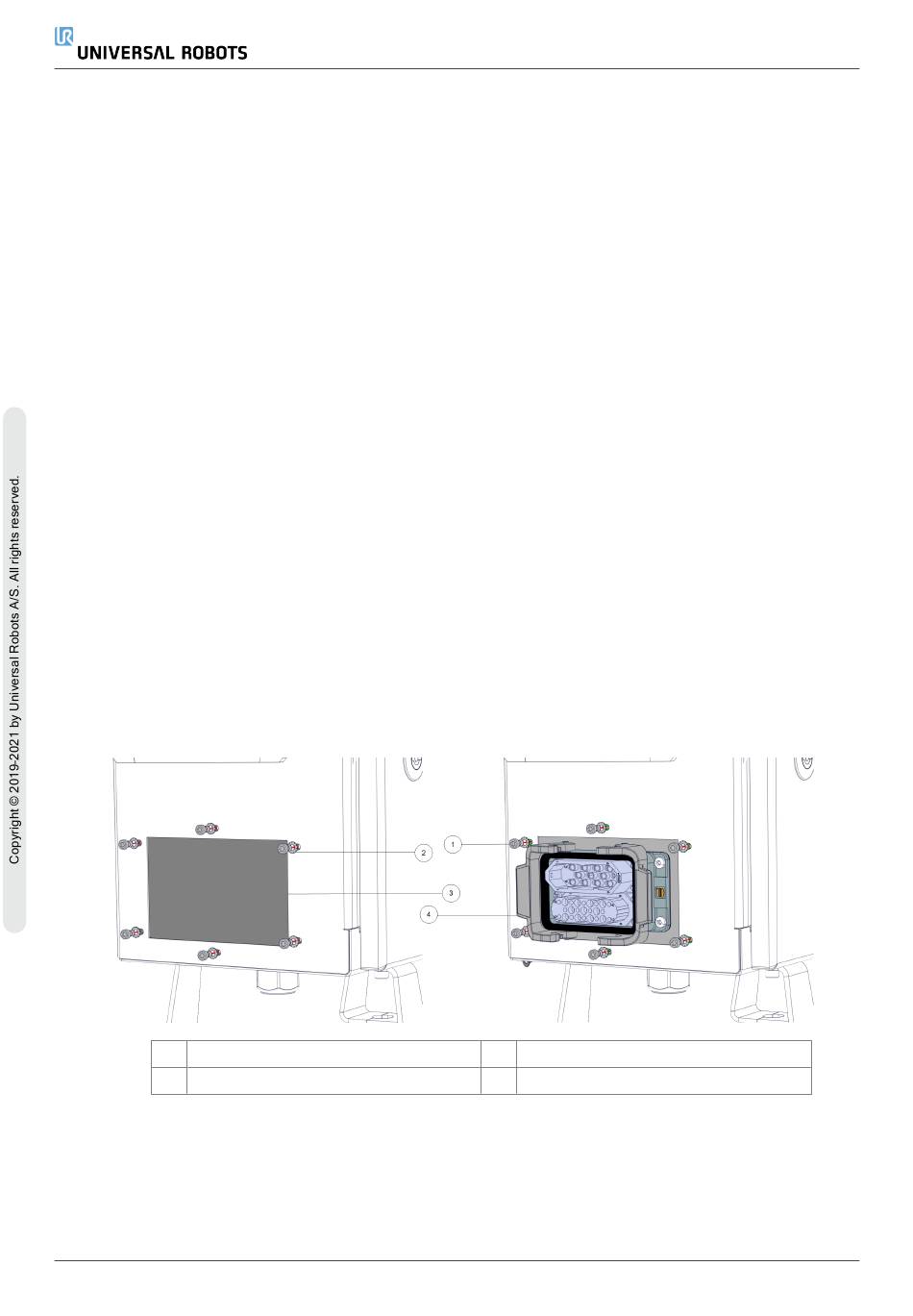

1 screw
3 removed plate
e-Series Injection Molding Machine
Interface (IMMI)
7. Software installation on
12
page 15.
2 tooth lock washer
4 IMMI module
