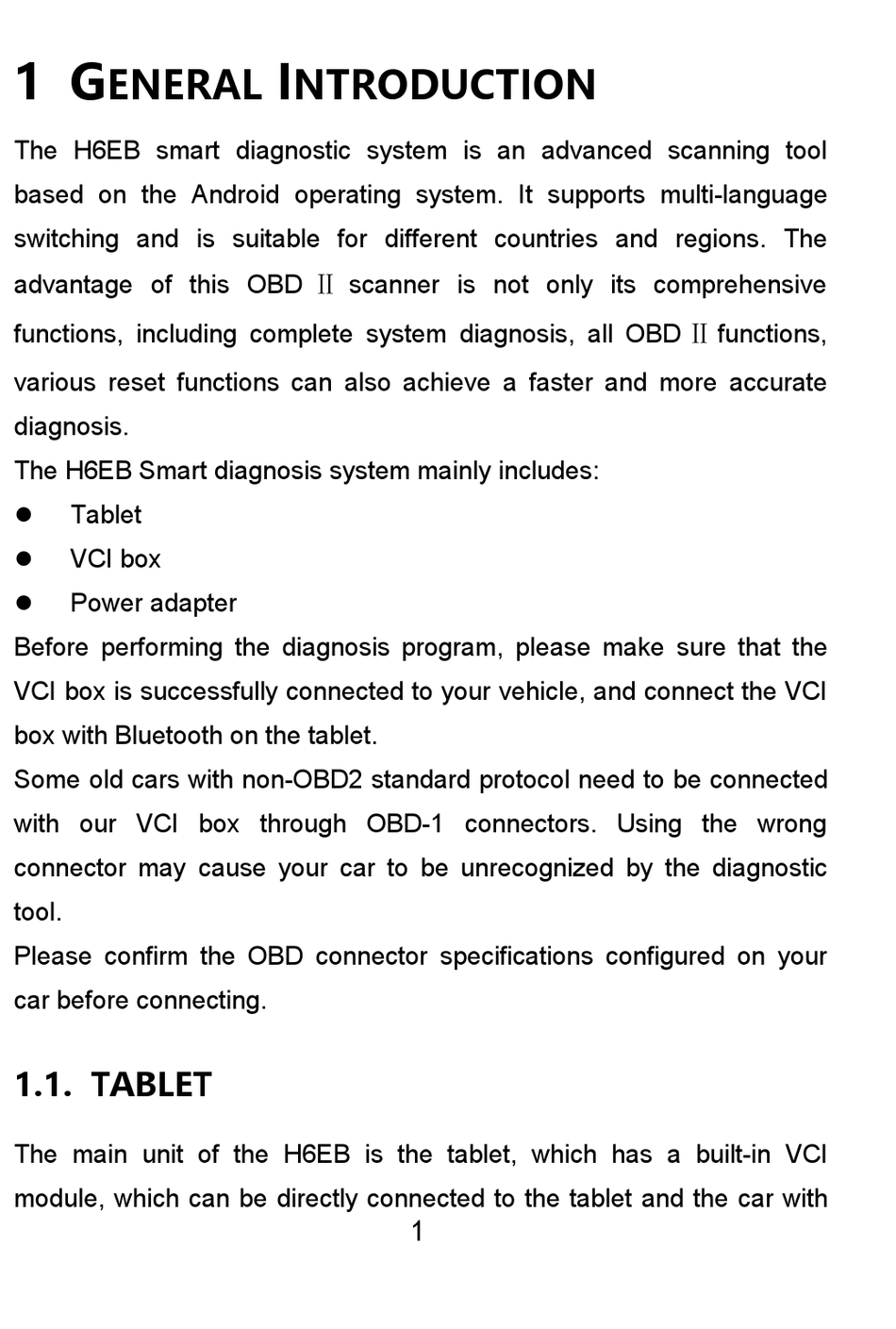

1 G
ENERAL
The H6EB smart diagnostic system is an advanced scanning tool
based on the Android operating system. It supports multi-language
switching and is suitable for different countries and regions. The
advantage of this OBD Ⅱ scanner is not only its comprehensive
functions, including complete system diagnosis, all OBD Ⅱ functions,
various reset functions can also achieve a faster and more accurate
diagnosis.
The H6EB Smart diagnosis system mainly includes:

Tablet


VCI box

Power adapter

Before performing the diagnosis program, please make sure that the
VCI box is successfully connected to your vehicle, and connect the VCI
box with Bluetooth on the tablet.
Some old cars with non-OBD2 standard protocol need to be connected
with our VCI box through OBD-1 connectors. Using the wrong
connector may cause your car to be unrecognized by the diagnostic
tool.
Please confirm the OBD connector specifications configured on your
car before connecting.
1.1. TABLET
The main unit of the H6EB is the tablet, which has a built-in VCI
module, which can be directly connected to the tablet and the car with
I
NTRODUCTION
1
