DIAGNOSIS SYSTEM ENTRANCE

Once activated, you will automatically enter the diagnostic system with
the following main screen. Tap on the diagnosis application button on
the menu, the main interface will be shown as below:

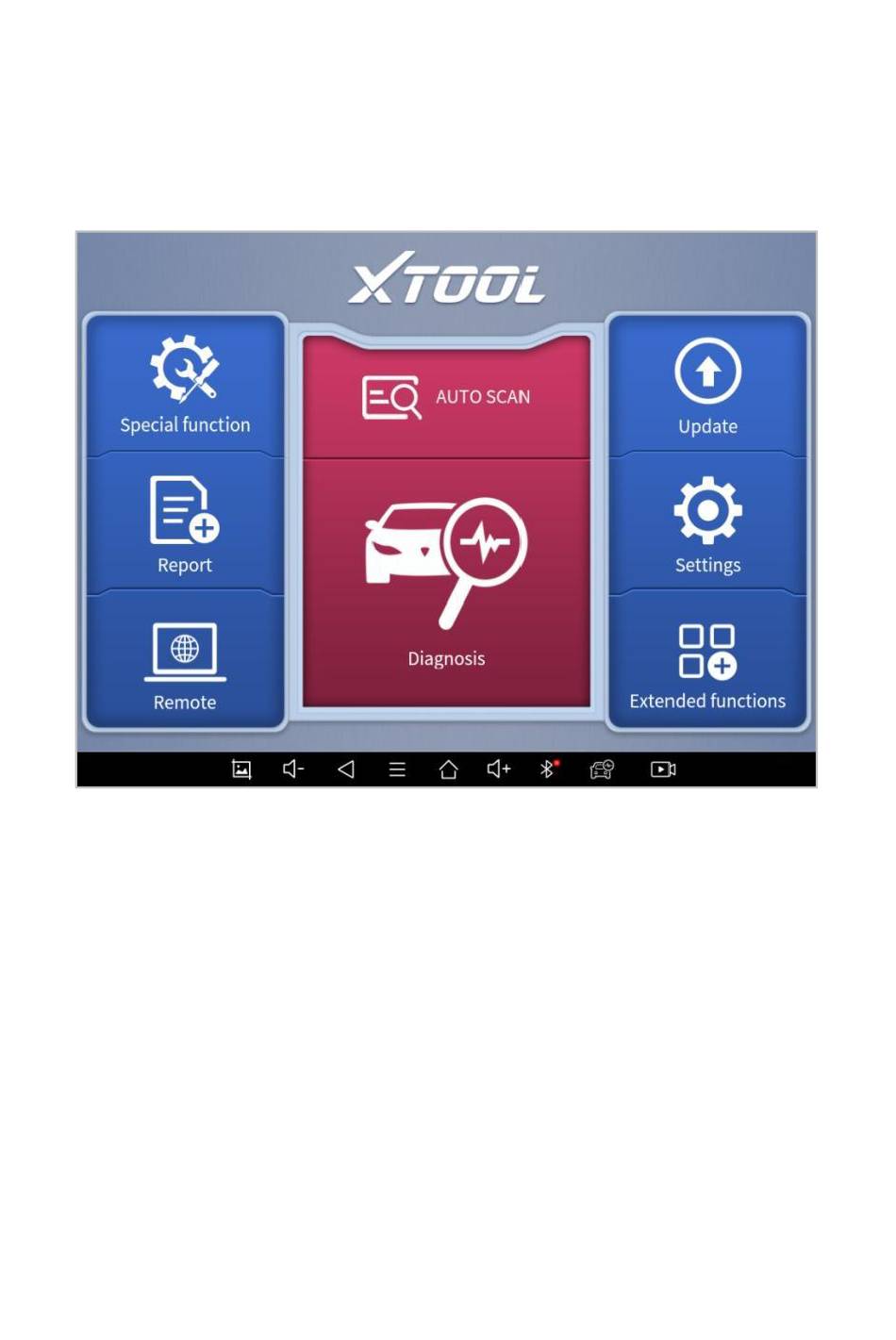

Figure 2-7 Sample of APP Main Page
The main interface is mainly composed of Function Buttons and
Navigation Buttons. The touch screen navigation is menu-driven, and
you can quickly access functions by clicking on the option title and
answering the dialogue window. A detailed description of the menu
structure can be found in the next section Function Buttons.
