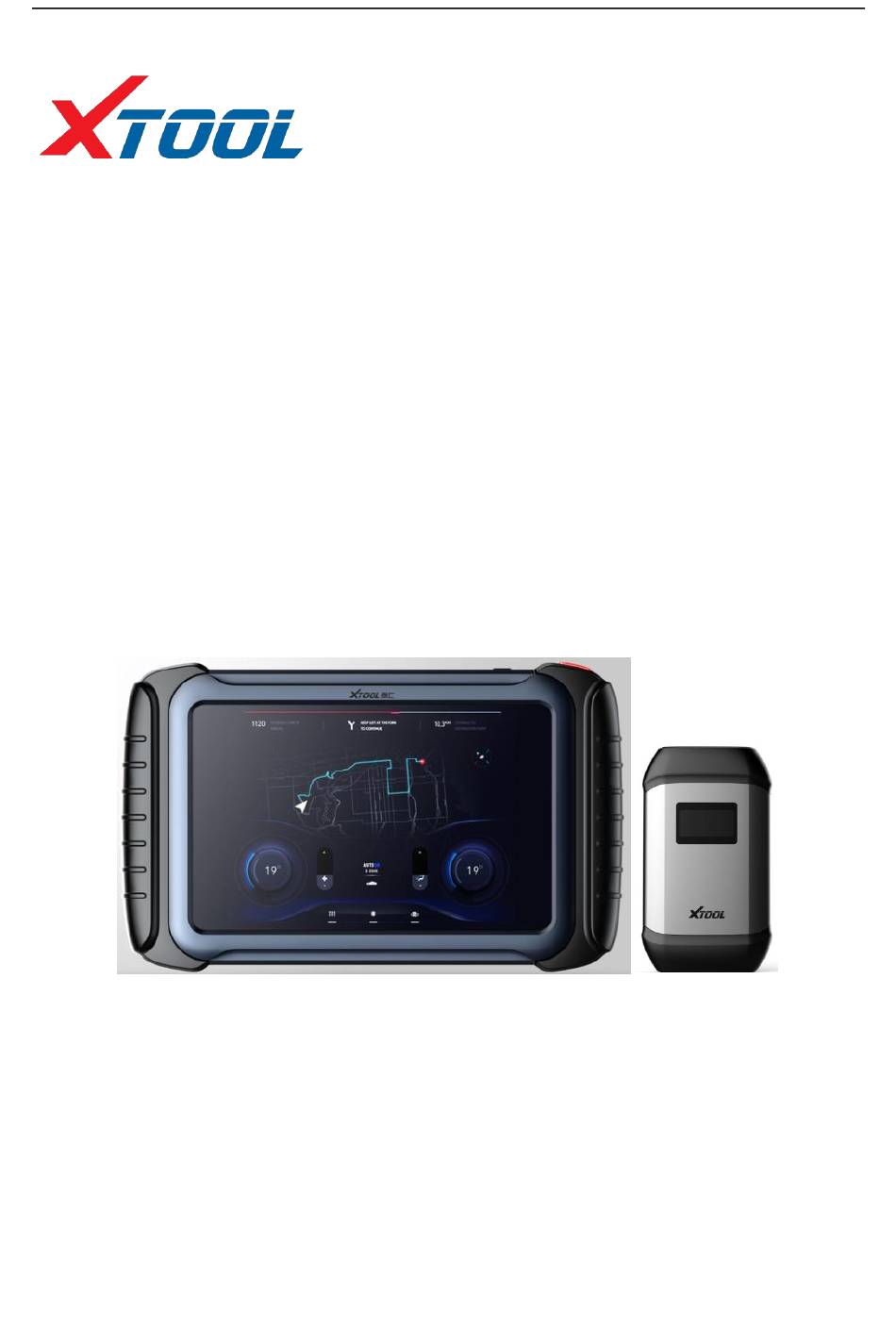

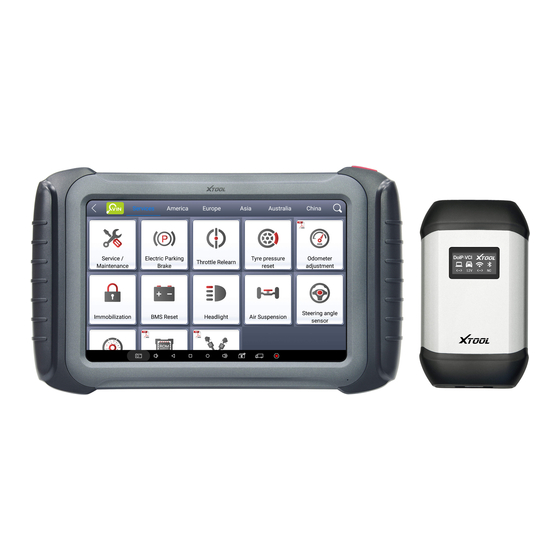

- Page 1 H6 PRO Car Intelligent Diagnosis Platform User Manual Efficient Intelligent Portable Please read this manual carefully before use.
- Page 2 Shenzhen Xtooltech Co., Ltd. In countries that the trademarks, service marks, domain names, logos and the name of the company are not registered, Xtool claims that it still reserves the ownership of the unregistered trademarks, service marks, domain names, logos and the company name.
- Page 3 H6 PRO Intelligent Diagnosis properly connect the engine and the building's exhaust system. The carbon monoxide generated by the engine will cause the body to be unresponsive and even cause serious personal injury or death. ⚫ Wear ANSI-compliant goggles and keep clothing, hair, hands, tools, diagnostics, etc.
-
Page 4: Table Of Contents
Diagnostic function .......................9 2.3.3 Function menu ......................9 Setting .........................12 2.4.1 [Language] ........................12 2.4.2 [Unit]..........................13 2.4.3 [Bluetooth] ........................13 Xtool Cloud (Coming Soon) ..................15 One-click upgrade .......................15 Diagnose report ......................15 2.7.1 View report .........................16 2.7.2 Data playback ......................16 Remote control ......................16... -
Page 5: Chapter I About H6 Pro
H6 PRO Intelligent Diagnosis Chapter I About H6 PRO 1.1 Appearance 1.1.1 Front View 1.1.2 Back View ② speaker ① Camera ③Nameplate... -
Page 6: Interface Of H6 Pro Tablet
H6 PRO Intelligent Diagnosis 1.2 Interface of H6 PRO Tablet 1.2.1 Top View of H6 PRO Tablet ④ ⑤ ① ② ③ ： ① USB3.0 interface Data transfer via USB cable ② Mini HDMI interface： Audio and video transfer ③ DB15 interface： Extended reservation port ④... -
Page 7: Vci Diagnostic Box Appearance
H6 PRO Intelligent Diagnosis 1.3 VCI diagnostic box appearance ② ① ③ ① Display： Display voltage, Bluetooth connection status, etc. ② DB15 interface： Work together with the extension cable and various types of connectors to communicate with vehicle diagnostic port ③... - Page 8 H6 PRO Intelligent Diagnosis Working temperature: -20 to 50℃ (-4 to 126℉) Relative humidity: <90% Appearance size: 310.92*189.17*36.21 (mm)
-
Page 9: Chapter Ii How To Use H6 Pro
Chapter II How to Use H6 PRO 2.1 Machine interface 2.1.1 Main interface 2.1.2 Interface icon Functional Buttons Functional descriptions username 【diagnosis】Read vehicle diagnosis information 【Setting】Language, unit, Bluetooth... -
Page 10: Interface Task-Bar
H6 PRO Intelligent Diagnosis 【Xtool cloud】Online chatting (Coming Soon) 【One-click upgrade】Upgrade software 【Diagnose report】Read vehicle report 【Remote control】 Xtooltech support center and function keys 2.1.3 Interface Task-bar 【Function Description】 Function Button 【Screenshot】 【Decrease the volume】 【Return to the previous interface】... -
Page 11: Connecting Vehicle
If there are special functions, the conditions must be met: engine water temperature 80 °C ~ 105 °C, turn off the headlights and air conditioning, the accelerator pedal remains loose. Open position, etc. 4、If the model or electronic control system to be detected is not found in the H6pro... -
Page 12: Diagnosis
5、It is not recommended to use the wiring harness of Xtooltech CO., LTD for connection test to avoid unnecessary loss. 6、In H6pro communication with the vehicle, direct shutdown is prohibited. The task should be canceled before returning to the main interface. -
Page 13: Diagnostic Function
H6 PRO Intelligent Diagnosis 2.3.2 Diagnostic function Take Volkswagen VW as an example, enter [Dash Board] → enter and display. 2.3.3 Function menu [Read computer information in the car] [Diagnostic code] [Read data stream] [Action test] [Match] [Basic settings] [Display advanced recognition] [Security access] [Encoding]... - Page 14 H6 PRO Intelligent Diagnosis 1、Reading computer information in a car Read ECU version information. Some electronic control systems display system identification or system information menus, which have the same meaning, and read information such as software and hardware version numbers and part numbers. 2、Fault code The fault code function can read the fault code stored in the electronic control ECU.
- Page 15 H6 PRO Intelligent Diagnosis Tip: When detecting the faulty vehicle, if the display system is normal or has no fault code, it means that the relevant fault code is not stored in the ECU or some fault phenomenon is not within the ECU monitoring range, which is mostly a mechanical fault.
-
Page 16: Setting
H6 PRO Intelligent Diagnosis 5、 Match Match various function modes. 6、Basic settings Actuator, sensor initialization. 7、Display advanced recognition Displays the status of the control unit. 8、Secure access Set the login code. 9、Coding Turn on new vehicle features by changing the code. 2.4 Setting 2.4.1 [Language] Check the desired language in the many language options on the right side of the interface. -
Page 17: Unit]
H6 PRO Intelligent Diagnosis 2.4.2 [Unit] Select the unit of measurement, check the metric or imperial system. 2.4.3 【Bluetooth】 1、Enters the settings, clicks Bluetooth, and then clicks Search. The Bluetooth name is the corresponding serial number or Diagnostic. - Page 18 H6 PRO Intelligent Diagnosis 2、Entering the H6PRO setup option, the blue icon on the task-bar shows that the connection is successful. 【 】 2.4.4 Self test Detects the VCI box.
-
Page 19: Xtool Cloud (Coming Soon)
H6 PRO Intelligent Diagnosis 2.5 Xtool Cloud (Coming Soon) All car service technicians using our equipment can check the maintenance information we put on the cloud service platform, and can be used in conjunction with the results of the car diagnosis, and use the forum to communicate with other users. -
Page 20: View Report
H6 PRO Intelligent Diagnosis 2.7.1 View report View diagnostic reports for different models. 2.7.2 Data playback The data playback function allows you to view the model, system, and playback of recorded data. 2.8 Remote control The service technician has encountered problems during the repair process. You can... - Page 21 H6 PRO Intelligent Diagnosis open this application for remote assistance and accept support from the Xtool Technology Center. 1、Boot up, enter the App; 2、Click the [Remote Control] icon to generate and display the device ID; 3、Provide your ID to after-sales technical support staff;...
- Page 22 FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
