Anyscan A30D User Manual
Safety Information
For your own safety and the safety of others, and to prevent damage to the device and
vehicles upon which it is used, it is important that the safety instructions presented throughout
this manual be read and understood by all persons operating or coming into contact with the
device.
There are various procedures, techniques, tools, and parts for servicing vehicles, as well as in
the skill of the person doing the work.
Because of the vast number of test applications and variations in the products that can be
tested with this equipment, we cannot possibly anticipate or provide advice or safety
messages to cover every circumstance. It is the automotive technician's responsibility to be
knowledgeable of the system being tested. It is crucial to use proper service methods and test
procedures. It is essential to perform tests in an appropriate and acceptable manner that does
not endanger your safety, the safety of others in the work area, the device being used, or the
vehicle being tested.
Before using the device, always refer to and follow the safety messages and applicable test
procedures provided by the manufacturer of the vehicle or equipment being tested. Use the
device only as described in this manual. Read, understand, and follow all safety messages
and instructions in this manual.
— 1 —
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Xtool Anyscan A30D
Summary of Contents for Xtool Anyscan A30D
-
Page 1: Safety Information
Anyscan A30D User Manual Safety Information For your own safety and the safety of others, and to prevent damage to the device and vehicles upon which it is used, it is important that the safety instructions presented throughout this manual be read and understood by all persons operating or coming into contact with the device. -
Page 2: Safety Messages
Safety Messages Safety messages are provided to help prevent personal injury and equipment damage. All safety messages are introduced by a signal word indicating the hazard level. DANGER Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury to the operator or to bystanders. - Page 3 Refer to the service manual for the vehicle being serviced and adhere to all diagnostic procedures and precautions. Failure to do so may result in personal injury or damage to the test equipment. To avoid damaging the test equipment or generating false data, make sure the vehicle battery is fully charged and the connection to the vehicle DLC is clean and secure.
-
Page 4: Table Of Contents
2. Layout ....................5 3. Basic Parameters ................6 Chapter II How to use Anyscan A30D 1. App download instructions..............7 2. App activation..................7 3. Anyscan A30D Main Interface and Functional Buttons Descriptions 4. Vehicle Connection Diagnosis ............9 5.Diagnosis and Services..............10 6.Settings ....................13 7. Report....................13 8.Update....................14... -
Page 5: Chapter I About Anyscan A30D
Chapter I About Anyscan A30D 1. Appearance 2. Layout — 5 —... -
Page 6: Basic Parameters

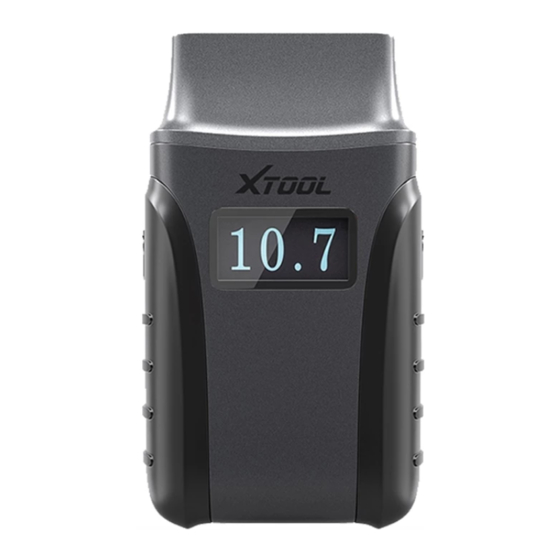

LCD display: display the car voltage OBD 16pin connector Light button Bluetooth Indicator: It turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully Power Indicator: It turns green when power is on Vehicle Indicator: When Anyscan A30 is connected with vehicle successfully, it turns green. 3. -
Page 7: Chapter Ii How To Use Anyscan A30D
Chapter II How to use Anyscan A30D 1.App download instructions 1.1 Support iOS and Android system. Device Mode iPod Touch 1 generation, 2 generation, 3 generation, 4 Ipod touch generation iPhone, iPhone3, iPhone3GS, iPhone4, iPhone4s, iPhone5, Apple iOS (Requires iOS4. - Page 8 2.1 Please activate the App before you use it to test vehicles. 2.2 Input activation code, product serial number (each device will have a serial number and activation code on the certificate of quality paper), user name, email address and password, the system will then save it.
-
Page 9: Anyscan A30D Main Interface And Functional Buttons Descriptions
3.Anyscan A30D Main Interface and Functional Buttons Descriptions 3.1 Main Interface Tap on Anyscan A30D application icon, the main interface and sub-menus will be shown as below。 3.2 Sub-menus and Function Buttons Function Buttons Descriptions It can read diagnostic information, view live data, perform actuation tests and special functions etc. -
Page 10: Diagnosis And Services
5.Diagnosis and Services 5.1 Menu Options After the Anyscan A30D is connected to the vehicle and paired with Anyscan A30D App via Bluetooth connection, diagnosis can be performed. Users can choose the relevant menu for the vehicle being tested. The diagnostic interface is as shown below: Full System Diagnostics：... - Page 11 Malfunction Indicator Light (MIL), and other additional information 5.2 Services Besides the usual system diagnostic functions, Anyscan A30D also has the special function for certain vehicles.The special function section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances.
- Page 12 The most commonly performed service functions include: Service/Maintenance Light Reset EPB Reset SAS Adjust DPF Regeneration Injector Coding ABS Bleeding Gear learning BMS Reset Gearbox Match SRS reset TPMS Reset Service/Maintenance Light Reset：The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the...
-
Page 13: Settings
6. Settings Select the Settings application to open a setup screen to adjust the default setting and view information about the Anyscan A30D system. There are 5 system settings. Language: Tap to select the language you need. Unit: This option allows you to adjust the measurement unit. You can tap British unit or Metric to switch between these two measurement units. -
Page 14: Report
Replay can check what cars have been tested and play recorded Live Data& freeze frame. 8. Update Anyscan A30D can be conveniently updated via WIFI, you only need to tap Update, then select the software you need to update, which is as shown below:...
