- Page 1 Diagnosis System User Manual...
- Page 3 H6E -Intelligent Diagnosis System Declaration 1. This manual is designed for the usage of H6E, applying to H6E automotive diagnosis platform. No part of this manual can be reproduced, stored in a retrieval system or transmitted, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the prior written permission of Xtool.
-
Page 4: Table Of Contents
Interface of tablet ....................4 1.2.1 Top View ....................4 1.2.2 Bottom View ..................... 4 1.2.3 H6E Technical Parameters ................ 4 Chapter II. How to use H6E ....................6 Main Interface ..................... 6 2.1.1 Main Interface ................... 6 2.1.2 Interface Icon .................... 6 2.1.3 Interface Taskbar .................. -
Page 5: Chapter I．about H6E

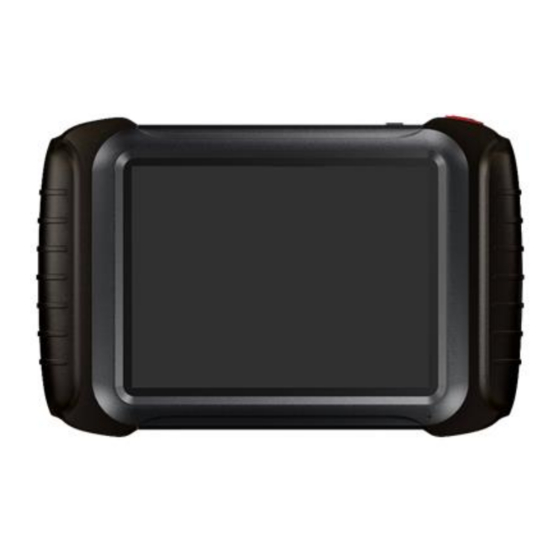

H6E -Intelligent Diagnosis System Chapter I．About H6E Appearance 1.1.1 Front view 1.1.2 Back view ①Camera ②Speaker ③Nameplate... -
Page 6: Interface Of Tablet
H6E -Intelligent Diagnosis System 1.2 Interface of tablet 1.2.1 Top View ③ ① ② ⑤ ④ ①USB3.0 interface: Wired data transmission ②Mini HDMI interface: Audio and video transfer ③DB15 interface: Extended reservation port ④DC charging port: Device Charging ⑤Power Button: Power on / off 1.2.2 Bottom View... - Page 7 H6E -Intelligent Diagnosis System Camera: rear camera, 8 millions pixels, with flash autofocus. Sensor: gravity sensor Audio input / output: microphone/speaker. Interface: USB3.0, DC charging port, MINI HDMI, DB15 interface. Battery: 10000mAh 3.7V lithium polymer battery Input voltage: +9~+12V DC Working temperature: -20℃...
-
Page 8: Chapter Ii. How To Use H6E
H6E -Intelligent Diagnosis System Chapter II. How to use H6E 2.1 Main Interface 2.1.1 Main Interface Interface Icon 2.1.2 Functional Buttons Functional Descriptions 【Diagnosis】Read vehicle diagnosis information 【Diagnose report】Read vehicle report... -
Page 9: Interface Taskbar
H6E -Intelligent Diagnosis System 【Setting】Language, unit, Bluetooth 【Xtool cloud】Online chatting 【One-click upgrade】Upgrade software 【Remote control】Xtooltech support center and function keys 2.1.3 Interface Taskbar Functional Buttons Descriptions 【Return to the previous interface】 【Decrease the volume】 【Increase the volume】... -
Page 10: Connection Diagnosis
【Click to record the data, click again to send your feedback to XTOOL service center.】 2.2 Connection Diagnosis 2.2.1 Vehicle Connection [①→②→④→③] 1) The H6E machine is connected to the vehicle through the main cable. 2) Turn on H6E machine and the car ignition switch to start diagnosis. -
Page 11: Precautions Before Use
H6E -Intelligent Diagnosis System ① H6E Tablet ② Main cable ③ Measured vehicle ④ OBDII-16 Adapter (Select other adapters if needed) 2.2.2 Precautions Before Use 1) Battery voltage range on the car: +9~+12V DC. 2) When the test harness is unplugged, the application hand pinch the head... - Page 12 H6E test menu. 6) It is forbidden to use the wiring harness which is not from Xtool to test the connection to avoid suffering unnecessary loss.
-
Page 13: Diagnosis
H6E -Intelligent Diagnosis System 2.3 Diagnosis 2.3.1 Menu selection 1) After the H6E machine is successfully connected to the vehicle, you can choose your vehicle type on the menu shown as follows: 2) According to your needs to choose [special function] [European car]... -
Page 14: Diagnostic Function
H6E -Intelligent Diagnosis System 2.3.2 Diagnostic Function Take "BMW car" as an example, click and enter into the following Diagnostic Menu page:... -
Page 15: Read Ecu
H6E -Intelligent Diagnosis System (The main function menu for different cars is slightly different, and the following options are included in the common main features menu) [Read ECU version information], [Read ECU], [Read DTCs], [Clear DTCs], [Read live data], [Actuation components test], [Special Functions] 2.3.3 Read ECU... -
Page 16: Read Dtcs
H6E -Intelligent Diagnosis System 2.3.4 Read DTCs Select the "Read fault code" function to read the fault code stored in the ECU, fault codes that are successfully read will be shown.▼ 2.3.5 Clear DTCs 1) Select the "Clear Code" icon to clear the fault codes that are read. -
Page 17: Read Live Data
H6E -Intelligent Diagnosis System 2) Click "Yes" to clear the fault codes. 2.3.6 Read live Data By reading the data stream function, it is possible to read the data value of the control unit. Click icon on the top, you can save the current data stream of this system for your better reference later. -
Page 18: Setting
H6E -Intelligent Diagnosis System 1) Return the menu to "dynamic diagnostic data" to see the "Action test" function menu, choose to display the system can be used to perform action test of the Actuator component menu. Tip: The "Action test" function is a part of the system to perform... -
Page 19: Diagnose Report
H6E -Intelligent Diagnosis System 2.5 Diagnose report 2.5.1 Diagnose report Diagnostic Report is used for re-viewing and printing the saved files, such as Live Data, Trouble Codes or pictures generated in the process of diagnosis, users also can view a record of which cars have been previously tested. It... -
Page 20: Data Playback
The Data playback feature lets you see which cars, which systems, and playback of recorded data streams and freeze frames. One-click upgrade The H6E device no longer requires a card to be upgraded, just open the app and click Upgrade Icon, it makes upgrade convenient and fast! -
Page 21: Xtool Cloud System
All vehicle maintenance technicians using our equipment can easily inquire the maintenance information we put on the cloud service platform, and communicate with other Xtool users on the Forum there. you have access to online database that provides you extensive repair and diagnostic techniques as well as vehicle maintenance programs. - Page 22 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 23 Shenzhen Xtooltech Co., Ltd Company address: 2nd Floor, Building No.2, Block 1, Excellence City, No.128, Zhongkang Road, Shangmeilin, Futian District, Shenzhen, China Factory address: 2/F, Building 12, Tangtou Third Industrial Zone, Shiyan Street, Baoan District, Shenzhen, China ServiceHotline: 400-880-3086/ 0755-21670995 Email: marketing@xtooltech.com Fax: 0755-83461644...
