- Page 1 X 1 0 0 P A D E L I T E Auto Key Programmer User Manual...
- Page 2 X100PAD Elite Diagnosis System Declaration 1. This manual is designed for the usage of X100PAD Elite, applying to X100PAD Elite smart automotive diagnosis platform. No part of this manual can be reproduced, stored in a retrieval system or transmitted, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the prior written permission of Xtool.
- Page 3 X100PAD Elite Diagnosis System Xtool X100PAD Elite Diagnosis System Main Unit Maintenance Avoid shaking or dismantling the unit as it may damage the internal components. Do not use hard or sharp objects to touch the LCD screen; do not use excessive force;...
-
Page 4: Table Of Contents
3. X100PAD Elite Technical Parameters................3 Chapter How to Use X100PAD Elite ..............4 1. X100PAD Elite Activation.................... 4 2. X100PAD Elite Main Interface and Functional Buttons Descriptions......5 2.1. Main Interface......................5 2.2. Sub-menu and Functional Buttons ................5 2.3. Toolbar Functional Buttons..................6 3. -
Page 5: Chapter I X100Pad Elite

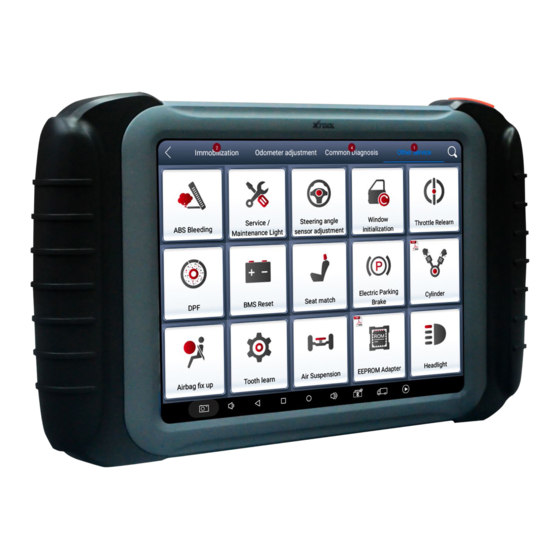

CHAPTER I about XlOOPAD Elite 1. Appearance 1.1. Front View 1.2. Back View .. . -
Page 6: Layout Of X100Pad Elite Tablet
X100PAD Elite Diagnosis System 2. Layout of X100PAD Elite Tablet 2.1. Top View of X100PAD Elite Tablet ③ ② ⑤ ④ ①USB3.0 interface: Wired data transmission ②Mini HDMI interface: Audio and video transfer ③DB15 interface: Extended reservation port ④DC charging port: Device Charging ⑤Power Button: Power on / off... -
Page 7: X100Pad Elite Technical Parameters
X100PAD Elite Diagnosis System 3. X100PAD Elite Technical Parameters Operating System Android Processor Quad-core 1.8GHz Processor Memory 2G RAM, 64G FLASH Display 8 inch IPS LCD with 1024x768p resolution Camera Rear camera, 5.0 Megapixel,AF with Flashlight Sensors Gravity Sensor, Ambient Light Sensor Interface USB3.0,DC charging port,DB15 interface,MINI HDMI... -
Page 8: Chapter How To Use X100Pad Elite
CHAPTER Ⅱ How to Use the X100PAD Elite . X100PAD Elite Activation 1.1. Please activate X100PAD Elite before you use it to test vehicles. And please connect Wi-Fi first. 1.2. Please fill in the company name and mailbox, (no need to fill in Phone number cause overseas phone number cannot receive the auth code.), then click OK to... -
Page 9: X100Pad Elite Main Interface And Functional Buttons Descriptions
TOOL XlOOPAD Elite Diagnosis System 2.XlOOPAD Elite Main Interface and Functional Buttons Descriptions 2.1. Main Interface XlOOPAD Tap on Elite application i c o n , the m ain interface a n d sub-menus w i l l be shown as below. -
Page 10: Toolbar Functional Buttons
X100PAD Elite Diagnosis System 2.2. Sub-menus and Function Buttons Functional Buttons Functional Descriptions 【Diagnosis】Read vehicle diagnosis information 【Diagnose report】Read vehicle report 【Setting】Language, unit, Bluetooth 【Xtool cloud】Online chatting 【One-click upgrade】Upgrade software 【Remote control】Xtooltech support center and function keys... -
Page 11: Vehicle Connection Diagnosis
3. Vehicle Connection Diagnosis 3.1. Vehicle Connection Test a. Turn on X100PAD Elite tablet b. Connect cables and X100PAD Elite in following order: ①→②→③→④ c. Switch on the ignition and tap on X100PAD Elite application to test vehicles. (Shown as follows) -
Page 12: Precautions Before Use
Headlights, air-conditioner, etc.), put accelerator pedal in released position, etc. 3.2.4. If users cann ot find the tested vehicle model or electronic control system in the X100PAD Elite test menu, they may need to update the software or consult Xtool technical service department. -
Page 13: Special Function And Diagnosis
X100PAD Elite Diagnosis System 4. Special function and Diagnosis 4.1. Menu Options 4.1.1. After the X100PAD Elite mainframe is connected to the vehicle via main test cable, Immobilization can be performed. The Immobilization interface is shown as below: 4.1.2. X100PAD Elite lists Instrument Cluster is adjust the historical data of the instrument and perform repair operations. -
Page 14: Test Functions
Europe will enter the European cars menu, selection for Asia will enter the Asian cars menu, and selection for America will enter the American cars menu. 4.1.4. Besides the usual system diagnostic functions, XTOOL also has developed a series of special diagnostic functions for certain vehicles as follows: 4.2. - Page 15 Users can then enter the nature of the problem and any other relevant information and send the form to the Xtool engineering department.
-
Page 16: Read Ecu
XlOOPAD Elite Diagnosis System 4.3. Read ECU This function is used to read ECU version information, which is the equivalent of "System Identification" or "System Information" in some electronic control systems. This will allow you to read ECU related software a n d hardware versions, models and production date of diesel engine, part number, etc. -
Page 17: Read Dtcs
X100PAD Elite Diagnosis System 4.4. Read DTCs Select Read Fault Codes to read the trouble codes stored in the ECU. The screen will show the trouble codes and their definition, shown below: Tip: In the process of diagnosis, if the device shows “System is OK” or “No Trouble Code”, it indicates that the ECU has not detected a fault in any of the circuits that it... -
Page 18: Settings
X100PAD Elite Diagnosis System 4.5.2. Click YES to confirm the operation, if the communication is normal, it will show “Trouble Codes has been Cleared Successfully” or “Trouble Codes Cleared”. Generally, users will need to re-read trouble codes after clearing them to confirm that the trouble codes have been cleared. -
Page 19: Xcloud
In our forum, but can also access various online databases of maintenance and Diagnostic skills and vehicle maintenance plans. 7. Update X100PAD Elite updates directly via the Internet using Wi-Fi or wired connection. To access The update application open the X100PAD Elite application and click UPDATE, shown Below. -
Page 20: Report
X100PAD Elite Diagnosis System 8. Report Report is used for viewing and printing the saved files, such as Live Data, Trouble Codes or pictures generated in the process of diagnosis, users also can view a record of which cars have been previously tested. It includes three parts: PDF Files, Pictures and Data Playback. -
Page 21: Remote
If users encounter problems and are not able to solve them, they can open this application and ask for remote assistance. How to get remote assistance from Xtool Technical Assistance Center: a. Open X100PAD Elite b. Click Remote and open the Team Viewer interface. Generate and display device ID. -
Page 22: Chapter Ⅲ How To Use Kc100
Steps as below: 1. Please use main cable and OBDII connector (or other relative connector) to connect between X100PAD Elite and your car’s OBD port. 2. Please use USB to mini USB cable to connect between X100PAD Elite and KC100. - Page 24 Jt'TOOL XlOOPAD Elite Diagnosis System 3. Please switch ignition on position, then e n t e r software as following steps: Immobilization- VW- 4th/5th Immobilizer System < Instrument Cluster Common D1agnos1s Other ;,erv1ce < VWV2802 Diagnostic function Read security code Program keys Program remote ECU Synchronization...
-
Page 25: Chapter Ⅳ Location Of Diagnostic Link Connectors On Different Vehicle Models
X100PAD Elite Diagnosis System If your car is Fourth immobilizer system, please click Fourth immobilizer system. If your car is Fifth Immobilizer system, please click Fifth Immobilizer system. It will detect your meter type automatically, if it does not detect successfully, you can choose your meter type manually. -
Page 26: Diagnostic Link Connectors Locations Of Various Vehicle Models
CHAPTER Ⅳ Location of Diagnostic Link Connectors on Different Vehicle Models 1. Diagnostic Link Connectors Locations of Various Vehicle Models *AUDI A6: the OBD plug is on the lower left side of the dashboard, use SMART OBDII-16 connector. *VW Bollywood 1.8: the OBD plug is below the console, use SMART OBDII-16 connector. - Page 27 *Benz C180: the OBD plug is on the left hand side of the engine bay, use Benz-38 connector. *Benz 300SEL 140 chassis: the OBD plug is on the left hand side of the engine bay, use Benz-38 connector. *GM Buick: the OBD plug is below the dashboard, use SMART OBDII-16 connector. *GM Buick GL8 : the OBD plug is below the dashboard, use SMART OBDII-16 connector.
- Page 28 *VW POLO: the OBD plug is below the dashboard, use SMART OBDII-16 connector. *BMW 735I: the OBD plug is in the right hands side of the engine bay, use BMW-20 connector. *VW Passat B5: the OBD plug is behind the gearlever and beside the parking brake lever.
-
Page 29: Location Diagram Of Vehicle Diagnostic Link Connectors
2. Location Diagram of Vehicle Diagnostic Link Connectors Location diagram of pick-up truck diagnostic link connectors: Location diagram of utility vehicles diagnostic link connectors: Link diagram of small car diagnostic link connectors: NOTE: Each vehicle manufacturer may use additional pins to diagnose a variety of systems. - Page 30 6. ISO 15765-4 defined CAN high 7. ISO9141 and ISO14230 defined K line 8. Manufacturer definition 9. Manufacturer definition 10. SAE J1850 bus negative 11. Manufacturer definition 12. Manufacturer definition 13. ISO 15765-4 defined CAN low 14. ISO9141 and ISO14230 defined L line 15.
