Summary of Contents for Xtool KC501

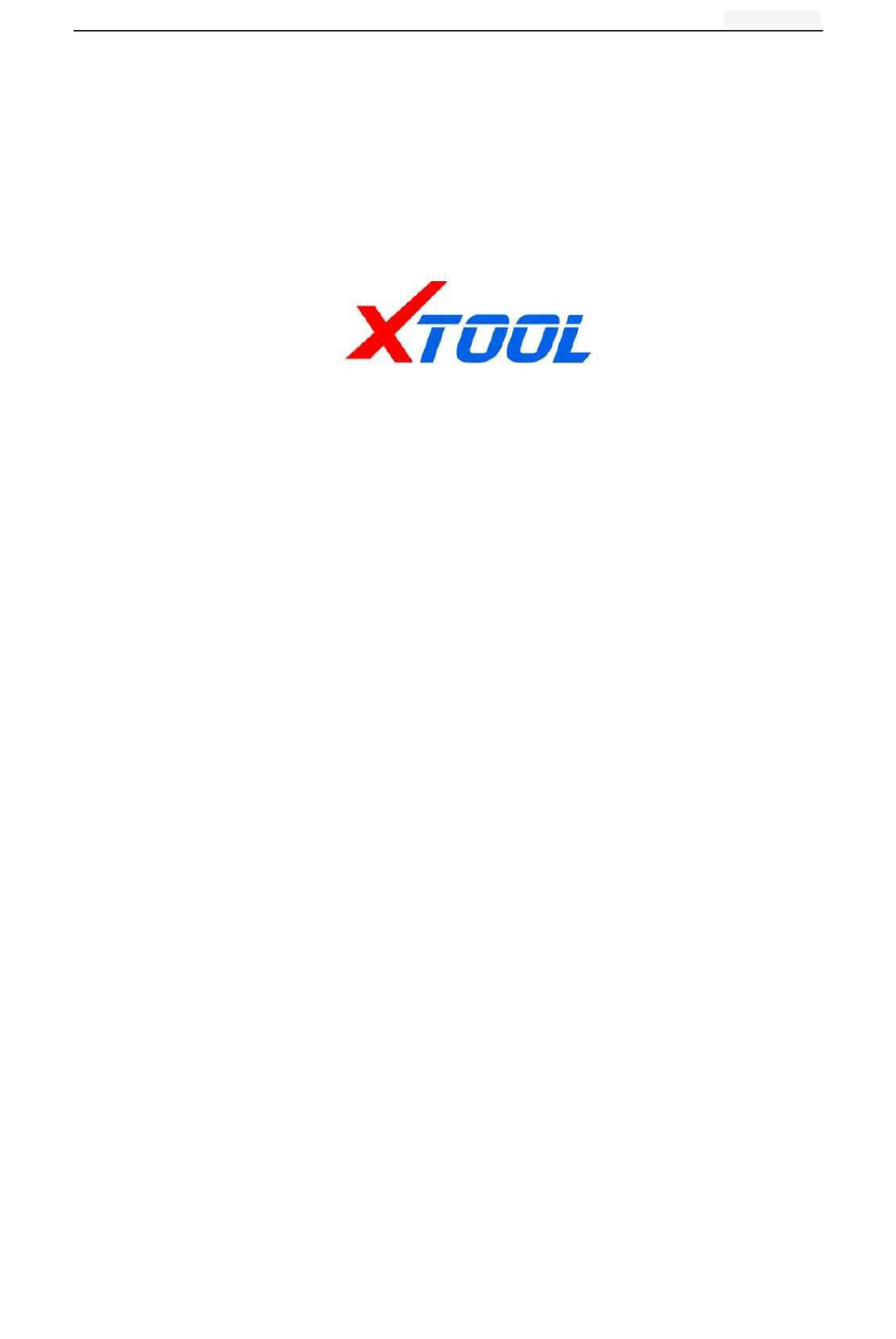

- Page 1 KC501 Key Programming [KC501 Key Programmer]...
- Page 2 KC501 Key Programming Trademark： Shenzhen Xtooltech Co., Ltd. has registered a trademark, and its logo is in countries where the trademark, service mark, domain name, icon and company name of Shenzhen Xtooltech Co., Ltd. have not yet been registered. Shenzhen Xtooltech Co., Ltd. declares its Registered trademark service marks, domain names, icons and company names still enjoy their ownership.
- Page 3 KC501 Key Programming changed without notice. After-sales service： Service Hotline(400-880-3086) Official website:http://www.xtooltech.com Users in other countries or regions, please contact your local dealer for technical support. Information： This product is only for use by professional and technical personnel in automobile maintenance.
-
Page 4: Table Of Contents
KC501 Key Programming CONTENTS 1. PRECAUTIONS AND WARNINGS ......4 2. PRODUCT DETAILS ..........4 2.1 PRODUCT DESCRIPTION ........4 2.2 PRODUCT SPECIFICATIONS ........ 5 2.3 PRODUCT APPEARANCE AND INTERFACES ..5 3. UPGRADE AND OVERHAUL ........6 3.1 PRODUCT UPGRADE ..........6 3.2 PRODUCT OVERHAUL .......... -
Page 5: Precautions And Warnings
Read and write data of on-board EEPROM chip; Read and write data of on-board MCU/ECU chip; The KC501 programmer needs to be used with the anti-theft related diagnostic equipment of Shenzhen Xtooltech Co., Ltd. , and can also be used with the PC-side programmer software. -
Page 6: Product Specifications

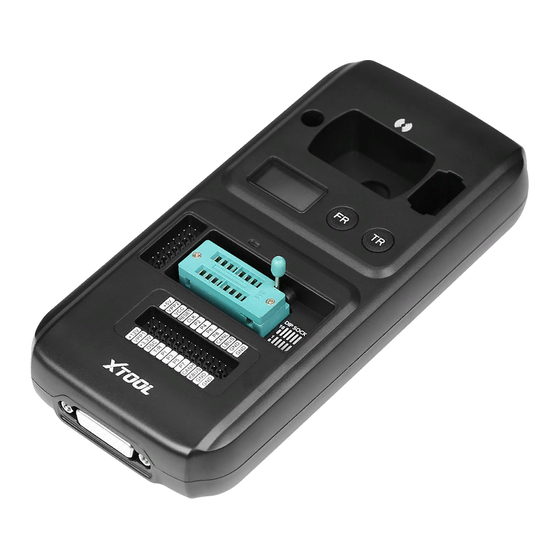

Appearance Size 177 mm* 85 mm* 32 mm Weight 0.32kg PRODUCT APPEARANCE AND INTERFACES KC501 The appearance of the programmer product is shown in the figure below: 1.DC Port: It provides 12V DC power supply. 2.USB Port: It provides data communication and 5V DC power supply. -
Page 7: Upgrade And Overhaul
2).Software update through KC501 PC software, the steps are as follows： a. Use a USB cable to connect KC501 to the USB port of the PC; b. Confirm that the LED indicator on the front panel of KC501 displays normally;... -
Page 8: Product Overhaul
PRODUCT OVERHAUL The following problems may be encountered when using this product: 1)．Wrong connection with anti-theft matching device An error occurred when KC501 was connected to the anti-theft matching device, please check the following items: (1)．Is KC501 authorized. (2). Whether the programmer indicator light is steady green.
