Diagnosis; Vehicle Connection - Xtool H6EB User Manual

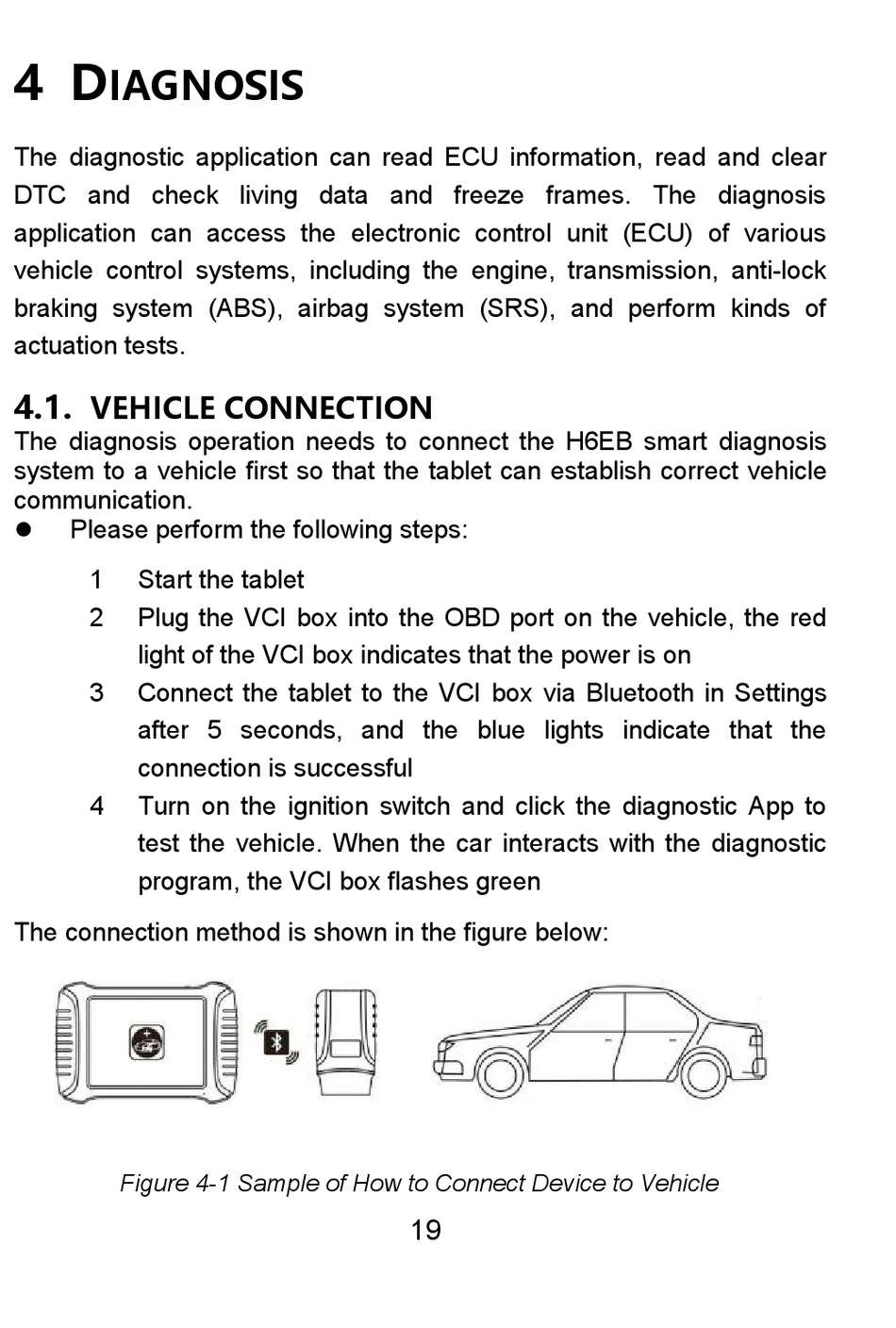

4 D
IAGNOSIS
The diagnostic application can read ECU information, read and clear
DTC and check living data and freeze frames. The diagnosis
application can access the electronic control unit (ECU) of various
vehicle control systems, including the engine, transmission, anti-lock
braking system (ABS), airbag system (SRS), and perform kinds of
actuation tests.
4.1.

VEHICLE CONNECTION

The diagnosis operation needs to connect the H6EB smart diagnosis
system to a vehicle first so that the tablet can establish correct vehicle
communication.
Please perform the following steps:

1 Start the tablet
2 Plug the VCI box into the OBD port on the vehicle, the red
light of the VCI box indicates that the power is on
3 Connect the tablet to the VCI box via Bluetooth in Settings
after 5 seconds, and the blue lights indicate that the
connection is successful
4 Turn on the ignition switch and click the diagnostic App to
test the vehicle. When the car interacts with the diagnostic
program, the VCI box flashes green
The connection method is shown in the figure below:
Figure 4-1 Sample of How to Connect Device to Vehicle
19
