HD900
Declaration
1. This manual is designed for the usage of HD900. No
part of this manual can be reproduced, stored in a
retrieval system or transmitted, in any form or by any
means
(electronic,
mechanical,
photocopying,
recording, or otherwise), without the prior written
permission of Xtool.
2. HD900 is just designed for the professional vehicle
repair or maintenance technicians.
3. Use the device only as described in this manual. The
user will be responsible solely for the after-effects of
violating the laws and regulations caused by using the
product or its data information, in this case Xtool will
not bear any legal responsibility.
4. Xtool shall not be liable for any incidental or
consequential
damages
or
for
any
economic
consequential damages arising from the accidents of
individual users and the third parties, misuse or abuse
of the device, unauthorized change or repair of the
device, or the failure made by the user not to use the
product according to the manual.
5. All information, specifications and illustrations in this
manual are based on the latest configurations and
functions
available at the time of printing. Xtool reserves the right
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Xtool HD900
Summary of Contents for Xtool HD900
- Page 1 HD900 Declaration 1. This manual is designed for the usage of HD900. No part of this manual can be reproduced, stored in a retrieval system or transmitted, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the prior written permission of Xtool.
- Page 2 8. Please visit www.xtooltech.com for more information on the HD900. 9. Xtool reserves the right for the final interpretation of this manual content. Precautions The HD900 work in 11V~36V voltage, please make sure the diagnostic socket on your vehicle export 11V~36V voltage.
- Page 3 AND go back to main menu, and then take out the connector. Be gently to avoid vibration or shock when operating HD900. When you stop using HD900, please take it out from the diagnosis port of the car. Ensure the temperature of operating environment is - 20℃ to 50℃.
-
Page 4: Table Of Contents
Chapter Ⅰ About HD900..........5 1. Appearance & Interfaces........5 2. Technical Parameters......... 7 Chapter Ⅱ Diagnose............8 1. Vehicle Connection Diagnosis......8 2. HD900 Main Interface........8 3. OBDII Diagnosis..........9 Chapter Ⅲ Setting............11 1. Language Setting..........11 2. Contrast Adjustment........12 3. -
Page 5: Chapter Ⅰ About Hd900

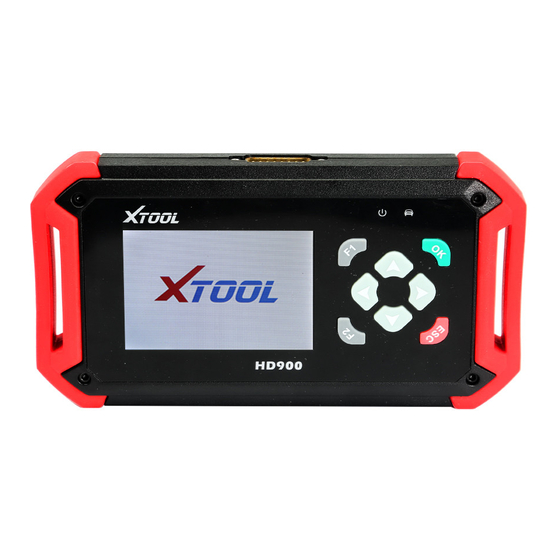

HD900 Chapter Ⅰ About HD900 1. Appearance & Interfaces (1) Appearance ① ②③ ④ The appearance of product is subject to practicality. Name Descriptions 3.5’’ TFT-LCD, showing Display screen ① testing options and results After power on, it will turn Power indicator ②... - Page 6 HD900 Up or Down Left or Right Exit or Back to previous ④ interface Special function key, Retrieve the keyboard and input the words Special function key, can be used as OK. (2) Top view： DB15 Port：Connect to the main...
-
Page 7: Technical Parameters
HD900 (3) Down view： Micro USB Port: Connecting PC USB2.0 port with mini-USB cable to update SW 2. Technical Parameters CPU: ARM 32bit CPU 72MHz RAM: 64K RAM Program Memory: 512K Flash Internal Memory: built-in 2GB TF card Input Voltage: DC 11~36V External Interface: DB15/ Mini USB Display: 3.5’’... -
Page 8: Chapter Ⅱ Diagnose
(1). Connect the DB15 connector of test cable to the HD900 main frame and the 6/9 pin connector to the vehicles DLC port. (Shown as follows) (2). Switch on the ignition and turn on HD900 to test vehicles. ① HD900 main frame ②... -
Page 9: Obdii Diagnosis
HD900 3. OBDII Diagnosis (1). Select “Function” in the main interface to do OBDII diagnosis. - Page 10 HD900 (2). Users can choose the protocol according to his vehicle for diagnosing.
-
Page 11: Chapter Ⅲ Setting
HD900 Chapter Ⅲ Setting Select “Options” in the main interface to enter the settings menu. 1. Language Setting Only English language. -
Page 12: Contrast Adjustment
HD900 2. Contrast Adjustment Select “Contrast” and press Left and Right to adjust the contrast; press OK to save settings. 3. Metric/English Units Select “Unit” and press Up and Down to choose unit; press OK to save settings. -
Page 13: Recording
HD900 4. Recording When testing the vehicles, you can record the diagnostic results and give feedback to the after-sales department of XTOOLTECH. Select “Recording” and choose Disable or Enable. -
Page 14: Information
HD900 5. Information Select “About” in the main interface to check the information, including the product serial number, hardware version, software version, password, etc. -
Page 15: Chapter Ⅳ Update
(3). Follow the instructions step by step to install the Upgrade Tool. 2. Software Updating (1). Connect the HD900 main frame to the computer via USB cable. (2). Open the Upgrade Tool, input the Product SN and Password, then click Login. (shown as below) - Page 16 HD900 (3). After login, you will see as below; click “(Un)Sel” to select the software and click “Upgrade” then it will update automatically.
