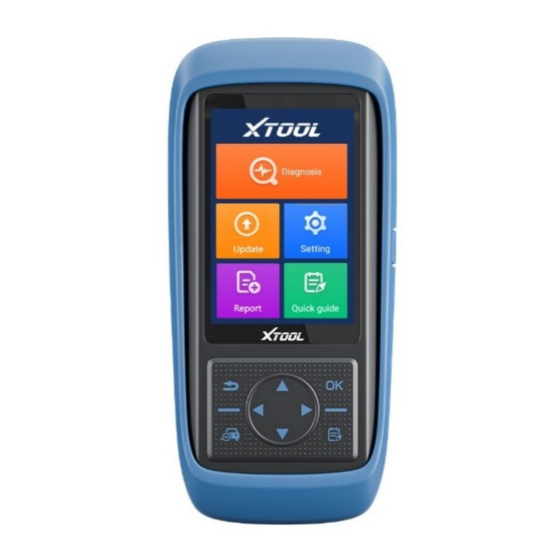

Xtool A30 Pro Quick Manual

Intelligent diagnostic unit
Hide thumbs Also See for A30 Pro:

Advertisement

Quick Links

Download this manual
Quick Guide
Xtool A30 Pro Intelligent Diagnostic Unit
Efficient
Smart
Portable
Please read the instruction carefully book before usage

Advertisement

loading
Need help?

Need help?

Do you have a question about the A30 Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Xtool A30 Pro

Summary of Contents for Xtool A30 Pro

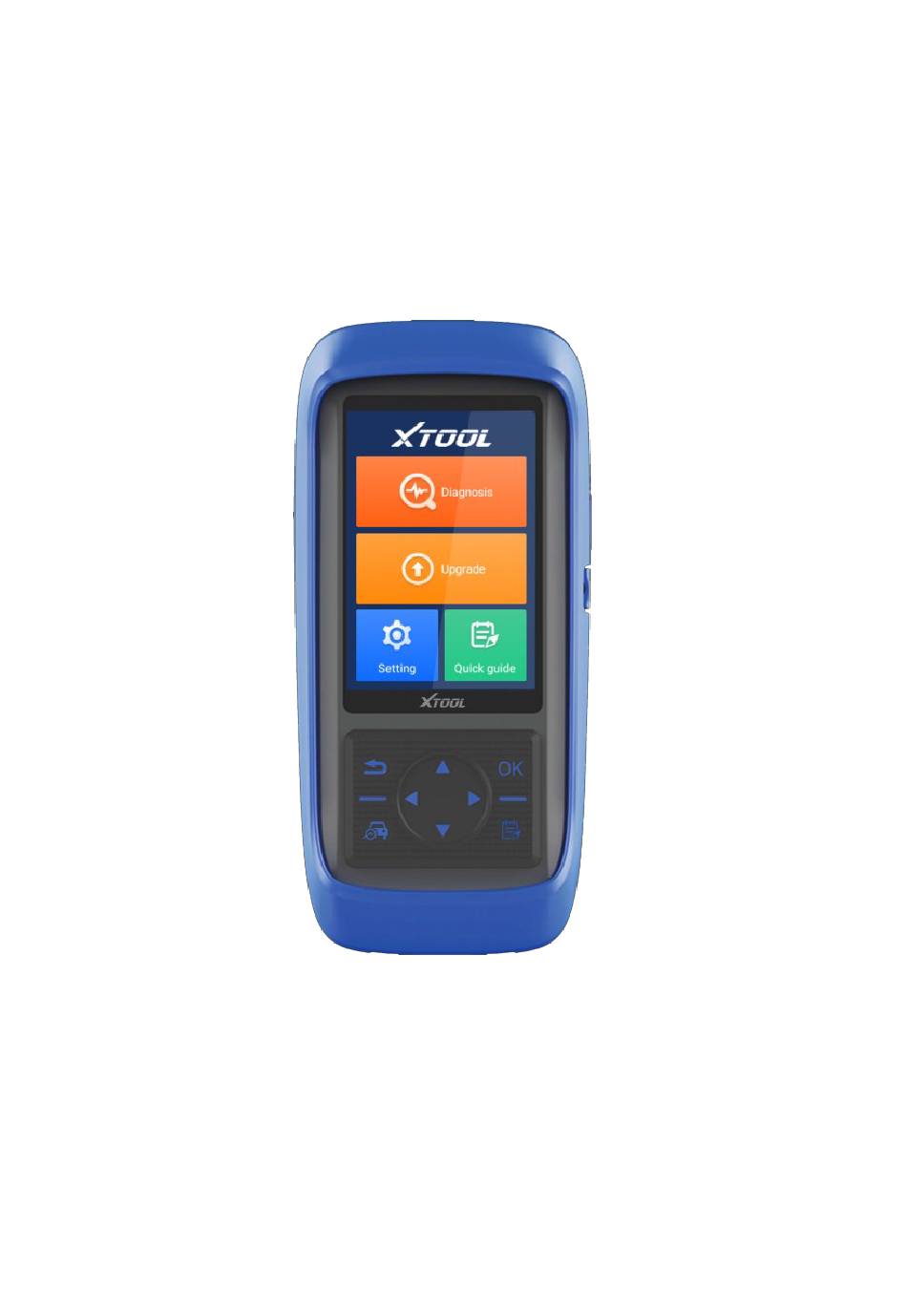

  • Page 1 Quick Guide Xtool A30 Pro Intelligent Diagnostic Unit Efficient Smart Portable Please read the instruction carefully book before usage...
  • Page 2 Other products and company name brand referred by this introduction book are still belong to original registered company. Anybody can’t use Xtool or other company brand, service mark, domain name, icon and company name without the written permission of owner.
  • Page 3 STATEMENT Copyright This introduction is designed for Xtool A30 Pro intelligent diagnostic unit and only apply to it. Any company or person can’t copy and backup this introduction book in any form (Electronic, mechanical, photocopy, record or other form) without written permission of Xtool.

  • Page 4: Safety Instruction

    STATEMENT product has higher reliability, but not exclude the loss and damage caused by customers technical matter, vehicle problem or other reason, Xtool assume no liability or responsibility for those. To know more about related products information, you can visit Shenzhen Xtooltech Co.,Ltd official website：...
  • Page 5 STATEMENT Wear the goggles accord with ANSI standard ⚫ Keep clothes, hair hand, tool, tester etc away from ⚫ running or calorific engine Before start engine, you should confirm parking ⚫ braking is working, put barrier in front wheels, and put gear shift lever in neutral gear or ppark, to avoid hurting people on the spot when start engine, vehicle speeds up suddenly...
  • Page 6 STATEMENT engine is running, don’t connect or disconnect the diagnostic equipment. Keep the diagnostic device dry and clean, away ⚫ from gasoline, water and grease. If necessary, use a clean cloth coated with a mild detergent to clean the surface of the device. Don’t operate the diagnostic equipment while ⚫...
  • Page 7 STATEMENT connection of the vehicle diagnostic socket is clean and safe. Don’t put the diagnostic device on the vehicle ⚫ distributor. Strong electromagnetic interference will cause damage to the device.
  • Page 8 QUICK GUIDE Quick Guide Product overview Page 1 In this part, you can know about the basic features of the product Connector/Button definition Page 5 In this part, you can know about the buttons of the product Product interface introduction Page 10 In this part, you can know about the function interface of the product...

  • Page 9: Chapter 1 Product Overview

    Headlight adjustment, maintenance light reset, EPB electronic brake, ABS automatic exhaust, fuel injector code, airbag repair, throttle matching, electronic steering matching, gearbox matching and other 12 special functions, powerful function. Xtool A30 Pro series of products are small and flexible in...
  • Page 10 QUICK GUIDE appearance and powerful in function, which can quickly and accurately help repair personnel locate faults and improve repair efficiency. If you want to know about relevant information of A30 Pro intelligent diagnostic unit, you can visit Shenzhen Xtooltech Co.,Ltd official website： http://www.xtooltech.com .

  • Page 11: Chapter 2 Product Specification

    SPECIFICATION Chapter 2 Product specification 2.1 Product appearance Xtool A30 Pro series intelligent diagnostic unit, The design with blue and black color is simple and terse; the body adopts a streamlined design and a large curvature frame for better grip; the back of the product adopts a protruding design that is more non-slip and safer；A30...
  • Page 12 SPECIFICATION VCI Front view Front view Back view...
  • Page 13 SPECIFICATION 2.2 Product interface and button definition...
  • Page 14 SPECIFICATION Charge Display state of charge Lamp LCD display Display function menu of product Cancel selection （ Or operation ） or Back return to previous menu Direction Via direction key to move choosing appoint menu Vehicle Open/switch vehicle diagnosis function diagnosis DB15 Reserved interface...
  • Page 15 SPECIFICATION 2.3 Product parameter ARM Cortex A7 Quad-Core，Basic frequency 1.2GHz Mali-400 MP2 GPU DDR3 1GB Storage EMMC 32GB 4 inch 320x480 Color touch display Display screen screen Working voltage 9~18V Battery 3000mAh built-in lithium battery Working temperature -20℃-60℃ Storage temperature -30℃-70℃...
  • Page 16 SPECIFICATION 2.4 OBD detection A30 Pro Host Main test line Vehicle...

  • Page 17: Chapter 3 Product Usage

    4. Start the test. Chapter 3 Product usage introduction 3.1 Product activation First use Xtool A30 Pro need activate device Steps：Connect WI-FI first, enter activation page, via hints to input cell phone number to verify, after receiving message authentication code, input the code and finish the verification.
  • Page 18 INTRODUCTION 2. In order to improve Xtool A30 Pro,we will updates the software for a period of time, when the diagnosis interface popups tooltip, click upgrade option. 3.2 Product interface introduction After booting, main interface and submenu as shown below.
  • Page 19 INTRODUCTION Main interface and submenu function keys specification 【Function key】 【Function specification】...
  • Page 20 You can set the language, unit and system related settings on this interface, etc. Xtool A30 Pro quick guide 3.3 Settings Select the "Settings" menu to open the setting interface. You can set the language, unit and system-related...
  • Page 21 INTRODUCTION options on this interface. The following 8 options as shown below:...
  • Page 22 INTRODUCTION ①Language：Please select the language according to the device configuration, otherwise the diagnosis interface menu will not be displayed.
  • Page 23 INTRODUCTION ②Unit： Select the unit of measurement, users can select metric or imperial system.
  • Page 24 INTRODUCTION ③ Wi-Fi ： Choose a suitable wireless network connection to perform data transmission and Internet access Open/Connect Wi-Fi...
  • Page 25 INTRODUCTION ④Display/Lightness：Users can adjust the display’s brightness and the time interval of the host's automatic standby according to their own conditions to achieve better experience.
  • Page 26 INTRODUCTION ⑤Bluetooth：You can select the Bluetooth you need to connect here.
  • Page 27 INTRODUCTION ⑥Date/Time：User can set the date and time of the system here...
  • Page 28 INTRODUCTION Set date...
  • Page 29 INTRODUCTION Set time...
  • Page 30 INTRODUCTION ⑦Other settings：Users can clean up the system cache and restore factory settings Notice: Before clearing the cache and restoring the factory settings, please confirm whether the required information has been saved or...
  • Page 31 INTRODUCTION backed up, if the losses caused by this, Xtool assume no liability or responsibility for that. ⑧About：Users can view the serial number here, RAM and other related information of the device.
  • Page 32 INTRODUCTION ⑨Tool tip：Pull down the top of the screen to call out the notification bar, you can view the current system time, power, Bluetooth and wireless connection information, and quickly adjust the lightness of the display...
  • Page 33 INTRODUCTION 3.4 Upgrade The Xtool A30 Pro provides one-click upgrade to renew software quickly to experience the latest function; Notice: when a new software is released, an update notice will be shown on screen, customer can choose to upgrade or not.
  • Page 34 INTRODUCTION 3.5 Diagnosis This function is the core module of Xtool A30 Pro, which contains 5 normal and 12 special diagnosis functions. Customer can use these functions to solve the practical problem quickly and precisely.
  • Page 35 INTRODUCTION 3.5.1 VIN Identification According to practical requirement, user can choose to automatic identification, or manual input the car VIN code...
  • Page 36 INTRODUCTION 3.5.2 Vehicle Selection The Xtool A30 Pro supports 98% of the car on the market from Asia, Domestic (China), America, and Europe. According to needs, user can choose vehicle model for diagnosis，or click on the search icon in the...
  • Page 37 INTRODUCTION 3.5.3 Demo This function is used for demonstration. User can view all of the functions in Xtool A30 Pro without changing any settings.
  • Page 38 INTRODUCTION 3.5.4 Normal Function Menu There will be some differences among different vehicle models. Xtool A30 Pro will enter diagnose function after confirming vehicle model. The normal function includes reading ECU version information, Read ECU code, Read fault code, Read freeze frame, Quick clear codes, Read live data, and Reset control unit.
  • Page 39 INTRODUCTION...
  • Page 40 INTRODUCTION 2） Read Fault Code This function allows user to read the fault code stored in the electronic control ECU. When the fault code is read, the screen will display it and its definition.
  • Page 41 INTRODUCTION 3） Read Freeze Frame This function allows user to read the trouble codes that are stored in the ECU at the moment, when vehicle has faults.
  • Page 42 INTRODUCTION 4） Quick Clear Codes This function allows user to clear current and historical trouble codes memory in ECU. The trouble codes cannot be erased without eliminating the related fault. If a problem is not solved, the related code will remain, and be stored in ECU, which leads to it can by read by diagnostic.
  • Page 43 INTRODUCTION been cleaned...
  • Page 44 INTRODUCTION 5） Read Live Data This function allows user to read the parameters of the system on operating condition, such as oil pressure, temperature, engine speed, fuel oil temperature, coolant temperature, intake air temperature, etc. By analysing these parameters, user can find out which part works abnormally, and narrow maintenance scope.
  • Page 45 INTRODUCTION Function Select...
  • Page 46 INTRODUCTION Read live data...
  • Page 47 INTRODUCTION 6） Reset Control Unit This function allows user to figure out whether a specific subsystem or component in the car works well or not, and to make the tester outputs function. (This picture is only for reference)
  • Page 48 The special function is only avaliable for specified vehicle models. There will be some differences among different vehicle models. Xtool A30 Pro, in addtion to the normal diagnostic service, is equipped with considerable special functions, including BMS, Exhaust after treatment, Tire pressure...
  • Page 49 INTRODUCTION...
  • Page 50 INTRODUCTION 3.6 Quick Guide Xtool A30 Pro provides online user manual, which could be used to learning the product function at any time. User can open Qucik Guide by click the menu icon on screen, or press button on the bottom right.
  • Page 51 INTRODUCTION...
  • Page 52 INTRODUCTION Shenzhen Xtooltech Co., Ltd Company address: 2nd Floor, Building No.2, Block 1, Excellence City, No.128, Zhongkang Road, Shangmeilin, Futian District, Shenzhen, China Factory address: 2/F, Building 12, Tangtou Third Industrial Zone, Shiyan Street, Baoan District, Shenzhen, China Service Hotline: 400-880-3086/ 0755-21670995 Email: marketing@xtooltech.com Fax: 0755-83461644 Website: www.xtooltech.com...
