Altronix P1MM, P1SM10, P1AB2K and P1GCE are hot-pluggable SFP fiber transceiver modules and are readily
usable with all Altronix Spectrum fiber optic equipment for 1Gb transmission rates.
P1MM
For use with Multi-Mode Fiber for distances up to 550m.
P1SM10 For use with Single-Mode Fiber for distances up to 10km.
P1AB2K For use with Single Strand Single-Mode Fiber for distances up to 2km.
P1GCE For use with CAT5e or better for distances up to 100m.

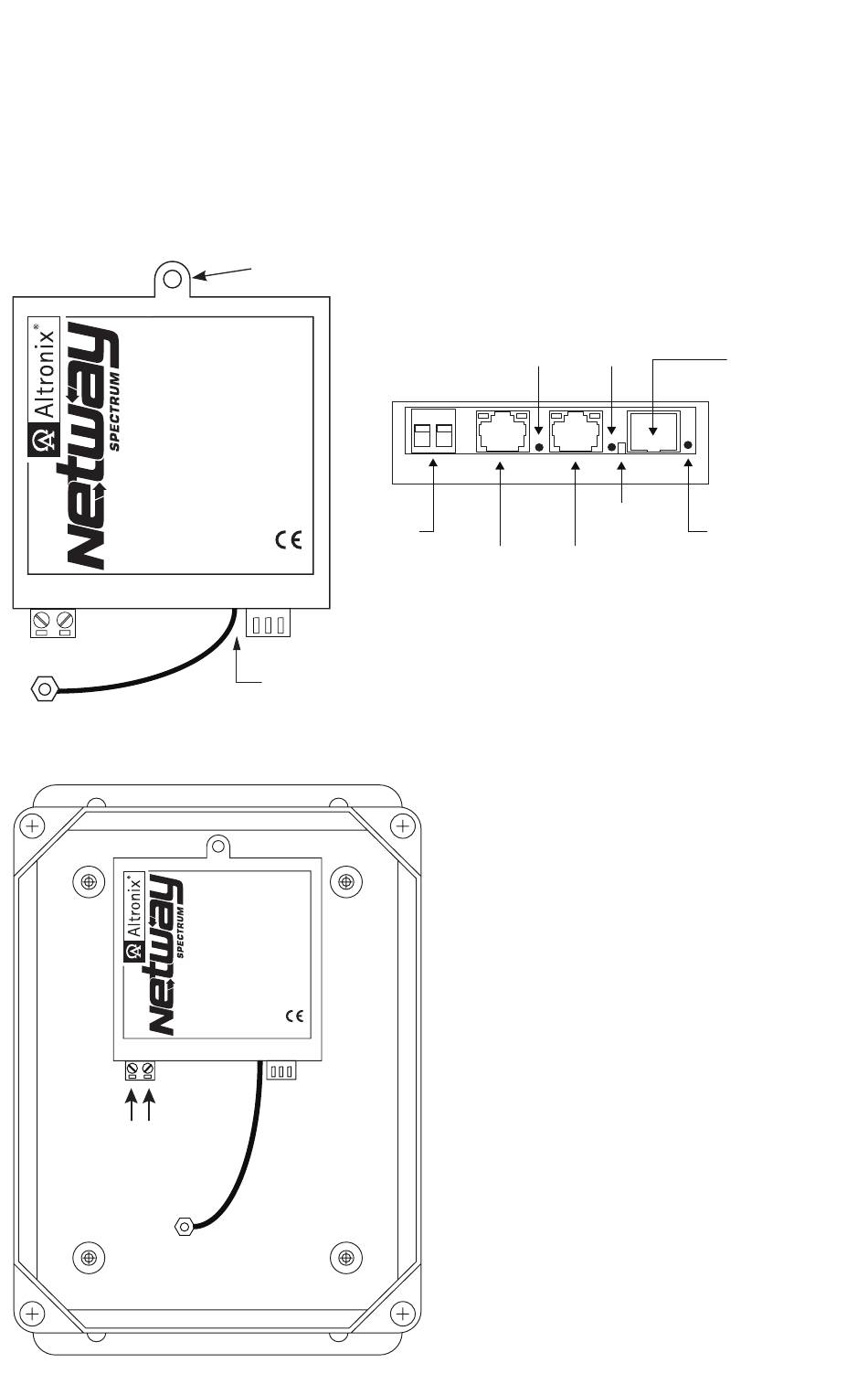

Fig. 1 - NetWaySP2P Configuration
NetWaySP2P
2-Port Media Converter/Injector
Input:
Output: IEEE 802.3at (30W) and
48-56VDC PoE+
-- Input + Output
Fig. 1b
Fig. 2 - NetWaySP2PWPN Configuration
48-56VDC
-- Input + Output
48-56VDC
-- Input +
NetWaySP2P Series Installation Guide

Recommended Altronix SFP Modules:

––––––––––––––––––––––––––––––––––––––––––––––
Fig. 1a
Brooklyn, NY, U.S.A.
www.altronix.com
48–56VDC
IEEE 802.3af (15.4W)
compliant.
PoE+ Fiber
Output SFP Signal
Optional Earth Ground
If needed, insert approx 0.25" into this location until secured in the ground terminal.
––––––––––––––––––––––––––––––––––––––––––––––
Brooklyn, NY, U.S.A.
www.altronix.com
NetWaySP2P
2-Port Media Converter/Injector
Input:
48–56VDC
Output: IEEE 802.3at (30W) and
IEEE 802.3af (15.4W)
compliant.
PoE+ PoE+ Fiber
Output SFP Signal
Ground
-- +
48VDC to
56VDC
Input
Structured Cables to
PoE Devices
PoE LEDs indicate
PoE present
Ground
Terminal
One (1) Gb
SFP port
for Fiber
SFP LED
Indicates
data connection
