3-Port Ethernet over Fiber PoE+ Hardened Switches
Installation Manual

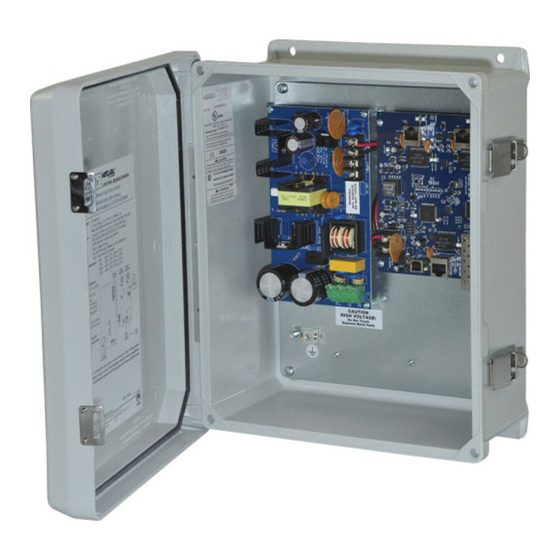

NetWaySP3WP
- Includes Fiber Optic SFP 1G Link, 3-port PoE+ switch and power supply.
- NEMA4/4X, IP66 rated Outdoor enclosure.
NetWaySP3WPX
- Includes Fiber Optic SFP 1G Link, 3-port PoE+ switch and power supply.
- NEMA4/4X, IP66 rated Outdoor enclosure.
- Accommodates up to four (4) 12VDC/4AH batteries.
NetWaySP3X
- Includes Fiber Optic SFP 1G Link, 3-port PoE+ switch and power supply.
- NEMA1 rated Indoor enclosure.
I.T.E. 43KC
DOC#: NetWaySP3 Rev. 020917
NetWaySP3WPN
- Includes Fiber Optic SFP 1G Link and 3-port PoE+ switch
(uses external power supply).
- NEMA4/4X, IP66 rated Outdoor enclosure.
NetWaySP3PL
- Includes Fiber Optic SFP 1G Link, 3port PoE+ switch and power supply.
- Backplane version.
NetWaySP3B
- Fiber Optic SFP 1G Link and 3-port PoE+ switch, board only.
Embedded
More than just power.™
™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix NetWaySP3WP
Summary of Contents for Altronix NetWaySP3WP
- Page 1 Embedded ™ 3-Port Ethernet over Fiber PoE+ Hardened Switches Installation Manual NetWaySP3WP NetWaySP3WPN - Includes Fiber Optic SFP 1G Link, 3-port PoE+ switch and power supply. - Includes Fiber Optic SFP 1G Link and 3-port PoE+ switch - NEMA4/4X, IP66 rated Outdoor enclosure.
-
Page 2: Agency Listings
Overview: Altronix NetWay Indoor/Outdoor Ethernet over Fiber PoE+ Hardened Switches provide a 1Gb SFP port and three (3) PoE+ (30W) ports or up to two (2) Hi-PoE (60W) ports, passing data and power to PoE/PoE+ compliant devices. Cameras/edge devices may be located up to 100m from the unit. Features also include an integral battery charger for applications requiring backup and embedded LINQ Technology to monitor, control, and report power and diagnostics from anywhere. -
Page 3: Installation
Note: When batteries are not used, a loss of AC will result in the loss of output voltage. 6. Please ensure that the cover is secured with: key lock and screws for NetWaySP3X, security bolt for NetWaySP3WP/NetWaySP3WPN, screw lock down for NetWaySP3WPX. www.altronix.com... -
Page 4: Factory Default Settings
2.6 lbs. (1.18 kg) 4.0 lbs. (1.81kg) NetWaySP3B 0.25 lbs. (0.11 kg) 0.75 lbs. (0.34kg) Configuring Units for Network Connection Please be sure to visit altronix.com for latest firmware and installation instructions Factory Default Settings • IP Address: 192.168.168.168 •... -
Page 5: Heartbeat Timer
Continue holding the button until the LEDs on board go through the start up cycle, then release the button. 3. The unit returns to the original factory settings. Fig. 2 Factory Reset www.altronix.com - 5 - NetWaySP3WP / SP3WPN / SP3WPX / SP3X / SP3PL / SP3B... -
Page 6: Typical Applications
Input Voltage Selection Switch Fig. 3a IP PoE/PoE+ Device or Fiber to NetWaySP1A Switch Input Voltage To Stand-by To Input of Selection Switch Batteries NetWaySP3B board www.altronix.com - 6 - NetWaySP3WP / SP3WPN / SP3WPX / SP3X / SP3PL / SP3B... - Page 7 44VDC and leave an approximate 2 volts for safety and flexibility. IP PoE/PoE+ Device or NetWaySP1A Composite Cable Fiber Switch 48-55V UL Listed ITE Power Supply Carefully observe polarity www.altronix.com - 7 - NetWaySP3WP / SP3WPN / SP3WPX / SP3X / SP3PL / SP3B...
-
Page 8: Wall Mount Installation
Pole Mounting Using Optional Pole Mount Kit PMK1 (not included): This installation should be made by qualified service personnel. This product contains no serviceable parts. PMK1 is intended for use with Altronix outdoor rated power supplies or accessories housed in WP1, WP2, WP3, WP4, and WP5 enclosures. Brackets are designed for use with the Wormgear Quick Release Straps (2 included). - Page 9 0.75” 0.75” (31mm) 11.0” (279mm) (19mm) (19mm) 0.9375” 1.40” (24mm) 1.40” (36mm) (36mm) 5.10” 5.10” (130mm) (130mm) 13.0” (330mm) 5.10” (130mm) 6.5625” (167mm) 0.9375” (24mm) www.altronix.com - 9 - NetWaySP3WP / SP3WPN / SP3WPX / SP3X / SP3PL / SP3B...
- Page 10 (H x W x D approx.) 10.75” x 8.875” x 2.375” (273.1mm x 225.4mm x 60.3mm) 8.875” (225.4mm) 8.25” (209.5mm) 0.25” (6.4mm) 10.25” 10.75” (260.3mm) (273.1mm) www.altronix.com - 10 - NetWaySP3WP / SP3WPN / SP3WPX / SP3X / SP3PL / SP3B...
- Page 11 NetWaySP3WP - Mechanical Drawing and Dimensions (H x W x D approx.): 13.31” x 11.31” x 5.59” (338.1mm x 287.3mm x 142mm) 1.61” (40.9mm) 11.31” 10.75” (273.1mm) 3.96” (287.3mm) (100.6mm) 8.25” (209.6mm) 10.00” (254mm) 13.50” 12.00” 10.25” (342.9mm) (304.8mm) (260.4mm) 12.75”...
- Page 12 Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IINetWaySP3WP / NetWaySP3WPN / NetWaySP3WPX / NetWaySP3X / NetWaySP3PL / NetWaySP3B E08Q www.altronix.com...
