Fiber Solution
NetWaySP41BT3 Series
4-port Hardened 360W 802.3bt
4PPoE Switches (Layer 2)
Models Include:
NetWaySP41BTWP3
- 4-port Hardened 802.3bt 4PPoE Switch
and Power Supply/Charger
- NEMA4/4X, IP66 rated Outdoor enclosure.
NetWaySP41BTWPX3
- 4-port Hardened 802.3bt 4PPoE Switch
and Power Supply/Charger
- NEMA4/4X, IP66 rated Outdoor enclosure.
- Accommodates up to four (4)
12VDC/4AH batteries.
Installation Guide
DOC#: NetWaySP41BT3 Rev. 021324
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
NetWaySP41BTX3
- 4-port Hardened 802.3bt 4PPoE Switch and
Power Supply/Charger
- NEMA1 rated Indoor enclosure.
NetWaySP41BTPL3
- 4-port Hardened 802.3bt 4PPoE Switch
and Power Supply/Charger
- Backplane version.
More than just power.
TM
Advertisement
Table of Contents
Related Manuals for Altronix netway SPECTRUM NetWaySP41BT3 Series
Summary of Contents for Altronix netway SPECTRUM NetWaySP41BT3 Series
- Page 1 Fiber Solution NetWaySP41BT3 Series 4-port Hardened 360W 802.3bt 4PPoE Switches (Layer 2) Models Include: NetWaySP41BTX3 NetWaySP41BTWP3 - 4-port Hardened 802.3bt 4PPoE Switch and - 4-port Hardened 802.3bt 4PPoE Switch Power Supply/Charger and Power Supply/Charger - NEMA1 rated Indoor enclosure. - NEMA4/4X, IP66 rated Outdoor enclosure. NetWaySP41BTPL3 NetWaySP41BTWPX3 - 4-port Hardened 802.3bt 4PPoE Switch...
-
Page 2: Table Of Contents
Recommended Altronix SFP Modules ........ -
Page 3: Overview
Overview: Altronix NetWaySP41BT3 Series Hardened 802.3bt 4PPoE Layer 2 Switches are equipped with two (2) 1Gb SFP ports and four (4) 802.3bt compliant Ethernet ports rated at 90W each, with 360W total power. For managed switches, refer to NetWaySP4BT3 Series. -
Page 4: Installation Instructions
(lithium iron phosphate), lead acid or gel type. If batteries are housed in a weather-proof enclosure (NetWaySP41BTWP3, NetWaySP41BTWPX3), it must be properly ventilated. Use Altronix Vent2 kit. Note: When batteries are not used, a loss of AC will result in the loss of output voltage. -
Page 5: Technical Specifications
Technical Specifications: Parameter Description Number of Four (4) 10/100/1000 Mbps Ethernet ports rated at 90W each. Ports IEEE 802.3af, 802.3at, 802.3bt compliant. Two (2) Gigabit SFP Ports. Input Power 115VAC, 60Hz, 3.5A or 230VAC, 50/60Hz, 2A. Requirements Operating Ambient Temperature: 360W: –... -
Page 6: Wall Mount Installation

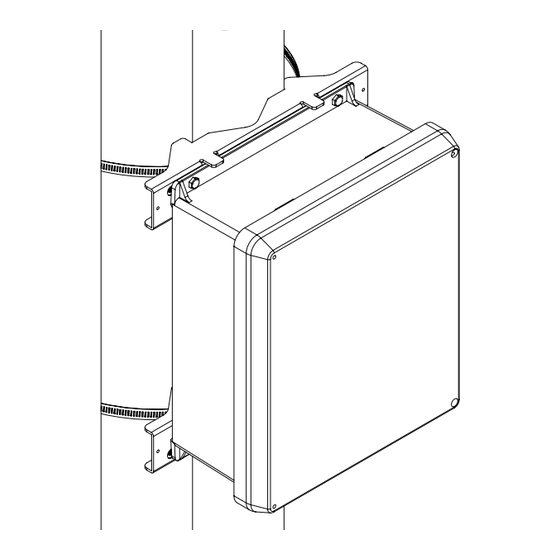

This installation should be made by qualified service personnel. This product contains no serviceable parts. PMK1 and PMK2 outdoor pole mount kits are designed to simplify the installation of Altronix outdoor rated power supplies and accessories housed in models WP1, WP2, WP3 and WP4 NEMA rated enclosures. PMK1 and PMK2 can be mounted on 2”... - Page 7 Notes: NetWaySP41BT3 Series Installation Guide - 7 -...
- Page 8 Notes: - 8 - NetWaySP41BT3 Series Installation Guide...
-
Page 9: Mechanical Drawings And Dimensions
NetWaySP41BTWP3 Mechanical Drawing and Dimensions (H x W x D approx.): 13.31” x 11.31” x 5.59” (338.1mm x 287.3mm x 142mm) FRONT VIEW RIGHT SIDE VIEW 11.31” (287.3mm) 3.96” (100.6mm) FRONT VIEW COVER REMOVED END VIEW 10.75” (273.1mm) 10.00” (254mm) STAINLESS STEEL PIANO HINGE 8.25”... - Page 10 NetWaySP41BTWPX3 Mechanical Drawing and Dimensions (H x W x D approx.): 17.53” x 15.3” x 6.67” (445.3mm x 388.6mm x 169.4mm) FRONT VIEW RIGHT SIDE VIEW 1.67” (42.4mm) 15.3” (388.6mm) 5.00” (127mm) 316 STAINLESS STEEL PADLOCK LATCH FRONT VIEW COVER REMOVED ATTACHED WITH RIVETS.
- Page 11 NetWaySP41BTX3 Mechanical Drawing and Dimensions (H x W x D approx.): 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.6mm) 1.40” 4.85” (123.2mm) 4.85” (123.2mm) 1.40” (35.6mm) (35.6mm) 1.20” (30.5mm) 0.75” 0.75” 12.5” (317.5mm) 1.20” 1.20” (19.1mm) (19.1mm) (30.5mm) (30.5mm) 11.0”...
- Page 12 10.75” x 8.875” x 2.375” (273.1mm x 225.4mm x 60.3mm) 8.875” (225.4mm) 8.25” (209.5mm) 0.25” (6.4mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty...
