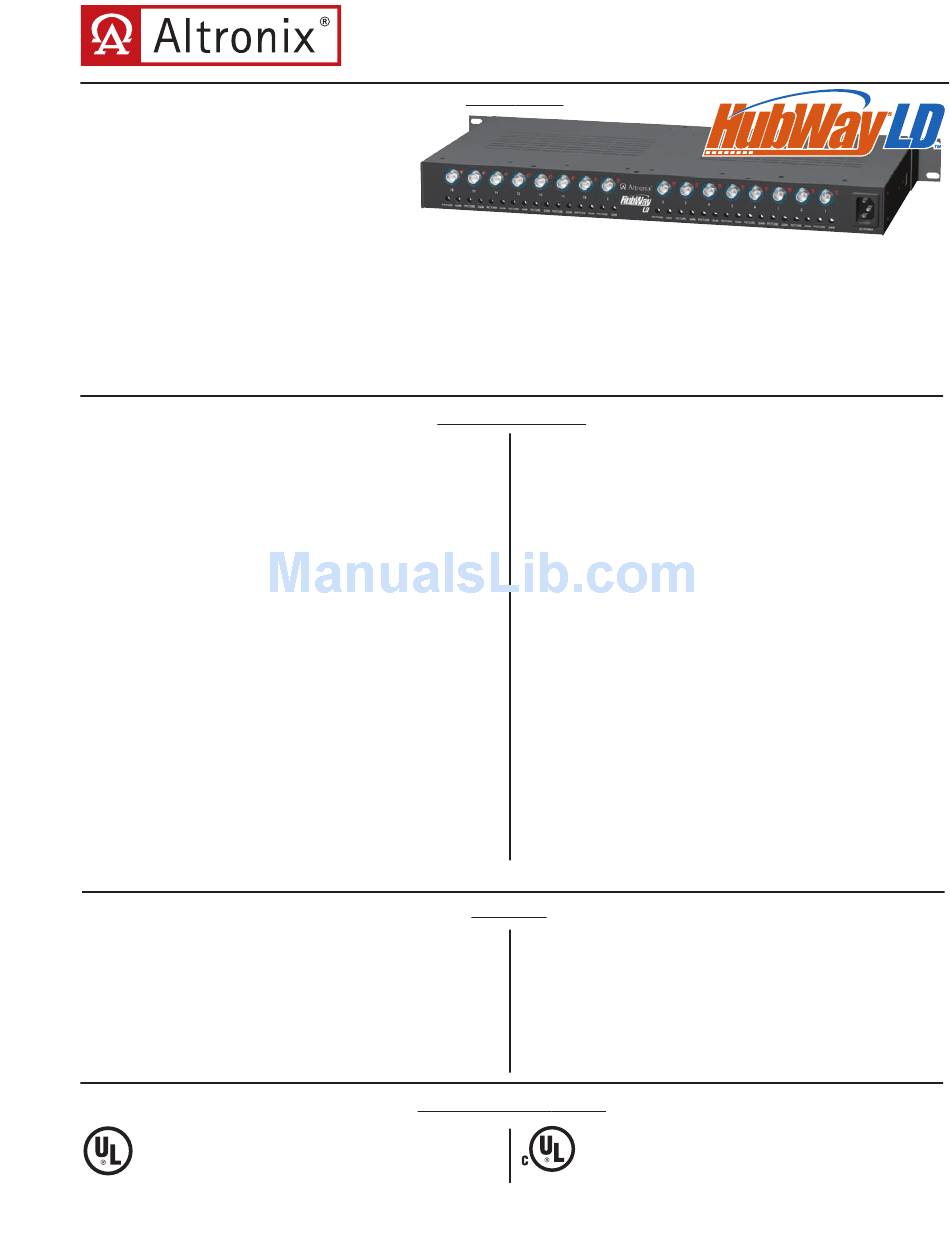

Altronix HubWayLD16CD Active UTP
Transceiver Hub w/Integral Camera Power
transmits UTP video, RS422/RS485 data
and power over a single CAT-5 or higher
structured cable. Unit provides 16 camera
channels in a space saving 1U EIA 19" rack mount chassis which
may be rack, wall or shelf mounted. Video transmission range is up to 3000 ft. max. per channel. Units are compati-
ble with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv, HubWayDv or HubWayDvi Video
Balun/Combiners. In addition, the unit features individually selectable 24VAC or 28VAC PTC protected outputs
with surge suppression. An optional HubSat4D Passive UTP Transceiver Hub with Integral Camera Power can be
used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable
back to the HubWayLD16CD. In addition, the HubSat4D provides power to these cameras locally to eliminate the
possibility of voltage drop associated with long cable runs.
Input:
• 115VAC 60Hz, 3 amp.
• Primary fuse (internal) is rated at 5 amp/250V.
Video:
• Sixteen (16) channels of video over twisted pair
up to a distance of 3000 ft. per channel.
• Sixteen (16) 75 ohm video outputs.
Data:
• RS422/RS485 data inputs.
Power:
• Individually selectable 24VAC or 28VAC power
outputs with OFF position.
• Unit provides up to 1 amp max. per channel not to
exceed a total of 10 amp (300VA) maximum current.
• Class 2 Rated power limited outputs.
• PTC protected outputs are rated @ 1 amp
per channel.
• Surge suppression.
Visual Indicators:
• AC input power indicator.
• Video signal and power LED indicators.
HubWayLD16CD
Active UTP Transceiver Hub with Integral Camera
Power. Video Balun/Combiners not included.
HubWayLD162CD
Active UTP Transceiver Hub with Integral Camera
Power with sixteen (16) HubWayAv Video
Balun/Combiners.
UL Listed for Commercial CCTV Equipment
(UL 2044).
®
HubWay LD16CD Active UTP Transceiver Hub
with Integral Camera Power

Overview

Specifications

Features:
• Picture and Gain control.
• Illuminated master power disconnect circuit breaker
with manual reset.
• IEC 320 - 3-wire grounded line cord (detachable).
• Unit can be rack, wall or shelf mounted.
• 1U EIA 19" rack mount chassis.
Accessories:
• Optional HubSat4D allows transmission of up to
four (4) video signals over a single CAT-5 or higher
structured cable.
• Video Balun/Combiners:
- HubWayAv - for use with 24VAC cameras.
- HubWayDv - for use with 12VDC cameras.
- HubWayDvi - for use with 12VDC
Shipping Weight (approximate):
- HubWayLD16CD: 22.15 lbs.
- HubWayLD162CD: 23.55 lbs.
- HubWayLD163CD: 24.55 lbs.

Models

HubWayLD163CD
Active UTP Transceiver Hub with Integral Camera
Power with sixteen (16) HubWayDv Video
Balun/Combiners.

Agency Approvals

cameras without isolation.
CUL Listed - CSA Standard C22.2 No.1-04,
Audio, Video and Similar Equipment.
Rev. DSHubWayLD16CD - E20I
